How to Use ESP32-S3 Waveshare: Examples, Pinouts, and Specs

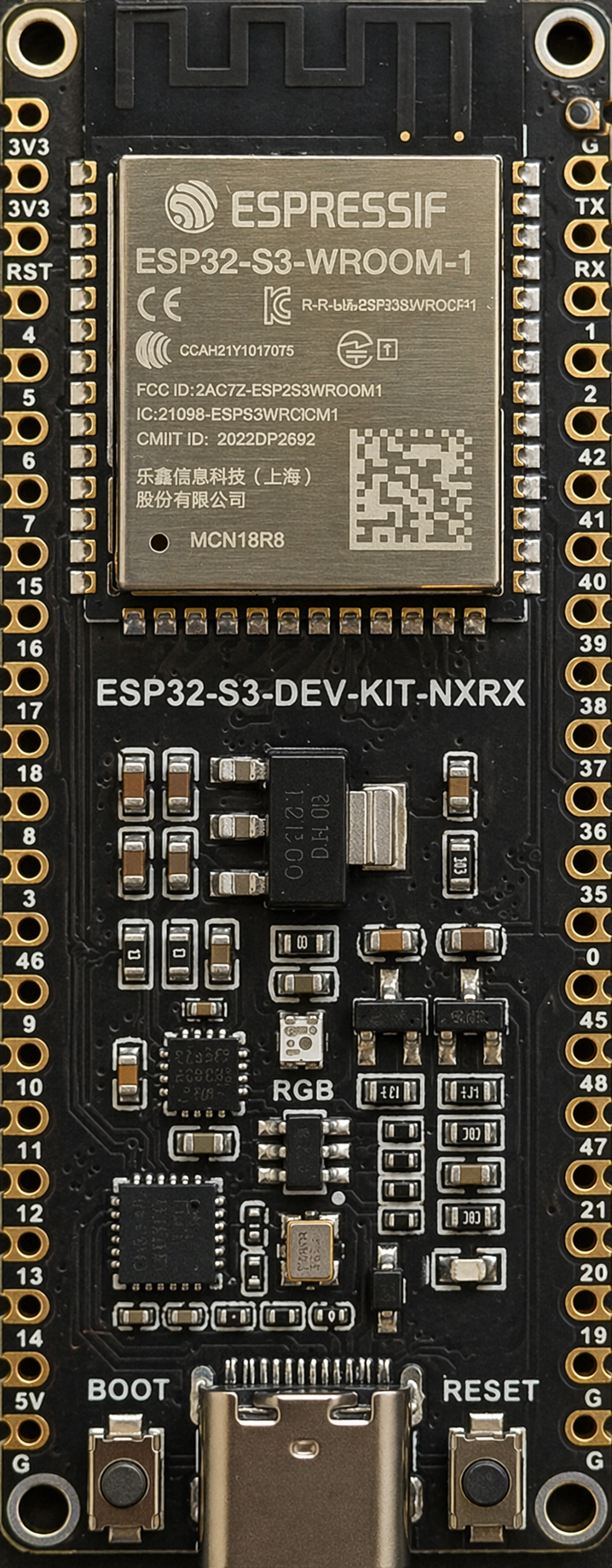

The ESP32-S3 Waveshare (MCN163R) is a development board designed by Waveshare, featuring the powerful ESP32-S3 microcontroller. This board integrates Wi-Fi and Bluetooth connectivity, making it an ideal choice for IoT applications, smart devices, and rapid prototyping. With its versatile GPIO pins and support for various peripherals, the ESP32-S3 Waveshare is suitable for both beginners and experienced developers.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Prototyping for AI and machine learning applications
• Bluetooth-enabled devices
• Industrial automation and monitoring systems

The following table outlines the key technical details of the ESP32-S3 Waveshare development board:

The ESP32-S3 Waveshare board features a variety of pins for different functionalities. Below is the pinout description:

1. Powering the Board:

   • Connect the board to a computer or power source using a USB-C cable. The board operates at 3.3V internally but accepts 5V input via USB-C.

2. Programming the Board:

   • Install the latest version of the Arduino IDE or ESP-IDF (Espressif IoT Development Framework).
   • Add the ESP32-S3 board support package to your development environment.
   • Connect the board to your computer and select the appropriate COM port.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure that the voltage levels are compatible with the 3.3V logic of the ESP32-S3.

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF and upload it to the board. The onboard USB-C interface supports programming and debugging.

• Voltage Levels: Ensure that all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Boot Mode: To enter bootloader mode, hold down the BOOT button while pressing the RESET button.
• Power Supply: Use a stable 5V power source when powering the board via VIN or USB-C.
• Pin Multiplexing: Many GPIO pins are multiplexed with other functions (e.g., ADC, I2C). Refer to the ESP32-S3 datasheet to avoid conflicts.

Below is an example of how to use the ESP32-S3 Waveshare to read data from a DHT11 temperature and humidity sensor:

#include <Adafruit_Sensor.h>
#include <DHT.h>
#include <DHT_U.h>

// Define the DHT sensor type and GPIO pin
#define DHTPIN 4       // GPIO pin connected to the DHT11 sensor
#define DHTTYPE DHT11  // DHT11 sensor type

DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(115200);  // Initialize serial communication
  dht.begin();           // Initialize the DHT sensor
  Serial.println("DHT11 Sensor Test");
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature and humidity values
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print("%  Temperature: ");
  Serial.print(temperature);
  Serial.println("°C");
}

1. Board Not Detected by Computer:

   • Ensure the USB-C cable is a data cable (not just a charging cable).
   • Check if the correct COM port is selected in the Arduino IDE or ESP-IDF.

2. Code Upload Fails:

   • Verify that the correct board and port are selected in the IDE.
   • Hold the BOOT button while pressing RESET to enter bootloader mode.

3. Peripherals Not Working:

   • Double-check the wiring and ensure the peripherals are compatible with 3.3V logic.
   • Confirm that the GPIO pins used are not multiplexed with other functions.

4. Wi-Fi or Bluetooth Connectivity Issues:

   • Ensure the correct SSID and password are used for Wi-Fi connections.
   • Check for interference or weak signal strength in the environment.

Q: Can I power the board using a battery?
A: Yes, you can power the board using a 3.7V LiPo battery connected to the VIN and GND pins, but ensure proper voltage regulation.

Q: Does the board support OTA (Over-The-Air) updates?
A: Yes, the ESP32-S3 supports OTA updates, which can be implemented using the Arduino IDE or ESP-IDF.

Q: Can I use the ESP32-S3 Waveshare for AI applications?
A: Yes, the ESP32-S3 includes hardware acceleration for AI tasks, making it suitable for lightweight AI and machine learning applications.

Q: Is the board compatible with MicroPython?
A: Yes, the ESP32-S3 Waveshare supports MicroPython, which can be flashed onto the board for Python-based development.
