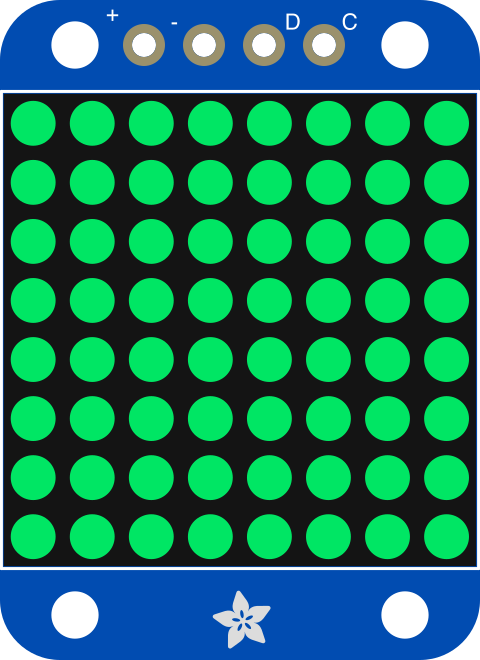

Image of Adafruit Mini 8x8 LED Matrix Backpack - Pure Green
Cirkit Designer LogoDesign with Adafruit Mini 8x8 LED Matrix Backpack - Pure Green in Cirkit Designer

Introduction

The Adafruit Mini 8x8 LED Matrix Backpack - Pure Green (Manufacturer Part ID: 1633) is a compact LED display module featuring an 8x8 grid of pure green LEDs. This module is designed for easy integration with microcontrollers, thanks to its built-in backpack that simplifies wiring and control. It uses the I2C communication protocol, making it ideal for projects requiring visual output, such as status indicators, animations, or simple text displays.
