How to Use IRFZ44N: Examples, Pinouts, and Specs

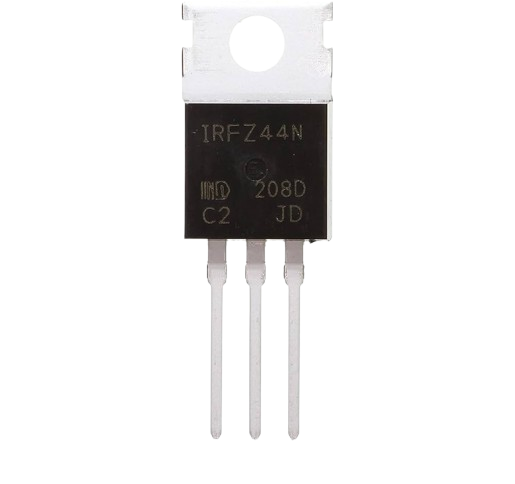

The IRFZ44N is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-speed switching applications. It is widely used in circuits requiring efficient power management, motor control, and switching operations. With its low on-resistance, high current capacity, and ability to handle voltages up to 55V, the IRFZ44N is a versatile and reliable component for various electronic projects.

• DC motor control in robotics and automation
• Power supply circuits and voltage regulation
• High-speed switching in inverters and converters
• LED dimming and lighting control
• Battery management systems

Below are the key technical details of the IRFZ44N MOSFET:

The IRFZ44N has three pins, as described in the table below:

1. Gate Control: Apply a voltage to the Gate (G) to turn the MOSFET on or off. A voltage of at least 10V is recommended for full switching performance.
2. Drain-Source Connection: Connect the load between the Drain (D) and the positive supply voltage. The Source (S) is typically connected to ground.
3. Gate Resistor: Use a resistor (e.g., 10Ω) between the Gate and the control signal to limit inrush current and protect the MOSFET.
4. Flyback Diode: For inductive loads (e.g., motors), add a flyback diode across the load to prevent voltage spikes that could damage the MOSFET.

The IRFZ44N can be used to control a DC motor with an Arduino UNO. Below is an example circuit and code:

• Gate (G): Connect to an Arduino digital pin (e.g., D9) through a 10Ω resistor.
• Drain (D): Connect to one terminal of the motor.
• Source (S): Connect to ground.
• Motor: Connect the other terminal to the positive supply voltage.
• Flyback Diode: Place a diode (e.g., 1N4007) across the motor terminals, with the cathode connected to the positive supply.

// IRFZ44N MOSFET Control Example
// This code demonstrates how to control a DC motor using PWM signals.

const int mosfetPin = 9; // Pin connected to the Gate of the IRFZ44N

void setup() {
  pinMode(mosfetPin, OUTPUT); // Set the MOSFET pin as an output
}

void loop() {
  analogWrite(mosfetPin, 128); // Set motor speed to 50% (PWM value: 128)
  delay(5000);                // Run motor for 5 seconds

  analogWrite(mosfetPin, 0);  // Turn off the motor
  delay(5000);                // Wait for 5 seconds
}

• Ensure the Gate voltage does not exceed the maximum V_GS rating of ±20V.
• Use a heatsink with the IRFZ44N if operating at high currents to prevent overheating.
• Avoid exceeding the maximum Drain-Source voltage (55V) to prevent damage.
• For high-frequency switching, consider adding a Gate driver circuit for faster transitions.

1. MOSFET Not Switching Properly

   • Cause: Insufficient Gate voltage.
   • Solution: Ensure the Gate voltage is at least 10V for full switching performance.

2. Overheating

   • Cause: High current or inadequate cooling.
   • Solution: Use a heatsink and ensure the current does not exceed the rated value.

3. Motor Not Running

   • Cause: Incorrect wiring or damaged MOSFET.
   • Solution: Double-check the circuit connections and replace the MOSFET if necessary.

4. Voltage Spikes

   • Cause: Inductive load without a flyback diode.
   • Solution: Add a flyback diode across the load to suppress voltage spikes.

Q: Can the IRFZ44N be used with a 3.3V microcontroller?
A: The IRFZ44N requires a Gate voltage of at least 10V for optimal performance. For 3.3V microcontrollers, use a logic-level MOSFET or a Gate driver circuit.

Q: What is the maximum current the IRFZ44N can handle?
A: The IRFZ44N can handle up to 49A continuously and 160A in pulsed mode, provided proper cooling is used.

Q: Is the IRFZ44N suitable for high-frequency switching?
A: Yes, but for very high frequencies, a dedicated Gate driver circuit is recommended to ensure fast switching.

Q: Can I use the IRFZ44N without a heatsink?
A: For low-current applications, a heatsink may not be necessary. However, for high-current applications, a heatsink is essential to prevent overheating.
