How to Use Terminal PCB 2 Pin: Examples, Pinouts, and Specs

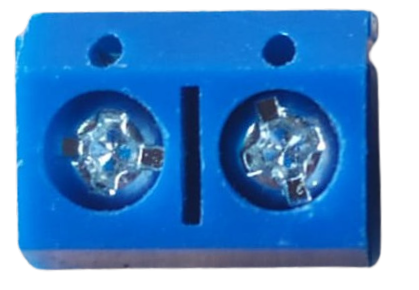

The Terminal PCB 2 Pin is a compact and reliable two-pin terminal block designed for printed circuit boards (PCBs). It provides a convenient way to connect and disconnect wires in electronic circuits without the need for soldering. This component is widely used in applications where secure and removable wire connections are required, such as power supplies, control systems, and prototyping.

• Power supply connections in electronic devices
• Signal connections in control systems
• Prototyping and testing circuits
• Industrial automation and robotics
• Audio and lighting systems

The following table outlines the key technical details of the Terminal PCB 2 Pin:

The Terminal PCB 2 Pin has two pins for electrical connections. The table below describes the pin configuration:

1. Mounting the Terminal Block:

   • Insert the two pins of the terminal block into the corresponding through-hole pads on the PCB.
   • Solder the pins securely to the PCB to ensure a stable connection.

2. Connecting Wires:

   • Strip the insulation from the ends of the wires (approximately 5-7 mm).
   • Insert the stripped wire ends into the terminal block's screw clamps.
   • Tighten the screws using a small flathead screwdriver to secure the wires.

3. Testing the Connection:

   • Verify that the wires are firmly held in place and that there is no loose connection.
   • Check for continuity using a multimeter if necessary.

• Ensure that the wire gauge is within the supported range (26-12 AWG) for optimal performance.
• Avoid overtightening the screws, as this may damage the terminal block or the wires.
• Use proper insulation for wires to prevent short circuits or accidental contact.
• When designing the PCB, ensure that the pin spacing (5.08 mm) matches the terminal block's pitch.

The Terminal PCB 2 Pin can be used to connect external power supplies or sensors to an Arduino UNO. Below is an example of how to connect a 12V power supply to the Arduino using the terminal block:

1. Connect the positive wire of the 12V power supply to Pin 1 (V+).
2. Connect the negative wire of the power supply to Pin 2 (V-).
3. Use the Arduino's VIN and GND pins to power the board.

// Example code to blink an LED using external power connected via Terminal PCB 2 Pin

int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Loose Wire Connections:

   • Cause: Wires not properly secured in the terminal block.
   • Solution: Ensure the screws are tightened adequately and the wires are stripped to the correct length.

2. Intermittent Connections:

   • Cause: Poor soldering of the terminal block to the PCB.
   • Solution: Re-solder the pins to ensure a solid connection.

3. Overheating:

   • Cause: Exceeding the rated current (10A).
   • Solution: Ensure the current flowing through the terminal block does not exceed its rated capacity.

4. Wire Slippage:

   • Cause: Using wires outside the supported gauge range.
   • Solution: Use wires within the specified range (26-12 AWG).

Q1: Can the Terminal PCB 2 Pin handle AC voltage?
A1: Yes, it can handle AC voltage up to its rated voltage of 300V, provided the current does not exceed 10A.

Q2: Is the terminal block reusable?
A2: Yes, the terminal block can be reused multiple times, but avoid overtightening the screws to maintain its longevity.

Q3: Can I use this terminal block for high-frequency signals?
A3: While it is primarily designed for power and low-frequency signals, it can handle high-frequency signals if the impedance and connection quality are suitable for your application.

Q4: What tools are required to use this terminal block?
A4: You will need a small flathead screwdriver for tightening the screws and a soldering iron for mounting the terminal block to the PCB.
