How to Use Li-ion Lithium Ion Battery: Examples, Pinouts, and Specs

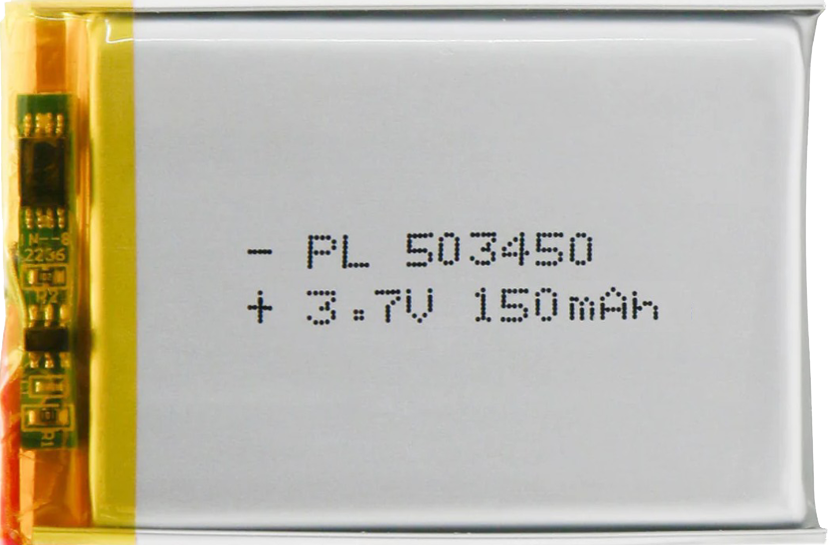

The Li-ion Lithium Ion Battery (Manufacturer: LI-ION, Part ID: Rechargeable Battery) is a rechargeable energy storage device that utilizes lithium ions as the primary component of its electrolyte. Known for its high energy density, lightweight design, and long cycle life, this battery is widely used in various applications, including portable electronics, electric vehicles, renewable energy systems, and robotics.

• Smartphones, laptops, and tablets
• Electric vehicles (EVs) and hybrid electric vehicles (HEVs)
• Power tools and medical devices
• Renewable energy storage (e.g., solar and wind systems)
• IoT devices and embedded systems

Below are the key technical details for the Li-ion Lithium Ion Battery:

Li-ion batteries typically have two or three terminals. Below is the pin configuration:

Note: The thermistor pin is present in some battery models for safety and thermal management.

1. Charging the Battery:

   • Use a constant current/constant voltage (CC/CV) charger designed for Li-ion batteries.
   • Set the charging voltage to 4.2V and the current to 0.5C (e.g., for a 2000mAh battery, charge at 1A).
   • Ensure the charger includes overcharge protection to prevent damage.

2. Discharging the Battery:

   • Connect the battery to your load, ensuring the load does not exceed the maximum discharge current.
   • Use a battery management system (BMS) to monitor voltage and prevent over-discharge (below 2.5V).

3. Connecting to an Arduino UNO:

   • Use a voltage regulator (e.g., LM7805) or a DC-DC buck converter to step down the battery voltage to 5V for the Arduino.
   • Example circuit:
     • Connect the battery's positive terminal to the input of the regulator.
     • Connect the regulator's output to the Arduino's 5V pin.
     • Connect the battery's negative terminal to the Arduino's GND pin.

• Safety First: Always use a BMS to protect against overcharging, over-discharging, and short circuits.
• Temperature Monitoring: Avoid charging or discharging the battery outside the recommended temperature range.
• Storage: Store the battery at 40-60% charge in a cool, dry place if not in use for extended periods.
• Avoid Deep Discharge: Repeatedly discharging below 2.5V can permanently damage the battery.

Below is an example code to monitor the battery voltage using an Arduino UNO:

// Li-ion Battery Voltage Monitoring with Arduino UNO
// Connect the battery to an analog pin via a voltage divider circuit

const int batteryPin = A0;  // Analog pin connected to the voltage divider
const float resistorRatio = 2.0; // Ratio of the voltage divider resistors
const float referenceVoltage = 5.0; // Arduino reference voltage (5V)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(batteryPin); // Read the analog value
  float batteryVoltage = (rawValue / 1023.0) * referenceVoltage * resistorRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Use a voltage divider circuit to ensure the battery voltage does not exceed the Arduino's input voltage limit (5V).

1. Battery Not Charging:

   • Cause: Charger not compatible or damaged.
   • Solution: Verify the charger specifications and ensure it supports Li-ion batteries.

2. Battery Overheating:

   • Cause: Overcharging or excessive discharge current.
   • Solution: Use a BMS and ensure the load/charger is within the battery's rated limits.

3. Short Battery Life:

   • Cause: Frequent deep discharges or exposure to high temperatures.
   • Solution: Avoid discharging below 2.5V and store the battery in a cool environment.

4. Arduino Not Powering On:

   • Cause: Incorrect voltage regulation or connection.
   • Solution: Check the voltage regulator and ensure proper wiring.

• Q: Can I use a Li-ion battery without a BMS?

  • A: It is not recommended. A BMS ensures safety by preventing overcharging, over-discharging, and short circuits.

• Q: How do I calculate the charging time for my battery?

  • A: Charging time ≈ (Battery Capacity / Charging Current) + 10%. For example, a 2000mAh battery charged at 1A will take approximately 2.2 hours.

• Q: Can I connect multiple Li-ion batteries in series or parallel?

  • A: Yes, but ensure all batteries are of the same capacity and use a BMS designed for series/parallel configurations.

• Q: What happens if I overcharge a Li-ion battery?

  • A: Overcharging can cause overheating, swelling, or even explosion. Always use a charger with overcharge protection.

By following these guidelines, you can safely and effectively use the Li-ion Lithium Ion Battery in your projects.
