How to Use USB Plug (4 Points): Examples, Pinouts, and Specs

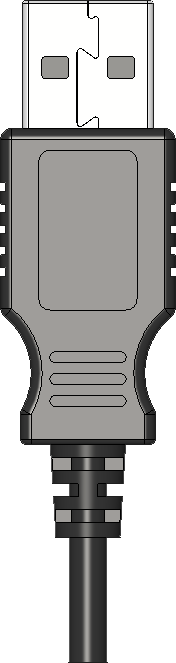

Image of USB Plug (4 Points)
Cirkit Designer LogoDesign with USB Plug (4 Points) in Cirkit Designer

Introduction

The USB Plug (4 Points) is a widely used connector designed for data transfer and power supply between electronic devices. It features four connection points, which include two for power (VCC and GND) and two for data (D+ and D-). This component is commonly found in applications such as charging smartphones, connecting peripherals like keyboards and mice, and enabling communication between computers and external devices.

Explore Projects Built with USB Plug (4 Points)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Pushbutton Interface with General Purpose I/O Plug
Image of Assista GP IO: A project utilizing USB Plug (4 Points) in a practical application
This circuit consists of a General Purpose Input/Output (GPIO) plug connected to four pushbuttons. Each pushbutton is wired to a unique input pin on the GPIO plug, allowing the state of each button (pressed or not pressed) to be detected individually. The common terminals of the pushbuttons are interconnected and likely serve as a ground or reference voltage connection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply
Image of connect 4: A project utilizing USB Plug (4 Points) in a practical application
This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB-Powered Pushbutton Controlled LED Circuit
Image of oppgv. 10: A project utilizing USB Plug (4 Points) in a practical application
This circuit consists of a USB power converter supplying power to three pushbuttons, each connected to a corresponding red LED. When a button is pressed, it closes the circuit for its associated LED, causing the LED to light up. The common ground for the circuit is provided through a 40-pin connector, which also serves as an interface for the pushbuttons' inputs and the LEDs' cathodes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing USB Plug (4 Points) in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with USB Plug (4 Points)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Assista GP IO: A project utilizing USB Plug (4 Points) in a practical application
Pushbutton Interface with General Purpose I/O Plug
This circuit consists of a General Purpose Input/Output (GPIO) plug connected to four pushbuttons. Each pushbutton is wired to a unique input pin on the GPIO plug, allowing the state of each button (pressed or not pressed) to be detected individually. The common terminals of the pushbuttons are interconnected and likely serve as a ground or reference voltage connection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of connect 4: A project utilizing USB Plug (4 Points) in a practical application
Pushbutton-Controlled Interface with 40-Pin Connector and UBS Power Supply
This circuit consists of a 40-pin connector interfacing with four pushbuttons and a UBS power supply. The pushbuttons are used as inputs to the connector, which then relays the signals to other components or systems. The UBS power supply provides the necessary 24V power to the pushbuttons and the common ground for the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of oppgv. 10: A project utilizing USB Plug (4 Points) in a practical application
USB-Powered Pushbutton Controlled LED Circuit
This circuit consists of a USB power converter supplying power to three pushbuttons, each connected to a corresponding red LED. When a button is pressed, it closes the circuit for its associated LED, causing the LED to light up. The common ground for the circuit is provided through a 40-pin connector, which also serves as an interface for the pushbuttons' inputs and the LEDs' cathodes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfdriver: A project utilizing USB Plug (4 Points) in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Charging mobile devices and powering small electronics
  • Data transfer between computers and peripherals
  • USB communication for microcontrollers and development boards
  • Connecting external storage devices like USB flash drives

Technical Specifications

The USB Plug (4 Points) adheres to the USB 2.0 standard, which is backward compatible with USB 1.1. Below are the key technical details:

Key Technical Details

  • Voltage Rating: 5V DC (standard USB power supply)
  • Current Rating: Up to 500mA (USB 2.0 standard)
  • Data Transfer Speed: Up to 480 Mbps (USB 2.0)
  • Connector Type: USB Type-A (commonly used) or Type-B (less common)
  • Number of Pins: 4 (VCC, GND, D+, D-)

Pin Configuration and Descriptions

The USB Plug (4 Points) has the following pin configuration:

Pin Number Name Description Typical Wire Color
1 VCC +5V Power Supply Red
2 D- Data Line (Negative) White
3 D+ Data Line (Positive) Green
4 GND Ground Black

Usage Instructions

How to Use the USB Plug in a Circuit

  1. Identify the Pins: Use the pin configuration table above to identify the four pins on the USB plug.
  2. Connect Power Lines:
    • Connect the VCC pin to a 5V power source.
    • Connect the GND pin to the ground of your circuit.
  3. Connect Data Lines:
    • Connect the D+ and D- pins to the corresponding data lines of your device or microcontroller.
  4. Secure the Connections: Use soldering or a reliable connector to ensure stable connections.

Important Considerations and Best Practices

  • Voltage Regulation: Ensure that the power supply does not exceed 5V to avoid damaging connected devices.
  • Data Line Protection: Use pull-up or pull-down resistors on the data lines if required by your circuit design.
  • Cable Quality: Use high-quality USB cables to minimize data loss and ensure reliable power delivery.
  • Avoid Short Circuits: Double-check connections to prevent short circuits between pins.

Example: Connecting to an Arduino UNO

The USB Plug (4 Points) can be used to power an Arduino UNO or enable serial communication. Below is an example of how to use it for serial communication:

// Example: Serial Communication with Arduino UNO via USB Plug

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("USB Plug Communication Initialized");
}

void loop() {
  if (Serial.available() > 0) {
    // Read incoming data from the USB connection
    char receivedData = Serial.read();
    Serial.print("Received: ");
    Serial.println(receivedData); // Echo the received data back
  }
}

Note: The USB plug is typically pre-wired in USB cables, so you may not need to manually connect the pins unless you're building a custom circuit.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Power to the Device

    • Cause: Incorrect connection of VCC and GND pins.
    • Solution: Verify the pin connections and ensure the power source is functional.
  2. Data Transfer Fails

    • Cause: Misconnection of D+ and D- pins or poor cable quality.
    • Solution: Check the data line connections and use a high-quality USB cable.
  3. Device Not Recognized by Computer

    • Cause: Faulty USB plug or driver issues.
    • Solution: Test with another USB plug or reinstall the device drivers on your computer.
  4. Overheating

    • Cause: Excessive current draw or short circuit.
    • Solution: Ensure the connected device does not exceed the 500mA current limit and check for short circuits.

FAQs

Q: Can I use the USB Plug (4 Points) for USB 3.0 devices?
A: Yes, but the data transfer speed will be limited to USB 2.0 (480 Mbps) as this plug only supports four pins.

Q: How do I identify the pins on a USB plug?
A: Most USB plugs follow a standard pinout. Refer to the pin configuration table above for guidance.

Q: Can I use this USB plug to power a 3.3V device?
A: No, the USB plug provides a standard 5V output. Use a voltage regulator to step down the voltage to 3.3V if needed.
