How to Use Relay MY4N: Examples, Pinouts, and Specs

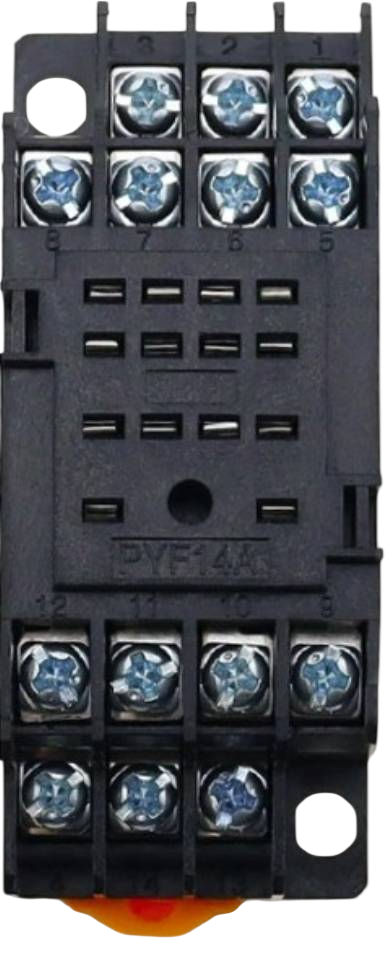

Image of Relay MY4N
Cirkit Designer LogoDesign with Relay MY4N in Cirkit Designer

Introduction

The MY4N is an electromechanical relay with four normally open (NO) contacts, designed for switching applications in various electronic circuits. It features a compact design, high reliability, and the ability to handle a wide range of voltages and currents. This relay is commonly used in automation systems, industrial control panels, and general-purpose switching applications. Its robust design ensures consistent performance in demanding environments.
