How to Use Arduino UNO: Examples, Pinouts, and Specs

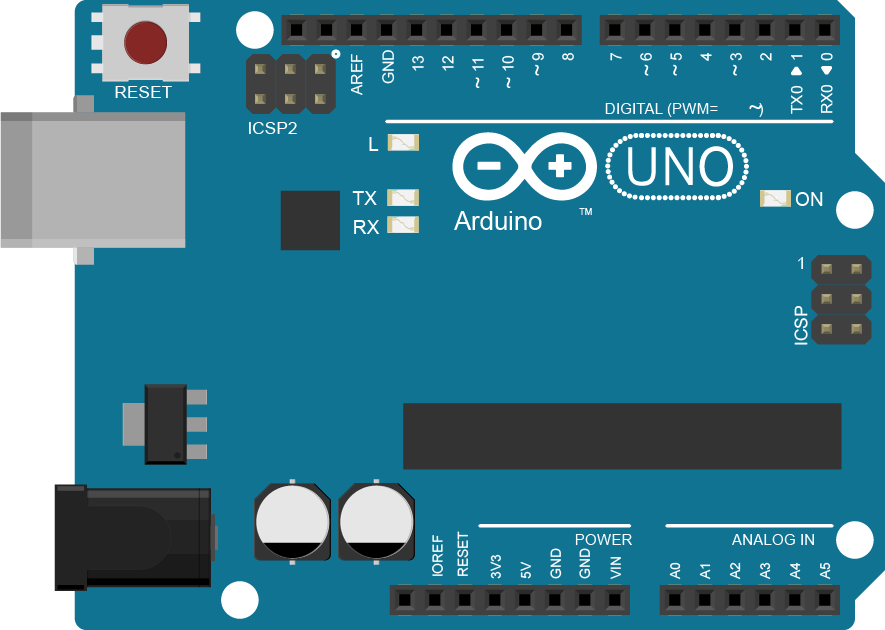

Image of Arduino UNO
Cirkit Designer LogoDesign with Arduino UNO in Cirkit Designer

Introduction

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. Its simplicity, open-source nature, and extensive community support make it an excellent choice for beginners and professionals alike.

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
Image of WORK_1: A project utilizing Arduino UNO in a practical application
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Access Control System with Data Logging
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of WORK_1: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of IoT devices
  • Robotics and automation projects
  • Sensor data acquisition and processing
  • Home automation systems
  • Educational purposes for learning programming and electronics

Technical Specifications

The Arduino UNO is designed to provide a balance of performance, ease of use, and flexibility. Below are its key technical details:

Key Technical Details

  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limit): 6-20V
  • Digital I/O Pins: 14 (6 of which provide PWM output)
  • Analog Input Pins: 6
  • DC Current per I/O Pin: 20 mA
  • Flash Memory: 32 KB (0.5 KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • USB Connector: Type-B
  • Dimensions: 68.6 mm x 53.4 mm
  • Weight: 25 g

Pin Configuration and Descriptions

The Arduino UNO has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Function Description
0 (RX) UART Receive Used for serial communication (input).
1 (TX) UART Transmit Used for serial communication (output).
2-13 Digital I/O General-purpose digital input/output.
3, 5, 6, 9, 10, 11 PWM Output Pulse-width modulation capability.

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Reads analog signals (0-5V).

Power Pins

Pin Name Function Description
VIN Input Voltage External power supply (7-12V).
5V Regulated 5V Output Powers external components.
3.3V Regulated 3.3V Output Powers low-voltage components.
GND Ground Common ground for the circuit.
RESET Reset Resets the microcontroller.

Communication Pins

Pin Name Function Description
SDA I2C Data Data line for I2C communication.
SCL I2C Clock Clock line for I2C communication.
SPI (10-13) SPI Communication Serial Peripheral Interface pins.

Usage Instructions

The Arduino UNO is straightforward to use, making it ideal for both beginners and advanced users. Follow the steps below to get started:

How to Use the Arduino UNO in a Circuit

  1. Power the Board: Connect the Arduino UNO to your computer using a USB Type-B cable or use an external power supply (7-12V) via the VIN pin or DC barrel jack.
  2. Install the Arduino IDE: Download and install the Arduino IDE from the official Arduino website.
  3. Connect the Board: Open the Arduino IDE, select the correct board ("Arduino UNO") and port under the "Tools" menu.
  4. Write and Upload Code:
    • Write your program (sketch) in the Arduino IDE.
    • Click the "Upload" button to transfer the code to the board.
  5. Connect Components: Use jumper wires to connect sensors, actuators, or other components to the appropriate pins on the Arduino UNO.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin 13 of the Arduino UNO:

// This program blinks an LED connected to pin 13 of the Arduino UNO.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Power Supply: Ensure the input voltage does not exceed the recommended range (7-12V) to avoid damaging the board.
  • Pin Current Limits: Do not exceed 20 mA per I/O pin to prevent overheating or damage.
  • Static Electricity: Handle the board with care to avoid static discharge, which can damage the microcontroller.
  • Libraries: Use Arduino libraries to simplify working with sensors, displays, and other peripherals.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Arduino UNO is not detected by the computer.

    • Solution: Ensure the USB cable is properly connected and functional. Check if the correct port is selected in the Arduino IDE.
  2. Problem: The code does not upload to the board.

    • Solution: Verify that the correct board ("Arduino UNO") is selected in the Arduino IDE. Ensure no other program is using the COM port.
  3. Problem: The connected components are not working as expected.

    • Solution: Double-check the wiring and ensure components are connected to the correct pins. Verify the code logic.
  4. Problem: The board overheats or behaves erratically.

    • Solution: Check the input voltage and ensure it is within the recommended range. Avoid drawing excessive current from the pins.

FAQs

  • Q: Can I power the Arduino UNO with a battery?
    • A: Yes, you can use a 9V battery connected to the VIN pin or DC barrel jack.
  • Q: Can the Arduino UNO communicate with other devices?
    • A: Yes, it supports UART, I2C, and SPI communication protocols.
  • Q: Is the Arduino UNO compatible with shields?
    • A: Yes, the Arduino UNO is compatible with a wide range of shields designed for the Arduino ecosystem.

By following this documentation, you can effectively use the Arduino UNO for a variety of projects and applications.
