How to Use XIAO ESP32 C3: Examples, Pinouts, and Specs

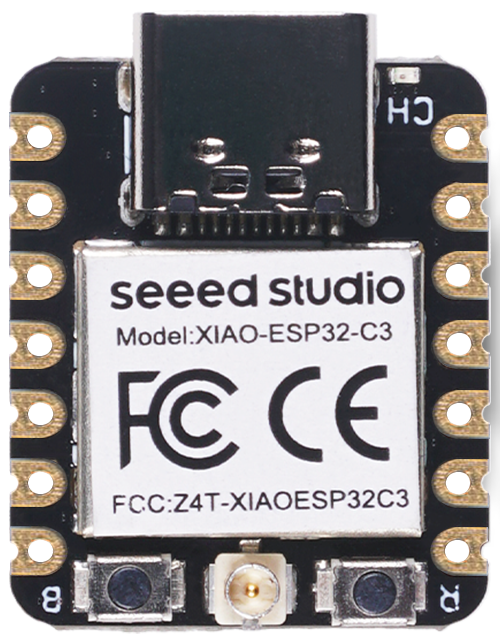

The XIAO ESP32 C3 is a compact and powerful microcontroller board developed by Seeed Studio, featuring the ESP32-C3 chip. This board is designed for IoT (Internet of Things) applications, offering built-in Wi-Fi and Bluetooth Low Energy (BLE) capabilities. Its small form factor and robust wireless connectivity make it an excellent choice for projects requiring efficient communication and minimal space.

• IoT devices and smart home automation
• Wearable technology
• Wireless sensor networks
• Remote monitoring and control systems
• Prototyping for Wi-Fi and BLE-enabled devices

Below are the key technical details of the XIAO ESP32 C3:

The XIAO ESP32 C3 features a total of 11 GPIO pins, which are multifunctional and can be configured for various purposes. Below is the pinout description:

1. Powering the Board:

   • Connect the board to a 5V power source using the USB-C port. The onboard voltage regulator will step down the voltage to 3.3V.
   • Alternatively, you can power the board directly via the 3V3 pin.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board package by following the official ESP32 installation guide.
   • Select "XIAO ESP32C3" as the board in the Arduino IDE.
   • Connect the board to your computer via USB-C and upload your code.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure the voltage levels are compatible with the 3.3V logic of the board.

4. Wireless Communication:

   • Use the built-in Wi-Fi and Bluetooth capabilities for wireless communication. Libraries such as WiFi.h and BLEDevice.h can be used for programming.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Deep Sleep Mode: Utilize the deep sleep mode for battery-powered applications to minimize power consumption.
• Pin Multiplexing: Be aware that some pins have multiple functions (e.g., ADC, PWM, UART). Configure them appropriately in your code.
• Antenna Placement: Avoid placing metal objects near the onboard antenna to ensure optimal wireless performance.

Below is an example of using the XIAO ESP32 C3 to connect to a Wi-Fi network and send data to a server:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  // Add your main code here
}

1. Board Not Detected by Arduino IDE:

   • Ensure the correct board and port are selected in the Arduino IDE.
   • Install the latest ESP32 board package in the Arduino IDE.

2. Wi-Fi Connection Fails:

   • Double-check the SSID and password in your code.
   • Ensure the Wi-Fi network is operating on the 2.4 GHz band (not 5 GHz).

3. Power Issues:

   • Verify that the power source provides sufficient current (at least 500 mA).
   • Check the USB cable for any damage or poor quality.

4. Code Upload Fails:

   • Press and hold the reset button while uploading the code to force the board into bootloader mode.

Q: Can I use the XIAO ESP32 C3 with a 5V sensor?
A: No, the XIAO ESP32 C3 operates at 3.3V logic levels. Use a level shifter to interface with 5V sensors.

Q: How do I enable deep sleep mode?
A: Use the esp_deep_sleep_start() function in your code to put the board into deep sleep mode.

Q: Is the XIAO ESP32 C3 compatible with MicroPython?
A: Yes, the XIAO ESP32 C3 supports MicroPython. You can flash the MicroPython firmware to the board and use it for programming.

Q: Can I use the board for Bluetooth communication?
A: Yes, the XIAO ESP32 C3 supports Bluetooth 5.0 LE. Use the BLEDevice.h library for Bluetooth programming.
