Introduction

The AC Single Phase Motor (Manufacturer: Songle, Part ID: 11) is an electric motor designed to operate on single-phase alternating current (AC). It is widely used in household appliances and small machinery due to its simplicity, reliability, and efficiency. This motor is ideal for applications requiring moderate power and consistent performance, such as fans, pumps, compressors, and washing machines.

Explore Projects Built with AC single phase motor

AC Bulb and Synchronous Motor Parallel Circuit

This circuit connects an AC bulb and an AC synchronous motor in parallel to an AC power source. Both the bulb and the motor are designed to operate with AC voltage, and they will function simultaneously when power is applied. There is no control logic or additional components, indicating a simple direct power application circuit.

Open Project in Cirkit Designer

AC-Powered 220 Fan and Water Pump Control System

This circuit consists of an AC power source that supplies power to both a 220V fan and a water pump. The AC source's positive and negative terminals are connected to the corresponding positive and negative inputs of the water pump and the 'L' and 'N' inputs of the fan, respectively, indicating that both loads are in parallel with the AC source.

Open Project in Cirkit Designer

Battery-Powered Motor Control with Voltage Monitoring and LED Indicator

This circuit converts AC power to DC using a bridge rectifier to drive a 12V geared motor. It also includes a TP4056 module for charging a 3.7V battery, monitored by a mini digital volt/ammeter, and an LED indicator for power status.

Open Project in Cirkit Designer

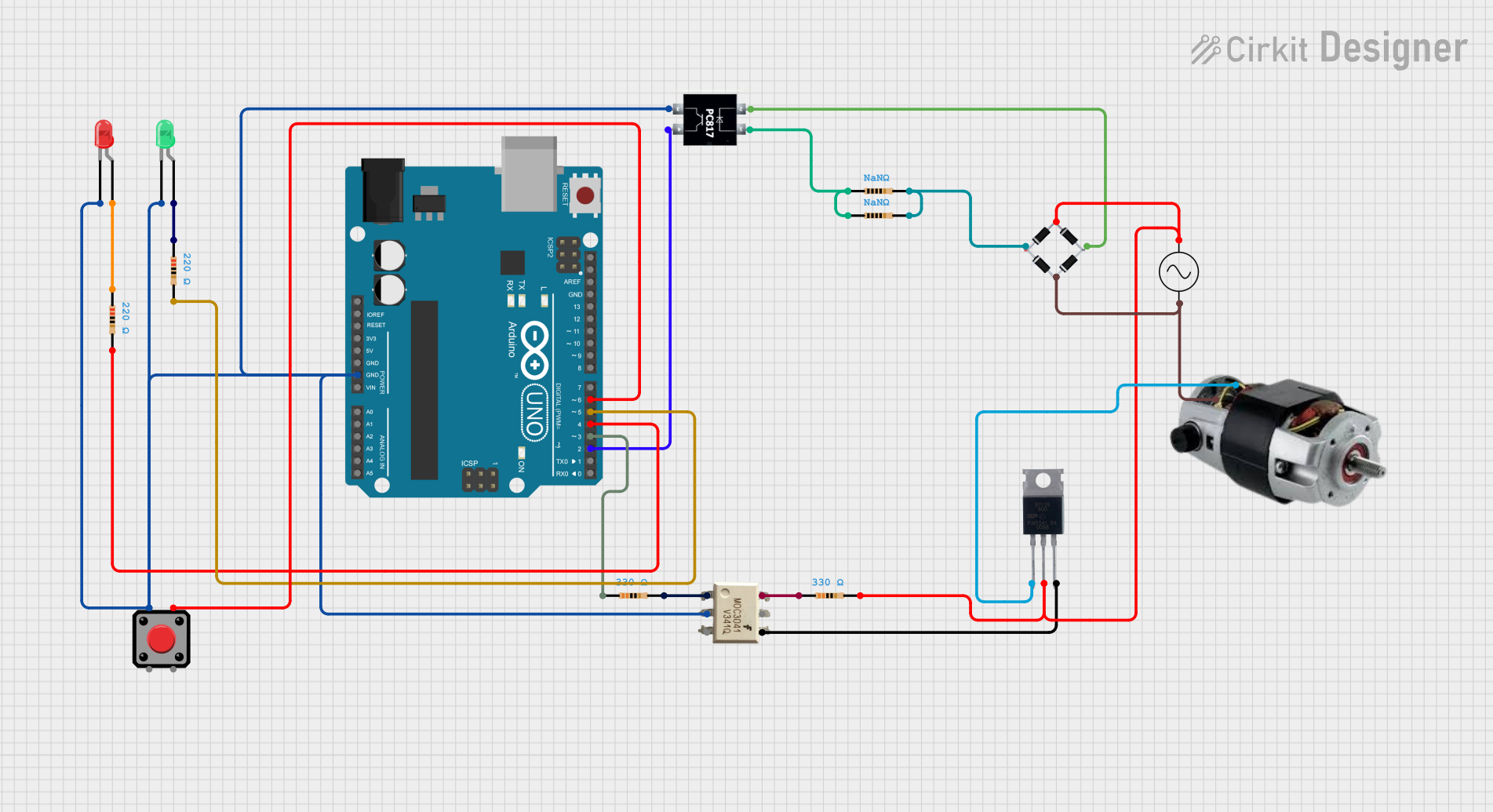

Arduino UNO Controlled AC Motor Speed Regulator with Opto-Isolation and Pushbutton Interface

This circuit is designed to control a universal AC motor using an Arduino UNO, with input from a pushbutton and feedback indicated by LEDs. It includes isolation and power control components to safely interface the low-voltage microcontroller with the high-voltage motor system.

Open Project in Cirkit Designer

Common Applications:

Household appliances (e.g., ceiling fans, washing machines, refrigerators)
Small industrial machinery
Pumps and compressors
HVAC systems
Office equipment (e.g., shredders, small printers)

Technical Specifications

Below are the key technical details for the Songle AC Single Phase Motor (Part ID: 11):

General Specifications:

Parameter	Value
Manufacturer	Songle
Part ID	11
Operating Voltage	110V - 240V AC
Frequency	50Hz / 60Hz
Power Rating	50W - 2kW (varies by model)
Speed	750 - 3600 RPM (depending on load)
Efficiency	Up to 85%
Starting Mechanism	Capacitor Start or Split Phase

Pin Configuration and Descriptions:

Pin Number	Pin Name	Description
1	Live (L)	Connects to the live AC supply line.
2	Neutral (N)	Connects to the neutral AC supply line.
3	Ground (GND)	Connects to the ground for safety.
4	Capacitor Lead	Connects to the external capacitor (if required).

Note: Some models may include additional terminals for speed control or auxiliary windings.

Usage Instructions

How to Use the AC Single Phase Motor in a Circuit:

Power Connection:
- Connect the Live (L) and Neutral (N) terminals to the AC power supply.
- Ensure the voltage and frequency match the motor's specifications (e.g., 110V/60Hz or 220V/50Hz).
- Connect the Ground (GND) terminal to the earth ground for safety.
Capacitor Connection:
- If the motor uses a capacitor-start mechanism, connect the external capacitor to the designated Capacitor Lead terminal.
- Use a capacitor with the recommended capacitance and voltage rating as specified in the motor's datasheet.
Mounting and Alignment:
- Securely mount the motor to a stable surface to minimize vibrations.
- Ensure proper alignment of the motor shaft with the load to avoid mechanical stress.
Load Connection:
- Attach the load (e.g., fan blade, pump impeller) to the motor shaft.
- Use appropriate couplings or belts to ensure smooth operation.
Testing:
- Turn on the power supply and observe the motor's operation.
- Check for smooth rotation, minimal noise, and proper load handling.

Important Considerations and Best Practices:

Overload Protection: Use a thermal overload relay or circuit breaker to protect the motor from overheating.
Ventilation: Ensure adequate ventilation around the motor to prevent overheating.
Maintenance: Regularly inspect the motor for wear, dirt, or damage. Lubricate bearings as needed.
Safety: Always disconnect the power supply before performing any maintenance or wiring changes.

Example: Controlling the Motor with an Arduino UNO

While AC motors are not directly controlled by microcontrollers like the Arduino UNO, you can use a relay module to switch the motor on and off. Below is an example code snippet:

// Example: Controlling an AC Single Phase Motor with Arduino UNO
// This code uses a relay module to control the motor's power supply.

const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn on the motor
  delay(5000); // Keep the motor running for 5 seconds
  digitalWrite(relayPin, LOW); // Turn off the motor
  delay(5000); // Wait for 5 seconds before restarting
}

Warning: Ensure proper isolation between the Arduino and the AC motor circuit. Use an optocoupler-based relay module for safety.

Troubleshooting and FAQs

Common Issues and Solutions:

Issue	Possible Cause	Solution
Motor does not start	Power supply not connected properly	Check wiring and ensure proper connections.
Motor overheats	Overload or poor ventilation	Reduce load or improve ventilation.
Motor vibrates excessively	Misalignment or loose mounting	Align the motor shaft and tighten mounts.
Motor hums but does not rotate	Faulty capacitor or winding issue	Replace the capacitor or inspect windings.

FAQs:

Can I use this motor with a variable frequency drive (VFD)?
- No, single-phase motors are not typically compatible with VFDs. Use a three-phase motor for variable speed applications.
What type of capacitor should I use?
- Use a capacitor with the capacitance and voltage rating specified in the motor's datasheet. For example, a 50µF, 250V capacitor may be suitable for some models.
How do I reverse the motor's direction?
- For capacitor-start motors, reversing the direction involves swapping the connections of the start winding. Consult the motor's wiring diagram for details.
Is this motor suitable for continuous operation?
- Yes, as long as the motor operates within its rated load and temperature limits.

By following this documentation, you can effectively use and maintain the Songle AC Single Phase Motor (Part ID: 11) for a wide range of applications.
