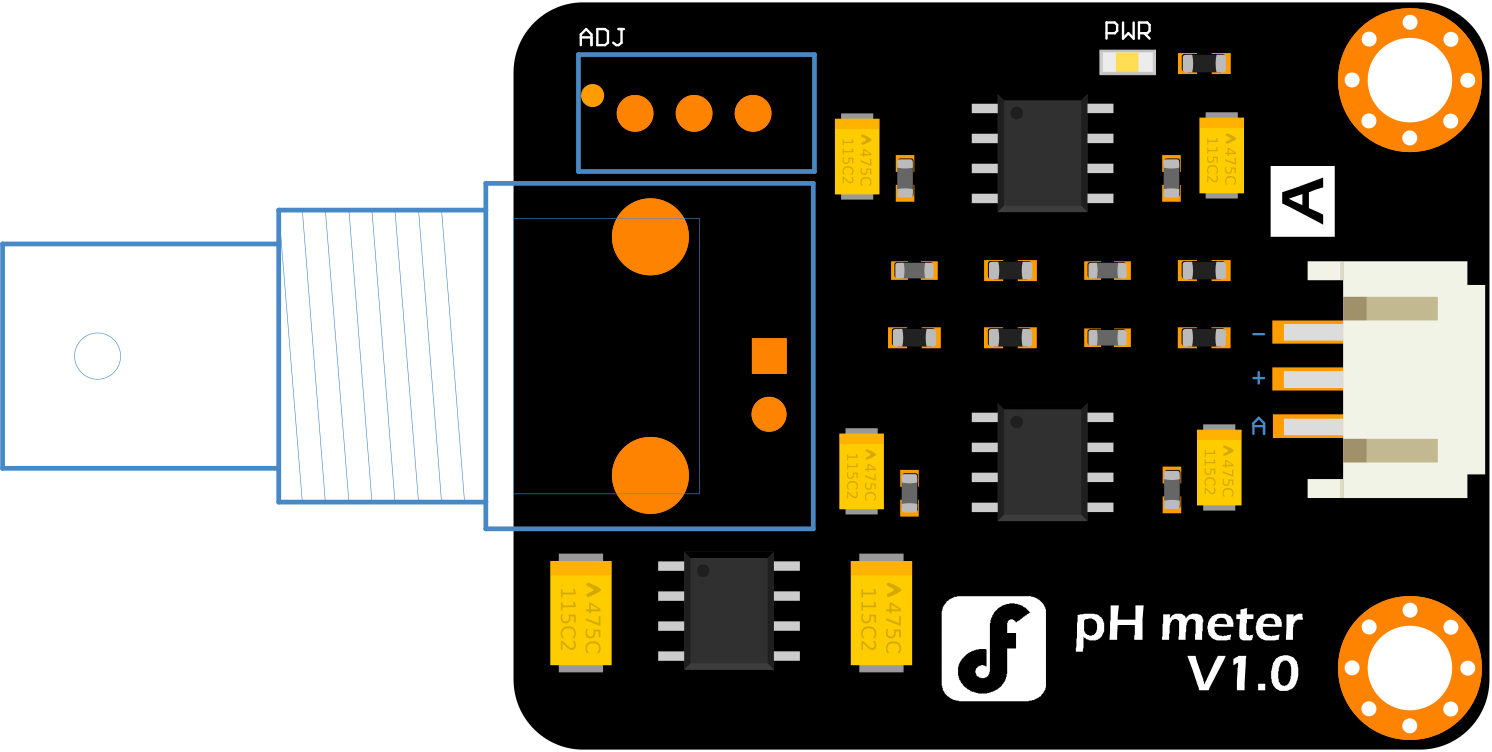

The pH Sensor Meter Kit V2 is a versatile and reliable tool designed for measuring the acidity or alkalinity of a solution. It features a high-precision pH probe, calibration solutions, and a digital interface for easy and accurate pH readings. This kit is ideal for applications in environmental monitoring, aquariums, hydroponics, laboratory experiments, and industrial processes where pH measurement is critical.
Common applications include:
Monitoring water quality in aquariums and pools
Testing soil pH for agriculture and gardening
Measuring pH levels in beverages and food production
Laboratory experiments in chemistry and biology
Industrial process control and wastewater treatment
Explore Projects Built with pH Sensor Meter Kit V2 SKU
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 Devkit V1 microcontroller interfaced with various sensors including a pH sensor, turbidity sensor, and TDS (Total Dissolved Solids) sensor for water quality monitoring. It also includes an OLED display for data output, a buzzer for alerts, and a two-channel relay module for controlling external devices based on sensor readings. The ESP32 facilitates data processing and I2C communication with the OLED display, while also managing sensor inputs and actuator outputs.
This circuit utilizes an ESP32 microcontroller to interface with various sensors, including a pH meter, two HC-SR04 ultrasonic sensors, and a DS18B20 temperature sensor. The ESP32 reads data from these sensors to monitor environmental parameters such as pH levels, distance, and temperature.
This circuit features an ESP32 microcontroller connected to a PH Meter, a water flow sensor, and a TDS (Total Dissolved Solids) sensor module for monitoring water quality. The ESP32 reads the sensor outputs and displays relevant data on a 16x2 LCD display. A potentiometer is used to adjust the contrast of the LCD, and all components are powered by the ESP32's 3.3V output, with common ground connections.
This circuit features an ESP32 Devkit V1 microcontroller interfaced with an HC-SR04 Ultrasonic Sensor, a TDS (Total Dissolved Solids) Sensor Module, and a pH Degree Sensor Module for environmental monitoring. The ESP32 is programmed to measure distance using the ultrasonic sensor, and to read the analog values from the TDS and pH sensors to monitor water quality. All sensors are powered by a common 5V battery, and the ESP32 processes and outputs the sensor data serially.
The pH Sensor Meter Kit V2 is designed for ease of use and high accuracy. Below are the key technical details:
General Specifications
Parameter
Specification
Measurement Range
0 - 14 pH
Accuracy
±0.1 pH (at 25°C)
Operating Temperature
0°C - 60°C
Power Supply Voltage
3.3V - 5V
Output Signal
Analog (0 - 3.0V)
Calibration
Two-point calibration (pH 4.0 and pH 7.0)
Probe Type
Glass electrode
Cable Length
1 meter
Pin Configuration
The pH sensor module has a simple pinout for easy integration with microcontrollers like Arduino. Below is the pin configuration:
Pin Name
Description
VCC
Power supply input (3.3V - 5V)
GND
Ground
AOUT
Analog output signal (proportional to pH)
Usage Instructions
Connecting the pH Sensor to a Circuit
Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
Read the Analog Signal: Connect the AOUT pin to an analog input pin on your microcontroller (e.g., Arduino).
Attach the Probe: Securely connect the pH probe to the BNC connector on the module.
Calibrate the Sensor:
Immerse the probe in the pH 7.0 calibration solution and adjust the potentiometer on the module until the output reads 7.0.
Repeat the process with the pH 4.0 calibration solution for two-point calibration.
Important Considerations
Always rinse the pH probe with distilled water before and after use to prevent contamination.
Avoid exposing the probe to extreme temperatures or harsh chemicals, as this may damage the glass electrode.
Store the probe in a pH storage solution when not in use to maintain accuracy and prolong its lifespan.
Allow the probe to stabilize for a few seconds in the solution before taking a reading.
Example Code for Arduino UNO
Below is an example of how to use the pH Sensor Meter Kit V2 with an Arduino UNO:
// Include necessary libraries (if any)
// Define the analog pin connected to the pH sensor
const int pH_pin = A0; // Analog pin A0 is used for the sensor
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
Serial.println("pH Sensor Meter Kit V2 - Reading pH Values");
}
void loop() {
int sensorValue = analogRead(pH_pin); // Read the analog value from the sensor
float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage (5V system)
// Convert voltage to pH value (example formula, adjust based on calibration)
float pH = 3.5 * voltage; // Adjust the multiplier based on your calibration
Serial.print("Voltage: ");
Serial.print(voltage);
Serial.print(" V, pH: ");
Serial.println(pH);
delay(1000); // Wait 1 second before the next reading
}
Notes on Calibration
The formula for converting voltage to pH may vary depending on your specific calibration. Adjust the multiplier (3.5 in the example) based on your calibration results.
Perform calibration regularly to ensure accurate readings.
Troubleshooting and FAQs
Common Issues and Solutions
Inaccurate Readings:
Ensure the probe is properly calibrated using pH 4.0 and pH 7.0 solutions.
Check for contamination on the probe and rinse it with distilled water.
No Output Signal:
Verify all connections, especially the VCC, GND, and AOUT pins.
Ensure the power supply voltage is within the specified range (3.3V - 5V).
Fluctuating Readings:
Allow the probe to stabilize in the solution before taking a reading.
Ensure the probe is fully submerged in the solution and not touching the container walls.
Probe Not Responding:
Check if the probe is damaged or expired. Replace it if necessary.
Ensure the probe is stored in a pH storage solution when not in use.
FAQs
Q: Can I use the pH Sensor Meter Kit V2 with a Raspberry Pi?
A: Yes, but you will need an analog-to-digital converter (ADC) since the Raspberry Pi does not have built-in analog input pins.
Q: How often should I calibrate the sensor?
A: It is recommended to calibrate the sensor before each use or at least once a week for consistent accuracy.
Q: Can the probe measure pH in high-temperature solutions?
A: The probe is designed for use in solutions with temperatures between 0°C and 60°C. Avoid exceeding this range to prevent damage.
Q: What is the lifespan of the pH probe?
A: With proper care and storage, the probe can last up to 1-2 years. Replace it if readings become unreliable.
