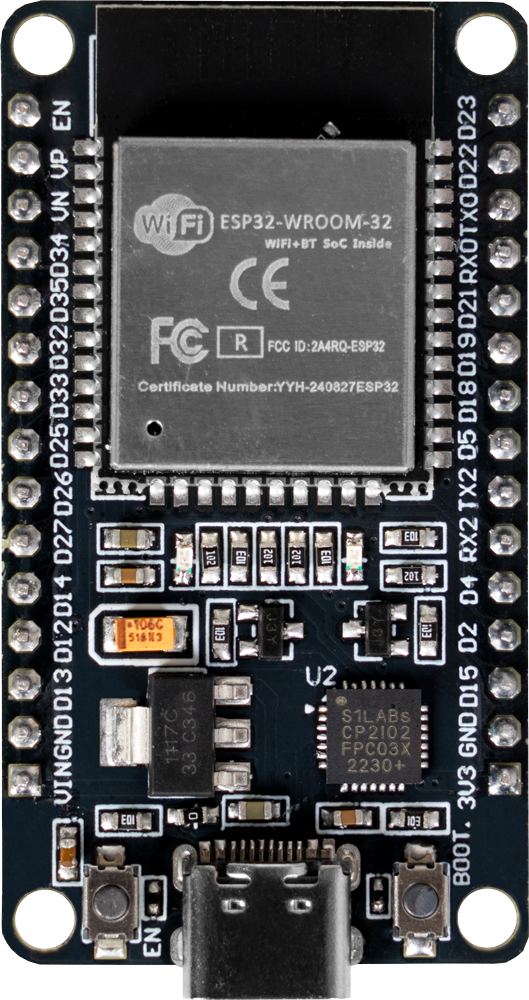

Image of esp32
Cirkit Designer LogoDesign with esp32 in Cirkit Designer

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful component for a wide range of projects.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arena 2: A project utilizing esp32 in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing esp32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing esp32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Robotics and drones
  • Industrial automation
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

General Specifications

Feature Description
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE)
Operating Voltage 3.3V
GPIO Pins Up to 34 GPIO pins
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available

Pin Configuration and Descriptions

The ESP32 has multiple variants, but the following table outlines the pin configuration for the ESP32-WROOM-32 module, one of the most commonly used versions.

Pin Number Pin Name Description
1 EN Enable pin (active high)
2 IO0 GPIO0, used for boot mode selection
3 IO1 (TX0) GPIO1, UART0 TX
4 IO3 (RX0) GPIO3, UART0 RX
5 IO4 GPIO4, general-purpose I/O
6 IO5 GPIO5, general-purpose I/O
7 IO12 GPIO12, ADC2 channel 5
8 IO13 GPIO13, ADC2 channel 4
9 IO14 GPIO14, ADC2 channel 6
10 IO15 GPIO15, ADC2 channel 3
... ... ... (Refer to the datasheet for full details)

Note: Some GPIO pins have specific functions or limitations. For example, GPIO0 is used for boot mode selection, and certain pins are input-only or have pull-up/down resistors.

Usage Instructions

The ESP32 can be used in a variety of circuits and applications. Below are the steps and best practices for using the ESP32 in your projects.

Basic Setup

  1. Power Supply: Provide a stable 3.3V power supply to the ESP32. Avoid exceeding the voltage limit to prevent damage.
  2. Boot Mode: To upload code, connect GPIO0 to GND and reset the ESP32. After uploading, disconnect GPIO0 from GND.
  3. Programming: Use the Arduino IDE or Espressif's ESP-IDF for programming. Install the necessary board definitions and libraries.

Example: Blinking an LED with Arduino UNO

The following example demonstrates how to blink an LED connected to GPIO2 of the ESP32 using the Arduino IDE.

// Example: Blink an LED connected to GPIO2 of the ESP32

// Define the GPIO pin where the LED is connected
#define LED_PIN 2

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(1000);                 // Wait for 1 second
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(1000);                 // Wait for 1 second
}

Important Considerations

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels. Use level shifters if necessary.
  • Wi-Fi and Bluetooth: Avoid placing the ESP32 near metal objects or enclosures that may interfere with wireless signals.
  • Power Consumption: Use deep sleep modes to reduce power consumption in battery-powered applications.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer

    • Ensure the correct USB driver is installed (e.g., CP210x or CH340 driver).
    • Check the USB cable for data transfer capability (some cables are power-only).
  2. Code Upload Fails

    • Verify that GPIO0 is connected to GND during the upload process.
    • Check the selected board and COM port in the Arduino IDE.
  3. Wi-Fi Connection Issues

    • Ensure the correct SSID and password are used in the code.
    • Check for interference or weak signal strength.
  4. Random Resets or Instability

    • Use a stable power supply with sufficient current (at least 500 mA).
    • Add decoupling capacitors near the power pins.

FAQs

Q: Can the ESP32 operate on 5V?
A: No, the ESP32 operates at 3.3V. Applying 5V to its GPIO pins can damage the chip.

Q: How do I use the ESP32 with an external antenna?
A: Some ESP32 modules have a U.FL connector for an external antenna. Refer to the module's datasheet for details.

Q: Can I use the ESP32 for audio applications?
A: Yes, the ESP32 supports I2S for audio input/output and can be used for applications like streaming audio or voice recognition.

Q: What is the maximum range of the ESP32's Wi-Fi?
A: The range depends on the environment but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues. For more advanced features, refer to the official Espressif documentation.
