How to Use Red led: Examples, Pinouts, and Specs

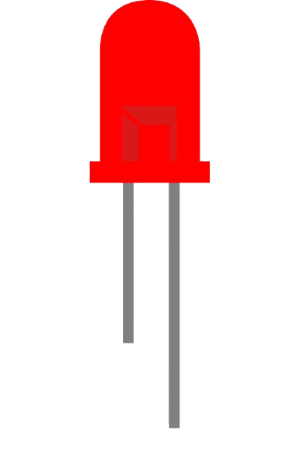

Image of Red led
Cirkit Designer LogoDesign with Red led in Cirkit Designer

Introduction

The Red LED (Light-Emitting Diode) manufactured by Lina, with part ID 1, is a compact and efficient electronic component that emits red light when an electric current flows through it. It is widely used in various applications, including status indicators, displays, and decorative lighting. The Red LED is a fundamental component in electronics, valued for its low power consumption, long lifespan, and reliability.

Explore Projects Built with Red led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Dual LED Circuit
Image of led: A project utilizing Red led in a practical application
This circuit consists of a single red LED connected to a 9V battery. The anode of the LED is connected to the positive terminal of the battery, and the cathode is connected to the negative terminal, allowing the LED to light up when the circuit is complete.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Indicator with Rocker Switch Control
Image of this is good: A project utilizing Red led in a practical application
This circuit is a simple LED indicator controlled by a rocker switch. When the switch is turned on, it completes the circuit, allowing current to flow from a 7.4V power source through a 200-ohm resistor and a red LED, causing the LED to light up.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Circuit with Rocker Switch Control
Image of Intern 2: A project utilizing Red led in a practical application
This circuit consists of three red LEDs connected in parallel, each with its own 1k Ohm resistor, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Circuit with Resistor
Image of Basic: A project utilizing Red led in a practical application
This circuit consists of a 9V battery powering a red LED through a 200 Ohm resistor. The resistor limits the current flowing through the LED, protecting it from damage while allowing it to emit light when the circuit is complete.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Red led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of led: A project utilizing Red led in a practical application
Battery-Powered Dual LED Circuit
This circuit consists of a single red LED connected to a 9V battery. The anode of the LED is connected to the positive terminal of the battery, and the cathode is connected to the negative terminal, allowing the LED to light up when the circuit is complete.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of this is good: A project utilizing Red led in a practical application
Battery-Powered LED Indicator with Rocker Switch Control
This circuit is a simple LED indicator controlled by a rocker switch. When the switch is turned on, it completes the circuit, allowing current to flow from a 7.4V power source through a 200-ohm resistor and a red LED, causing the LED to light up.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Intern 2: A project utilizing Red led in a practical application
Battery-Powered LED Circuit with Rocker Switch Control
This circuit consists of three red LEDs connected in parallel, each with its own 1k Ohm resistor, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Basic: A project utilizing Red led in a practical application
Battery-Powered LED Circuit with Resistor
This circuit consists of a 9V battery powering a red LED through a 200 Ohm resistor. The resistor limits the current flowing through the LED, protecting it from damage while allowing it to emit light when the circuit is complete.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power and status indicators in electronic devices
  • Digital displays and signage
  • Circuit debugging and testing
  • Decorative and ambient lighting
  • Educational and hobbyist projects

Technical Specifications

Below are the key technical details for the Lina Red LED (Part ID: 1):

Parameter Value
Forward Voltage (Vf) 1.8V to 2.2V
Forward Current (If) 20mA (typical)
Maximum Current (Ifmax) 30mA
Wavelength 620nm to 630nm (red light)
Viewing Angle 20° to 30°
Power Dissipation 75mW (maximum)
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +100°C

Pin Configuration

The Red LED has two pins:

Pin Description
Anode (+) Positive terminal (longer leg)
Cathode (-) Negative terminal (shorter leg)

Note: The longer leg of the LED is the anode, which connects to the positive voltage, while the shorter leg is the cathode, which connects to ground.

Usage Instructions

How to Use the Red LED in a Circuit

  1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • ( V_{supply} ) is the supply voltage
    • ( V_f ) is the forward voltage of the LED (1.8V to 2.2V)
    • ( I_f ) is the desired forward current (typically 20mA)

    For example, if ( V_{supply} = 5V ): [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

  2. Connect the LED:

    • Connect the anode (longer leg) to the positive voltage through the resistor.
    • Connect the cathode (shorter leg) to ground.
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit red light when current flows through it.

Important Considerations

  • Polarity: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
  • Current Limiting: Always use a resistor to limit the current through the LED. Exceeding the maximum current rating can permanently damage the LED.
  • Heat Dissipation: Ensure proper ventilation if the LED is used in high-power applications to avoid overheating.

Example: Connecting the Red LED to an Arduino UNO

Below is an example of how to connect and control the Red LED using an Arduino UNO:

Circuit Diagram

  • Connect the anode of the LED to Arduino pin 9 through a 220Ω resistor.
  • Connect the cathode of the LED to the Arduino GND pin.

Arduino Code

// Red LED Example with Arduino UNO
// This code blinks a Red LED connected to pin 9

const int ledPin = 9; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: The resistor value (220Ω) is chosen to limit the current to a safe level for the LED and Arduino.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.

    • Solution: Ensure the anode is connected to the positive voltage and the cathode to ground.

    • Cause: No current-limiting resistor or incorrect resistor value.

    • Solution: Verify the resistor value and ensure it is connected in series with the LED.

  2. LED is Dim:

    • Cause: Insufficient current.
    • Solution: Check the resistor value and ensure it allows enough current (typically 20mA).
  3. LED Burns Out:

    • Cause: Excessive current.
    • Solution: Use a resistor with the correct value to limit the current.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power supply and ensure all connections are secure.

FAQs

Q: Can I connect the Red LED directly to a 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: What happens if I reverse the polarity of the LED?
A: The LED will not light up. In most cases, it will not be damaged, but prolonged reverse voltage may harm the component.

Q: Can I use the Red LED with a 3.3V power supply?
A: Yes, but you still need a current-limiting resistor. Calculate the resistor value based on the supply voltage and forward voltage of the LED.

Q: How do I know the polarity of the LED?
A: The longer leg is the anode (positive), and the shorter leg is the cathode (negative). Additionally, the cathode side often has a flat edge on the LED casing.

By following this documentation, you can effectively use the Lina Red LED (Part ID: 1) in your projects with confidence!
