How to Use MCB 3 Phase Chint: Examples, Pinouts, and Specs
Design with MCB 3 Phase Chint in Cirkit DesignerIntroduction

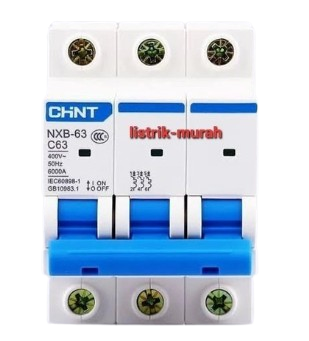

The MCB 3 Phase Chint is a Miniature Circuit Breaker designed specifically for three-phase electrical systems. Manufactured by Chint, this component provides reliable overcurrent protection by automatically disconnecting the circuit in the event of an overload or short circuit. Its compact design and robust performance make it an essential safety device in industrial, commercial, and residential electrical installations.
Explore Projects Built with MCB 3 Phase Chint
LED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Open Project in Cirkit DesignerFlush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerBattery-Powered UPS System with Waveshare UPS 3S and Solar Charger
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Open Project in Cirkit DesignerBattery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Open Project in Cirkit DesignerExplore Projects Built with MCB 3 Phase Chint
LED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Open Project in Cirkit DesignerFlush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerBattery-Powered UPS System with Waveshare UPS 3S and Solar Charger
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
Open Project in Cirkit DesignerBattery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Open Project in Cirkit DesignerCommon Applications and Use Cases
- Protection of three-phase electrical systems in industrial environments
- Safeguarding commercial electrical equipment from overloads and short circuits
- Residential use for three-phase power distribution systems
- Integration into control panels and distribution boards
Technical Specifications
The following table outlines the key technical details of the MCB 3 Phase Chint:
| Parameter | Specification |
|---|---|
| Rated Voltage | 400/415V AC |
| Rated Current | 6A, 10A, 16A, 20A, 32A, 40A, 63A |
| Number of Poles | 3 (Three-phase) |
| Breaking Capacity | 6kA or 10kA (depending on model) |
| Tripping Curve | B, C, or D (based on application) |
| Frequency | 50/60 Hz |
| Operating Temperature | -5°C to +40°C |
| Mounting | DIN Rail |
| Standards Compliance | IEC/EN 60898-1 |
Pin Configuration and Descriptions
The MCB 3 Phase Chint does not have traditional pins but instead features terminal connections for three-phase input and output. The table below describes the terminal connections:
| Terminal | Description |
|---|---|
| L1 | Phase 1 input connection |
| L2 | Phase 2 input connection |
| L3 | Phase 3 input connection |
| OUT1 | Phase 1 output connection |
| OUT2 | Phase 2 output connection |
| OUT3 | Phase 3 output connection |
Usage Instructions
How to Use the MCB 3 Phase Chint in a Circuit
Installation:
- Ensure the power supply is turned off before installation.
- Mount the MCB securely onto a DIN rail in the distribution board.
- Connect the three-phase input wires (L1, L2, L3) to the corresponding input terminals.
- Connect the output terminals (OUT1, OUT2, OUT3) to the load or downstream circuit.
Operation:
- Switch the MCB to the "ON" position to allow current flow.
- In case of an overload or short circuit, the MCB will trip to the "OFF" position automatically.
- To reset, inspect and resolve the fault, then switch the MCB back to the "ON" position.
Testing:
- Periodically test the MCB by simulating a fault condition to ensure proper functionality.
Important Considerations and Best Practices
- Select the appropriate rated current and tripping curve (B, C, or D) based on the application:
- B Curve: For residential or light commercial loads with low inrush currents.
- C Curve: For general industrial loads with moderate inrush currents.
- D Curve: For heavy industrial loads with high inrush currents (e.g., motors).
- Ensure proper tightening of terminal screws to avoid loose connections.
- Avoid exceeding the rated voltage, current, or breaking capacity of the MCB.
- Regularly inspect the MCB for signs of wear, damage, or overheating.
Troubleshooting and FAQs
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| MCB trips frequently | Overload or short circuit in the circuit | Identify and remove the fault in the load |
| MCB does not trip during a fault | Faulty MCB or incorrect installation | Replace the MCB or check wiring |
| Terminals overheating | Loose connections or excessive current | Tighten terminals or reduce load |
| MCB cannot be reset to "ON" position | Persistent fault in the circuit | Inspect and resolve the fault |
FAQs
Can the MCB 3 Phase Chint be used for single-phase systems?
- No, this MCB is specifically designed for three-phase systems. For single-phase systems, use a single-pole or double-pole MCB.
What is the difference between B, C, and D tripping curves?
- The tripping curves define the MCB's response to inrush currents:
- B Curve: Trips at 3-5 times the rated current.
- C Curve: Trips at 5-10 times the rated current.
- D Curve: Trips at 10-20 times the rated current.
- The tripping curves define the MCB's response to inrush currents:
How often should the MCB be tested?
- It is recommended to test the MCB at least once a year to ensure proper functionality.
By following this documentation, users can safely and effectively integrate the MCB 3 Phase Chint into their electrical systems.
