How to Use Potentiometer: Examples, Pinouts, and Specs

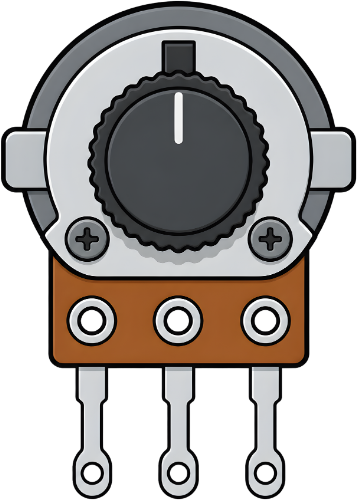

Image of Potentiometer
Cirkit Designer LogoDesign with Potentiometer in Cirkit Designer

Introduction

A potentiometer is a variable resistor that allows for the adjustment of voltage levels in a circuit. By varying its resistance, it enables control over current flow and signal levels, making it a versatile component in electronic designs. Potentiometers are commonly used for tasks such as adjusting audio volume, tuning circuits, and calibrating devices.

Explore Projects Built with Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 Analog Input Control with Trimmer Potentiometer
Image of Analog read potentiometer: A project utilizing Potentiometer in a practical application
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Potentiometer Analog Input Project
Image of lesson 7: A project utilizing Potentiometer in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a potentiometer. The potentiometer's VCC and GND pins are connected to the 5V and GND pins of the Arduino, respectively, and its output is connected to the A1 analog input pin of the Arduino, allowing the Arduino to read varying voltage levels from the potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi Analog Input with Potentiometer
Image of potentiometer: A project utilizing Potentiometer in a practical application
This circuit consists of a potentiometer connected to an Arduino UNO R4 WiFi. The potentiometer's ground and VCC are connected to the Arduino's ground and 5V pins, respectively, and its output is connected to the Arduino's analog input A0. The purpose of this circuit is likely to read the variable resistance from the potentiometer as an analog voltage, which can be used by the Arduino for various control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Analog Input with Trimmer Potentiometer
Image of Potenciometer: A project utilizing Potentiometer in a practical application
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Analog read potentiometer: A project utilizing Potentiometer in a practical application
Arduino 101 Analog Input Control with Trimmer Potentiometer
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lesson 7: A project utilizing Potentiometer in a practical application
Arduino UNO Potentiometer Analog Input Project
This circuit consists of an Arduino UNO microcontroller connected to a potentiometer. The potentiometer's VCC and GND pins are connected to the 5V and GND pins of the Arduino, respectively, and its output is connected to the A1 analog input pin of the Arduino, allowing the Arduino to read varying voltage levels from the potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of potentiometer: A project utilizing Potentiometer in a practical application
Arduino UNO R4 WiFi Analog Input with Potentiometer
This circuit consists of a potentiometer connected to an Arduino UNO R4 WiFi. The potentiometer's ground and VCC are connected to the Arduino's ground and 5V pins, respectively, and its output is connected to the Arduino's analog input A0. The purpose of this circuit is likely to read the variable resistance from the potentiometer as an analog voltage, which can be used by the Arduino for various control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Potenciometer: A project utilizing Potentiometer in a practical application
Arduino UNO Analog Input with Trimmer Potentiometer
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Audio equipment (e.g., volume control)
  • Brightness adjustment in lighting systems
  • Calibration of sensors and instruments
  • Voltage dividers in circuits
  • User input devices (e.g., joysticks)

Technical Specifications

Below are the general technical specifications for a standard potentiometer. Note that specific values may vary depending on the model and manufacturer.

Parameter Specification
Resistance Range 1 kΩ to 1 MΩ (common values)
Power Rating 0.1 W to 2 W
Tolerance ±10% to ±20%
Operating Voltage Up to 250 V (depending on model)
Rotation Angle 270° (typical for rotary potentiometers)
Temperature Range -40°C to +125°C

Pin Configuration

Potentiometers typically have three pins, as described below:

Pin Name Description
1 Terminal 1 One end of the resistive track. Connect to the voltage source or ground.
2 Wiper The adjustable middle pin. Outputs the variable voltage based on the knob's position.
3 Terminal 2 The other end of the resistive track. Connect to ground or the voltage source.

Usage Instructions

How to Use a Potentiometer in a Circuit

  1. Connect the Terminals:

    • Connect Terminal 1 to the voltage source (e.g., 5V).
    • Connect Terminal 2 to ground.
    • The Wiper (Pin 2) will provide a variable voltage output based on the knob's position.
  2. Use as a Voltage Divider:

    • A potentiometer can act as a voltage divider by providing a variable output voltage between the input voltage and ground.
    • The output voltage at the Wiper is determined by the ratio of resistances on either side of the Wiper.
  3. Use as a Variable Resistor:

    • To use the potentiometer as a variable resistor, connect only two pins: one terminal and the Wiper.

Important Considerations:

  • Power Rating: Ensure the potentiometer's power rating is not exceeded to avoid overheating or damage.
  • Mechanical Limits: Do not force the knob beyond its rotation limits to prevent mechanical failure.
  • Noise: Some potentiometers may introduce electrical noise when adjusted. Use high-quality components for sensitive applications.

Example: Connecting a Potentiometer to an Arduino UNO

Below is an example of how to use a potentiometer to read analog values with an Arduino UNO.

Circuit Setup:

  • Connect Terminal 1 to the 5V pin on the Arduino.
  • Connect Terminal 2 to the GND pin on the Arduino.
  • Connect the Wiper (Pin 2) to an analog input pin (e.g., A0) on the Arduino.

Arduino Code:

// Potentiometer Example with Arduino UNO
// Reads the analog value from the potentiometer and prints it to the Serial Monitor.

const int potPin = A0; // Pin connected to the potentiometer's Wiper
int potValue = 0;      // Variable to store the potentiometer value

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  potValue = analogRead(potPin); // Read the analog value (0-1023)
  Serial.print("Potentiometer Value: ");
  Serial.println(potValue); // Print the value to the Serial Monitor
  delay(100); // Small delay for stability
}

Troubleshooting and FAQs

Common Issues:

  1. No Output Voltage:

    • Check the connections to ensure the potentiometer is wired correctly.
    • Verify that the voltage source is functioning.
  2. Inconsistent or Noisy Output:

    • Dust or wear on the resistive track can cause noise. Clean or replace the potentiometer if necessary.
    • Use a capacitor across the Wiper and ground to reduce noise.
  3. Overheating:

    • Ensure the power rating of the potentiometer is not exceeded.
    • Use a heat sink or choose a higher-rated potentiometer if necessary.

FAQs:

Q: Can I use a potentiometer to control motor speed?
A: Yes, but not directly. A potentiometer can be used to adjust the input signal to a motor driver or PWM controller, which then controls the motor speed.

Q: What type of potentiometer should I use for audio applications?
A: Use logarithmic (audio taper) potentiometers for audio volume control, as they match the human ear's perception of sound.

Q: How do I know the resistance value of my potentiometer?
A: The resistance value is usually printed on the body of the potentiometer (e.g., "10k" for 10 kΩ). You can also measure it with a multimeter.

By following this documentation, you can effectively use a potentiometer in your electronic projects!
