How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

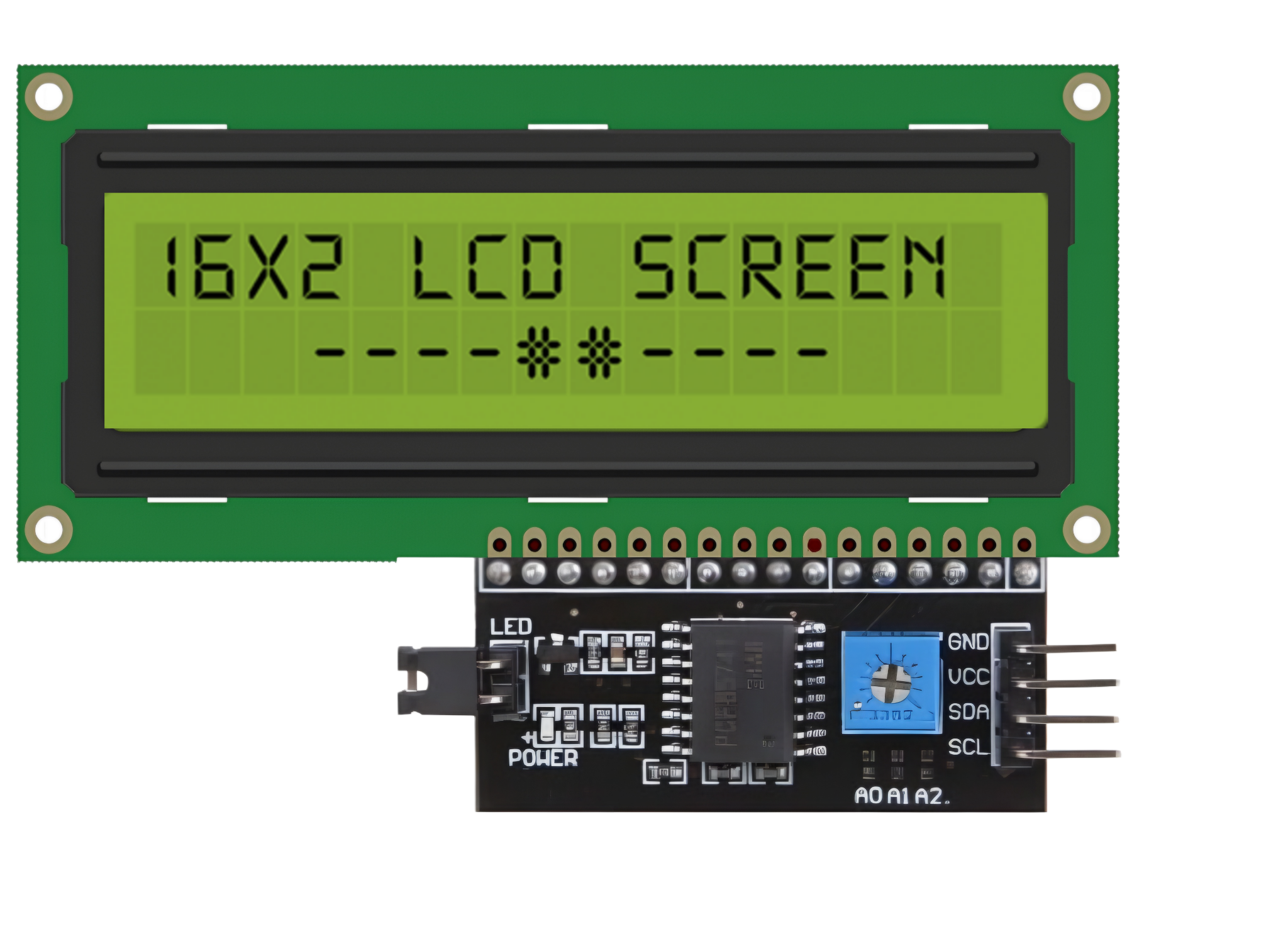

Image of LCD 16x2 attached i2cDesign with LCD 16x2 attached i2c in Cirkit Designer

Introduction

The LCD 16x2 attached I2C is a 16-character by 2-line alphanumeric display module that uses I2C (Inter-Integrated Circuit) communication. This module simplifies interfacing with microcontrollers by reducing the number of required connections, making it ideal for projects where pin availability is limited. The I2C interface is integrated via a backpack module, which is soldered to the LCD.

Explore Projects Built with LCD 16x2 attached i2c

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino Leonardo Controlled LCD Display with I2C Interface: A project utilizing LCD 16x2 attached i2c in a practical application
Arduino Leonardo Controlled LCD Display with I2C Interface

This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

Key Technical Details

Parameter Value
Display Type 16x2 alphanumeric LCD
Communication Protocol I2C
Operating Voltage 5V DC
Backlight LED (controllable via code)
Contrast Adjustment Potentiometer on I2C backpack
I2C Address (Default) 0x27 or 0x3F (varies by model)
Operating Temperature -20°C to 70°C
Dimensions 80mm x 36mm x 12mm

Pin Configuration and Descriptions

The I2C backpack reduces the number of pins required to just four. Below is the pin configuration:

Pin Name Description
VCC Power supply (5V DC)
GND Ground
SDA Serial Data Line (I2C data)
SCL Serial Clock Line (I2C clock)

Usage Instructions

How to Use the Component in a Circuit

  1. Wiring the LCD to a Microcontroller:

    • Connect the VCC pin of the LCD to the 5V pin of the microcontroller.
    • Connect the GND pin of the LCD to the ground (GND) pin of the microcontroller.
    • Connect the SDA pin of the LCD to the SDA pin of the microcontroller (e.g., A4 on Arduino UNO).
    • Connect the SCL pin of the LCD to the SCL pin of the microcontroller (e.g., A5 on Arduino UNO).
  2. Install Required Libraries:

    • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
      • Go to Sketch > Include Library > Manage Libraries.
      • Search for LiquidCrystal_I2C and install the library.
  3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

    // Include the LiquidCrystal_I2C library
    #include <Wire.h>
    #include <LiquidCrystal_I2C.h>

    // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
    LiquidCrystal_I2C lcd(0x27, 16, 2);

    void setup() {
      lcd.begin(); // Initialize the LCD
      lcd.backlight(); // Turn on the backlight
      lcd.setCursor(0, 0); // Set cursor to the first column, first row
      lcd.print("Hello, World!"); // Print text to the LCD
    }

    void loop() {
      // No actions in the loop for this example
    }


Important Considerations and Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. LCD Not Displaying Anything:

    • Check the wiring connections for errors.
    • Verify the I2C address using an I2C scanner sketch.
    • Adjust the contrast potentiometer on the I2C backpack.
  2. Flickering or Unstable Display:

    • Ensure the power supply is stable and sufficient (5V DC).
    • Check for loose connections in the circuit.
  3. Incorrect or Garbled Characters:

    • Verify that the correct I2C address is being used in the code.
    • Ensure the LiquidCrystal_I2C library is properly installed and up to date.
  4. Backlight Not Working:

    • Ensure the lcd.backlight() function is called in the code.
    • Check for any physical damage to the backlight circuit.

FAQs

Q: How do I find the I2C address of my LCD module?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and the serial monitor will display the detected address.

Q: Can I use this LCD with a 3.3V microcontroller?
A: While the LCD itself requires 5V, some I2C backpacks are compatible with 3.3V logic levels. Check your specific module's datasheet for compatibility.

Q: How do I display custom characters on the LCD?
A: The LiquidCrystal_I2C library supports custom characters. Use the createChar() function to define and display custom characters.

Q: Can I connect multiple I2C devices to the same microcontroller?
A: Yes, I2C supports multiple devices on the same bus. Ensure each device has a unique address.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 attached I2C module in your projects.
