How to Use Fermion | 10 DOF IMU Sensor - ADXL345+ITG3205+VCM5883L+BMP280: Examples, Pinouts, and Specs

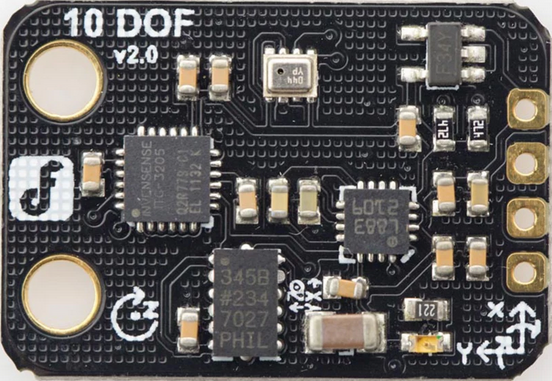

The Fermion 10 DOF IMU Sensor is a highly integrated module that combines four powerful sensors:

• ADXL345: A 3-axis accelerometer for measuring linear acceleration.
• ITG3205: A 3-axis gyroscope for angular velocity measurements.
• VCM5883L: A 3-axis magnetometer for detecting magnetic fields.
• BMP280: A barometric pressure sensor for altitude and environmental pressure data.

This sensor provides comprehensive motion and environmental data, making it ideal for applications such as:

• Robotics and autonomous systems
• Drones and UAVs for navigation and stabilization
• Wearable devices for motion tracking
• Environmental monitoring systems

The module communicates via I2C, making it easy to interface with microcontrollers like the Arduino UNO.

1. Wiring:

   • Connect the VCC pin to the Arduino's 5V pin.
   • Connect the GND pin to the Arduino's GND pin.
   • Connect the SDA pin to the Arduino's A4 pin (I2C data line).
   • Connect the SCL pin to the Arduino's A5 pin (I2C clock line).

2. Install Required Libraries:

   • Install the following libraries in the Arduino IDE:
     • Adafruit_Sensor
     • Adafruit_ADXL345
     • Adafruit_BMP280
     • Wire.h

3. Sample Code:
   Below is an example Arduino sketch to read data from the sensor:

   #include <Wire.h>
   #include <Adafruit_Sensor.h>
   #include <Adafruit_ADXL345_U.h>
   #include <Adafruit_BMP280.h>

   // Create sensor objects
   Adafruit_ADXL345_Unified accel = Adafruit_ADXL345_Unified(12345);
   Adafruit_BMP280 bmp;

   void setup() {
     Serial.begin(9600);
     Serial.println("Initializing 10 DOF IMU Sensor...");

     // Initialize accelerometer
     if (!accel.begin()) {
       Serial.println("Failed to initialize ADXL345 accelerometer!");
       while (1);
     }
     Serial.println("ADXL345 initialized.");

     // Initialize barometric pressure sensor
     if (!bmp.begin(0x76)) { // Default I2C address for BMP280
       Serial.println("Failed to initialize BMP280!");
       while (1);
     }
     Serial.println("BMP280 initialized.");
   }

   void loop() {
     // Read accelerometer data
     sensors_event_t event;
     accel.getEvent(&event);
     Serial.print("Accel X: "); Serial.print(event.acceleration.x); Serial.print(" m/s^2, ");
     Serial.print("Y: "); Serial.print(event.acceleration.y); Serial.print(" m/s^2, ");
     Serial.print("Z: "); Serial.print(event.acceleration.z); Serial.println(" m/s^2");

     // Read barometric pressure and temperature
     Serial.print("Pressure: "); Serial.print(bmp.readPressure()); Serial.println(" Pa");
     Serial.print("Temperature: "); Serial.print(bmp.readTemperature()); Serial.println(" °C");

     delay(1000); // Wait 1 second before next reading
   }


• Power Supply: Ensure the module is powered with a stable voltage between 3.3V and 5V.
• I2C Address Conflicts: If using multiple I2C devices, ensure their addresses do not conflict.
• Interrupt Pin: The INT pin can be used for advanced features like motion detection, but it is optional.

1. Sensor Not Detected:

   • Ensure the wiring is correct and matches the pin configuration.
   • Verify that the I2C addresses in the code match the sensor's default addresses.

2. Incorrect or No Data:

   • Check the power supply voltage (3.3V to 5V).
   • Ensure the required libraries are installed and up to date.

3. I2C Communication Errors:

   • Use pull-up resistors (4.7kΩ to 10kΩ) on the SDA and SCL lines if communication is unstable.

Q: Can I use this sensor with a 3.3V microcontroller?
A: Yes, the sensor is compatible with both 3.3V and 5V systems.

Q: How do I change the accelerometer or gyroscope range?
A: The range can be configured by writing to specific registers in the ADXL345 or ITG3205. Refer to their datasheets for details.

Q: Can I use this sensor for GPS-based navigation?
A: While the sensor provides motion and environmental data, it does not include GPS functionality. However, it can complement a GPS module for navigation systems.

This documentation provides a comprehensive guide to using the Fermion 10 DOF IMU Sensor. For further assistance, refer to the manufacturer's datasheets or community forums.
