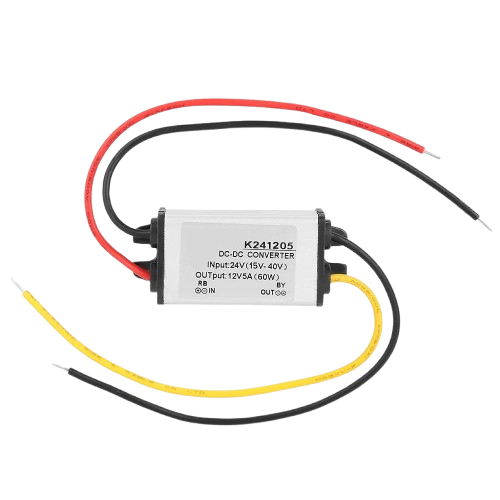

Image of  DC 24V 12V to 5V 5A 25W Step Down Converter
Cirkit Designer LogoDesign with DC 24V 12V to 5V 5A 25W Step Down Converter in Cirkit Designer

Introduction

The DC 24V 12V to 5V 5A 25W Step Down Converter by MechaTinker is a high-efficiency DC-DC step-down voltage regulator. It is designed to convert input voltages of 24V or 12V to a stable 5V output, making it ideal for powering 5V devices such as microcontrollers, sensors, and USB-powered peripherals. With a maximum output current of 5A and a power rating of 25W, this converter is suitable for a wide range of applications, including automotive electronics, industrial systems, and DIY projects.

Explore Projects Built with DC 24V 12V to 5V 5A 25W Step Down Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
24V to 5V Power Supply Using 7805 and Bridge Rectifier
Image of evs transmitter: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
This circuit converts a 220V AC input to a regulated 5V DC output. It uses a power transformer to step down the voltage to 24V AC, which is then rectified by a bridge rectifier and regulated by a 7805 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Push Switch Control and Voltage Regulation
Image of Transformer safty device complete: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
24V to 5V Power Supply with 7805 Voltage Regulator and Bridge Rectifier
Image of convert AC to DC: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
This circuit converts 220V AC to 5V DC using a power transformer, a bridge rectifier, and a 7805 voltage regulator. The transformer steps down the voltage to 24V AC, which is then rectified to DC by the bridge rectifier. The 7805 regulator further stabilizes the output to 5V DC, with additional filtering provided by capacitors and a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC 24V 12V to 5V 5A 25W Step Down Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of test 1 ih: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of evs transmitter: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
24V to 5V Power Supply Using 7805 and Bridge Rectifier
This circuit converts a 220V AC input to a regulated 5V DC output. It uses a power transformer to step down the voltage to 24V AC, which is then rectified by a bridge rectifier and regulated by a 7805 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Transformer safty device complete: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
LED Array with Push Switch Control and Voltage Regulation
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of convert AC to DC: A project utilizing  DC 24V 12V to 5V 5A 25W Step Down Converter in a practical application
24V to 5V Power Supply with 7805 Voltage Regulator and Bridge Rectifier
This circuit converts 220V AC to 5V DC using a power transformer, a bridge rectifier, and a 7805 voltage regulator. The transformer steps down the voltage to 24V AC, which is then rectified to DC by the bridge rectifier. The 7805 regulator further stabilizes the output to 5V DC, with additional filtering provided by capacitors and a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering 5V microcontrollers (e.g., Arduino, Raspberry Pi)
  • USB device charging
  • Automotive electronics (e.g., powering dash cams, GPS units)
  • Industrial control systems
  • DIY electronics projects requiring a stable 5V supply

Technical Specifications

Key Specifications

Parameter Value
Manufacturer MechaTinker
Part ID DC 24V 12V to 5V 5A 25W
Input Voltage Range 8V to 40V
Output Voltage 5V (±2% tolerance)
Maximum Output Current 5A
Maximum Power Output 25W
Efficiency Up to 96%
Operating Temperature -40°C to +85°C
Dimensions 60mm x 40mm x 20mm
Weight 50g

Pin Configuration and Descriptions

The converter has four input/output terminals for easy integration into circuits. The pin configuration is as follows:

Pin Label Description
VIN+ Positive input voltage (8V to 40V)
VIN- Negative input voltage (ground)
VOUT+ Positive 5V output
VOUT- Negative 5V output (ground)

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage:
    • Attach the positive input voltage (e.g., 12V or 24V) to the VIN+ terminal.
    • Connect the ground of the input voltage source to the VIN- terminal.
  2. Connect the Output Load:
    • Connect the positive terminal of your 5V load (e.g., microcontroller, USB device) to the VOUT+ terminal.
    • Connect the ground of your load to the VOUT- terminal.
  3. Verify Connections:
    • Double-check all connections to ensure proper polarity and secure wiring.
  4. Power On:
    • Turn on the input voltage source. The converter will regulate the input voltage to a stable 5V output.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range (8V to 40V). Exceeding this range may damage the converter.
  • Heat Dissipation: For high-current applications, ensure adequate ventilation or attach a heatsink to prevent overheating.
  • Polarity Protection: Double-check the polarity of the input and output connections to avoid damage.
  • Load Requirements: Do not exceed the maximum output current of 5A or the power rating of 25W.
  • Noise Filtering: If using the converter in sensitive applications, consider adding capacitors at the input and output terminals to reduce noise.

Example: Using with an Arduino UNO

The converter can be used to power an Arduino UNO from a 12V or 24V source. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect the VIN+ terminal of the converter to the positive terminal of a 12V battery.
  • Connect the VIN- terminal to the battery ground.
  • Connect the VOUT+ terminal to the Arduino UNO's 5V pin.
  • Connect the VOUT- terminal to the Arduino UNO's GND pin.

Arduino Code Example

// Example code to blink an LED connected to pin 13
// Ensure the Arduino is powered via the 5V output of the converter

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
No output voltage Incorrect wiring or polarity Verify all connections and polarity.
Output voltage is unstable Input voltage is too low or noisy Ensure input voltage is within range and stable.
Converter overheats Excessive load or poor ventilation Reduce load or improve cooling.
Device connected to output not working Output current insufficient Ensure load does not exceed 5A.

FAQs

  1. Can I use this converter with a 9V battery?
    • Yes, as long as the battery voltage remains above 8V under load.
  2. Is the converter waterproof?
    • No, the converter is not waterproof. Use it in a dry environment or enclose it in a waterproof case.
  3. Can I use this converter to charge a USB device?
    • Yes, the 5V output is suitable for USB devices. Ensure the device's current requirements do not exceed 5A.

This concludes the documentation for the DC 24V 12V to 5V 5A 25W Step Down Converter by MechaTinker. For further assistance, refer to the manufacturer's datasheet or contact technical support.
