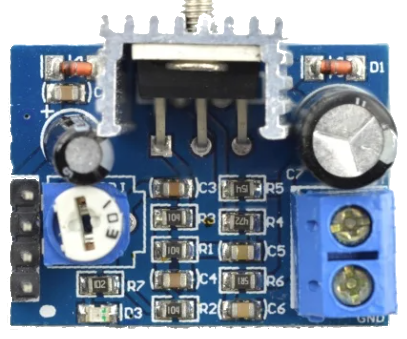

Design with Mono Amp 6-12V 18W TDA2030 in Cirkit DesignerThe Mono Amp 6-12V 18W TDA2030 is a compact and efficient mono audio amplifier module designed for high-quality audio applications. It operates within a voltage range of 6-12V and delivers up to 18W of output power. At its core is the TDA2030 integrated circuit, which is renowned for its high performance, low harmonic distortion, and thermal stability. This amplifier is ideal for use in DIY audio projects, home audio systems, and portable speaker designs.
This circuit is a Bluetooth-enabled audio amplifier system with a subwoofer pre-amp and dual 8-ohm speakers. It includes a 12V power supply, a 7805 voltage regulator, and a cooling fan, with a toggle switch to control power. The Bluetooth module provides audio input to the amplifiers, which drive the speakers and subwoofer.
Open Project in Cirkit Designer
This circuit is a portable audio playback system powered by two 18650 Li-ion batteries, which are charged and protected by a TP4056 module. The MP3 module provides audio signals to a 5V amplifier board, which then drives two speakers. A push switch is used to control the power to the MP3 module and amplifier.
Open Project in Cirkit Designer
This is a portable audio-visual device featuring two Wemos microcontrollers for processing, Adafruit MAX4466 microphone amplifiers for audio input, and an LCD TFT screen for display. It includes power management with TP4056 modules and LiPo batteries, and user-controlled toggle and rocker switches.
Open Project in Cirkit Designer
This circuit is a Bluetooth-enabled audio system powered by a rechargeable 18650 Li-ion battery. It includes a TP4056 module for battery charging and protection, a PAM8403 amplifier with volume control to drive two loudspeakers, and a Bluetooth audio receiver to wirelessly receive audio signals.
Open Project in Cirkit DesignerBelow are the key technical details and pin configuration of the Mono Amp 6-12V 18W TDA2030:
| Parameter | Specification |
|---|---|
| Operating Voltage Range | 6V to 12V DC |
| Output Power | Up to 18W |
| Integrated Circuit | TDA2030 |
| Frequency Response | 20 Hz to 20 kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Input Impedance | 100 kΩ |
| Output Impedance | 4Ω to 8Ω |
| Efficiency | High |
| Thermal Protection | Built-in |
The TDA2030 IC used in this amplifier module has the following pin configuration:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | Non-Inverting Input (+) | Audio signal input (positive terminal) |
| 2 | Inverting Input (-) | Audio signal input (negative terminal) |
| 3 | V- (Ground) | Ground connection |
| 4 | Output | Amplified audio signal output |
| 5 | V+ (Supply Voltage) | Positive power supply input |
The Mono Amp 6-12V 18W TDA2030 can be used with an Arduino UNO to amplify audio signals generated by the microcontroller. Below is an example of Arduino code to generate a simple tone:
// Example: Generating a tone using Arduino UNO
// Connect the Arduino's PWM pin (e.g., pin 9) to the amplifier's input
int speakerPin = 9; // PWM pin connected to the amplifier input
void setup() {
pinMode(speakerPin, OUTPUT); // Set the pin as output
}
void loop() {
// Generate a 1 kHz tone for 1 second
tone(speakerPin, 1000, 1000);
delay(2000); // Wait for 2 seconds before repeating
}
Note: Use a low-pass filter (e.g., a resistor and capacitor) between the Arduino and the amplifier input to smooth the PWM signal and improve audio quality.
| Issue | Possible Cause | Solution |
|---|---|---|
| No sound output | Incorrect wiring or loose connections | Verify all connections and wiring. |
| Distorted audio | Overdriven input signal or low voltage | Reduce input signal level or check power supply. |
| Amplifier overheating | Insufficient heat dissipation | Attach a heatsink or improve ventilation. |
| Noise or hum in output | Poor grounding or interference | Use shielded cables and ensure proper grounding. |
| Low volume | Mismatched speaker impedance | Use a 4Ω or 8Ω speaker as recommended. |
Can I use a 12V battery to power the amplifier?
What is the maximum speaker wattage I can use?
Can I use this amplifier for stereo audio?
Is the TDA2030 IC replaceable?
By following this documentation, you can effectively integrate and troubleshoot the Mono Amp 6-12V 18W TDA2030 in your audio projects.
