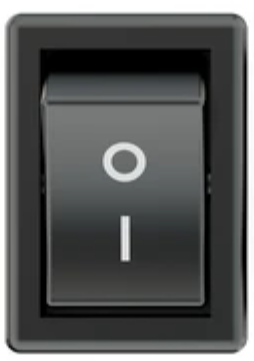

Image of switch
Cirkit Designer LogoDesign with switch in Cirkit Designer

Introduction

A switch is an electrical component that can open or close a circuit, allowing or interrupting the flow of current. It is one of the most fundamental components in electronics, used to control the operation of devices by manually or automatically toggling the flow of electricity. Switches come in various types, such as toggle switches, push-button switches, slide switches, and rotary switches, each suited for specific applications.

Explore Projects Built with switch

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Toggle Switch Controlled Lamp Circuit with Banana Sockets
Image of STAIRCASE: A project utilizing switch in a practical application
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
SPST Rocker Switch Array Circuit
Image of SWITCH CONNECTION: A project utilizing switch in a practical application
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Toggle Switch Circuit
Image of EXP. 7 E: A project utilizing switch in a practical application
This circuit consists of a toggle switch, a red LED, and a power source. The toggle switch controls the connection between the power source and the LED, allowing the LED to be turned on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Digital Logic State Indicator with Flip-Flops and Logic Gates
Image of 2-bit Gray Code Counter: A project utilizing switch in a practical application
This circuit is a digital logic system that uses a DIP switch to provide input to a network of flip-flops and logic gates, which process the input signals. The output of this processing is likely indicated by LEDs, which are connected through resistors to limit current. The circuit functions autonomously without a microcontroller, relying on the inherent properties of the digital components to perform its logic operations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with switch

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of STAIRCASE: A project utilizing switch in a practical application
Toggle Switch Controlled Lamp Circuit with Banana Sockets
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SWITCH CONNECTION: A project utilizing switch in a practical application
SPST Rocker Switch Array Circuit
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of EXP. 7 E: A project utilizing switch in a practical application
Battery-Powered LED Toggle Switch Circuit
This circuit consists of a toggle switch, a red LED, and a power source. The toggle switch controls the connection between the power source and the LED, allowing the LED to be turned on or off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 2-bit Gray Code Counter: A project utilizing switch in a practical application
Digital Logic State Indicator with Flip-Flops and Logic Gates
This circuit is a digital logic system that uses a DIP switch to provide input to a network of flip-flops and logic gates, which process the input signals. The output of this processing is likely indicated by LEDs, which are connected through resistors to limit current. The circuit functions autonomously without a microcontroller, relying on the inherent properties of the digital components to perform its logic operations.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Turning devices on or off (e.g., lights, appliances, and machinery)
  • Mode selection in electronic devices
  • User input in circuits (e.g., push-button switches in calculators or keyboards)
  • Safety mechanisms (e.g., emergency stop switches)
  • Signal routing in complex circuits

Technical Specifications

Switches vary widely in their specifications depending on the type and intended application. Below are general specifications for a typical mechanical switch:

Parameter Description
Voltage Rating Typically ranges from 3V to 250V, depending on the switch type
Current Rating Commonly ranges from 0.1A to 15A
Contact Resistance Typically less than 50 mΩ
Insulation Resistance Greater than 100 MΩ
Mechanical Lifespan 10,000 to 1,000,000 actuations, depending on the switch type
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The pin configuration of a switch depends on its type. Below is an example for a Single Pole Single Throw (SPST) switch:

Pin Name Description
1 Input Terminal Connects to the power source or signal input
2 Output Terminal Connects to the load or circuit to be controlled

For a Double Pole Double Throw (DPDT) switch, the pin configuration is as follows:

Pin Name Description
1, 4 Input Terminals Connect to the power source or signal inputs
2, 5 Common Terminals Connect to the load or circuit to be controlled
3, 6 Output Terminals Alternate outputs depending on the switch position

Usage Instructions

How to Use a Switch in a Circuit

  1. Identify the Switch Type: Determine whether the switch is SPST, SPDT, DPDT, etc., based on your circuit requirements.
  2. Connect the Terminals:
    • For an SPST switch, connect one terminal to the power source and the other to the load.
    • For more complex switches like DPDT, refer to the pin configuration table above.
  3. Secure the Connections: Use soldering or screw terminals to ensure a reliable connection.
  4. Test the Circuit: Toggle the switch to verify that it properly opens and closes the circuit.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Ensure the switch can handle the voltage and current of your circuit to avoid damage or failure.
  • Debouncing: Mechanical switches may produce noise or "bouncing" when toggled. Use a capacitor or software debounce logic to mitigate this issue.
  • Mounting: Secure the switch in a stable position to prevent accidental toggling or damage.
  • Safety: For high-voltage or high-current applications, use switches with appropriate insulation and safety certifications.

Example: Using a Switch with an Arduino UNO

Below is an example of how to use a push-button switch with an Arduino UNO to toggle an LED:

// Define pin numbers
const int switchPin = 2;  // Pin connected to the switch
const int ledPin = 13;    // Pin connected to the LED

// Variable to store the switch state
int switchState = 0;

void setup() {
  pinMode(switchPin, INPUT_PULLUP); // Set switch pin as input with pull-up resistor
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  switchState = digitalRead(switchPin); // Read the state of the switch

  if (switchState == LOW) { // If the switch is pressed (LOW due to pull-up)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Note: The INPUT_PULLUP mode is used to simplify the circuit by enabling the internal pull-up resistor of the Arduino.

Troubleshooting and FAQs

Common Issues

  1. Switch Not Working:

    • Cause: Loose or incorrect connections.
    • Solution: Double-check the wiring and ensure the terminals are properly connected.
  2. Switch Generates Noise or Unintended Signals:

    • Cause: Mechanical bouncing.
    • Solution: Add a debounce circuit (e.g., a capacitor) or implement software debouncing.
  3. Switch Overheats:

    • Cause: Exceeding the voltage or current rating.
    • Solution: Use a switch with appropriate ratings for your circuit.
  4. LED Does Not Respond in Arduino Circuit:

    • Cause: Incorrect pin configuration or faulty switch.
    • Solution: Verify the pin numbers in the code and test the switch with a multimeter.

FAQs

  • Q: Can I use a switch to control AC devices?
    A: Yes, but ensure the switch is rated for AC voltage and current. Use proper insulation and safety precautions.

  • Q: What is the difference between SPST and SPDT switches?
    A: SPST (Single Pole Single Throw) switches have one input and one output, while SPDT (Single Pole Double Throw) switches have one input and two outputs, allowing you to toggle between two circuits.

  • Q: How do I debounce a switch in software?
    A: Use a delay or a state-checking algorithm in your code to ignore rapid toggling caused by mechanical bouncing.

By following this documentation, you can effectively integrate switches into your electronic projects and troubleshoot common issues.
