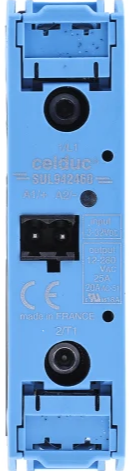

Image of SSR
Cirkit Designer LogoDesign with SSR in Cirkit Designer

Introduction

A Solid State Relay (SSR) is an electronic switching device that uses semiconductor components, such as thyristors, triacs, or transistors, to control the flow of electrical power to a load. Unlike traditional electromechanical relays, SSRs have no moving parts, which allows for faster switching, silent operation, and a significantly longer lifespan. SSRs are widely used in applications where reliability, speed, and durability are critical.

Explore Projects Built with SSR

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Temperature-Controlled Heating System with SSR and Titanium Resistor
Image of Wire Cut Four Slider 33-2 & 33-3 (Old): A project utilizing SSR in a practical application
This circuit is a temperature control system that uses a temperature controller to regulate a heating titanium resistor via a solid-state relay (SSR). The power transformer supplies the necessary voltage to the temperature controller, which in turn controls the SSR to manage the heating element.
Cirkit Designer LogoOpen Project in Cirkit Designer
PID Temperature Control System with Thermocouple and SSR
Image of IR: A project utilizing SSR in a practical application
This circuit is a temperature control system that uses a thermocouple to measure temperature and a PID controller to regulate it. The PID controller drives a solid-state relay (SSR) to control an external load, with power supplied through an AC inlet socket.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled Servo Gate System with Pushbutton Activation
Image of Blastgate: A project utilizing SSR in a practical application
This circuit uses an ESP32 microcontroller to control five servos and two solid-state relays (SSRs) based on the state of five pushbuttons. The servos are used to open and close gates, while the SSRs control two motors, which are activated depending on the number of active gates.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Multi-Stage Coin-Operated Car Wash System with LCD Display
Image of 4in1: A project utilizing SSR in a practical application
This circuit is a coin-operated control system for a multi-stage process, such as a car wash, managed by an Arduino microcontroller. It includes solid-state relays to control high-power devices, an LCD for user interface, and arcade buttons for user input. The system allows users to insert coins to activate different stages, with settings adjustable via a long-press menu.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SSR

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wire Cut Four Slider 33-2 & 33-3 (Old): A project utilizing SSR in a practical application
Temperature-Controlled Heating System with SSR and Titanium Resistor
This circuit is a temperature control system that uses a temperature controller to regulate a heating titanium resistor via a solid-state relay (SSR). The power transformer supplies the necessary voltage to the temperature controller, which in turn controls the SSR to manage the heating element.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IR: A project utilizing SSR in a practical application
PID Temperature Control System with Thermocouple and SSR
This circuit is a temperature control system that uses a thermocouple to measure temperature and a PID controller to regulate it. The PID controller drives a solid-state relay (SSR) to control an external load, with power supplied through an AC inlet socket.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Blastgate: A project utilizing SSR in a practical application
ESP32-Based Wi-Fi Controlled Servo Gate System with Pushbutton Activation
This circuit uses an ESP32 microcontroller to control five servos and two solid-state relays (SSRs) based on the state of five pushbuttons. The servos are used to open and close gates, while the SSRs control two motors, which are activated depending on the number of active gates.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 4in1: A project utilizing SSR in a practical application
Arduino-Controlled Multi-Stage Coin-Operated Car Wash System with LCD Display
This circuit is a coin-operated control system for a multi-stage process, such as a car wash, managed by an Arduino microcontroller. It includes solid-state relays to control high-power devices, an LCD for user interface, and arcade buttons for user input. The system allows users to insert coins to activate different stages, with settings adjustable via a long-press menu.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation and process control
  • Heating, ventilation, and air conditioning (HVAC) systems
  • Motor control and lighting systems
  • Home appliances and smart home devices
  • Temperature control systems (e.g., ovens, furnaces)
  • High-speed switching in electronic circuits

Technical Specifications

Below are the key technical details for the SSR component:

Parameter Value
Manufacturer SSR
Manufacturer Part ID SSR
Input Control Voltage 3-32 V DC
Output Load Voltage 24-380 V AC
Output Load Current 2-40 A (varies by model)
Isolation Voltage ≥ 2500 V AC
Switching Speed ≤ 10 ms
Operating Temperature -30°C to +80°C
Dielectric Strength ≥ 2.5 kV
Mounting Type Panel-mounted
Output Type Normally Open (NO)

Pin Configuration and Descriptions

The SSR typically has four terminals, as described in the table below:

Pin Number Name Description
1 Input (+) Positive terminal for the control signal (DC voltage input).
2 Input (-) Negative terminal for the control signal (DC voltage input).
3 Load Terminal 1 Connects to one side of the AC load.
4 Load Terminal 2 Connects to the other side of the AC load and the AC power source.

Usage Instructions

How to Use the SSR in a Circuit

  1. Control Signal Connection: Connect the control signal (e.g., from a microcontroller or switch) to the input terminals of the SSR. Ensure the control voltage is within the specified range (3-32 V DC).
  2. Load Connection: Connect the AC load to the load terminals of the SSR. One terminal of the load should connect to Load Terminal 1, and the other terminal should connect to Load Terminal 2.
  3. Power Source: Connect the AC power source to the load circuit. Ensure the voltage and current ratings of the SSR match the load requirements.
  4. Mounting: Secure the SSR to a heat sink or panel to ensure proper heat dissipation, especially for high-current applications.

Important Considerations and Best Practices

  • Heat Dissipation: Use a heat sink or cooling fan if the SSR operates at high currents to prevent overheating.
  • Snubber Circuit: For inductive loads (e.g., motors), use a snubber circuit to suppress voltage spikes and protect the SSR.
  • Isolation: Ensure proper electrical isolation between the control and load sides to prevent damage to the control circuit.
  • Polarity: Observe the correct polarity when connecting the control signal to avoid malfunction or damage.
  • Testing: Before connecting the load, test the SSR with a multimeter to verify proper operation.

Example: Using an SSR with an Arduino UNO

Below is an example of how to control an SSR using an Arduino UNO to switch an AC load:

// Example: Controlling an SSR with Arduino UNO
// This code toggles an AC load ON and OFF every 2 seconds using an SSR.

const int ssrPin = 9; // Pin connected to the SSR control input

void setup() {
  pinMode(ssrPin, OUTPUT); // Set the SSR pin as an output
}

void loop() {
  digitalWrite(ssrPin, HIGH); // Turn the SSR (and load) ON
  delay(2000);                // Wait for 2 seconds
  digitalWrite(ssrPin, LOW);  // Turn the SSR (and load) OFF
  delay(2000);                // Wait for 2 seconds
}

Note: Ensure the SSR's input voltage is compatible with the Arduino's 5V output. If necessary, use a resistor or optocoupler for additional protection.

Troubleshooting and FAQs

Common Issues and Solutions

  1. SSR Not Switching the Load

    • Cause: Insufficient control voltage or incorrect polarity.
    • Solution: Verify the control voltage is within the specified range (3-32 V DC) and check the polarity of the input connections.
  2. Overheating

    • Cause: Excessive current through the SSR or inadequate heat dissipation.
    • Solution: Use a heat sink or cooling fan and ensure the load current does not exceed the SSR's rated capacity.
  3. Load Not Turning Off

    • Cause: Leakage current in the SSR.
    • Solution: Use a load with a higher minimum operating current or add a bleeder resistor across the load.
  4. Noise or Voltage Spikes

    • Cause: Inductive load causing back EMF.
    • Solution: Add a snubber circuit or varistor to suppress voltage spikes.

FAQs

Q1: Can an SSR be used with DC loads?
A1: No, most SSRs are designed for AC loads. For DC loads, use a DC-specific solid-state relay.

Q2: How do I know if my SSR is working?
A2: Use a multimeter to check the continuity across the load terminals when the control signal is applied. The SSR should close the circuit when activated.

Q3: Can I use an SSR without a heat sink?
A3: For low-current applications, a heat sink may not be necessary. However, for high-current loads, a heat sink is essential to prevent overheating.

Q4: What is the advantage of an SSR over a mechanical relay?
A4: SSRs offer faster switching, silent operation, longer lifespan, and better reliability due to the absence of moving parts.
