How to Use esp32: Examples, Pinouts, and Specs

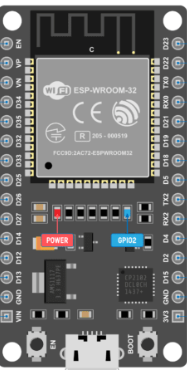

Image of esp32
Cirkit Designer LogoDesign with esp32 in Cirkit Designer

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful microcontroller for a wide range of projects.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arena 2: A project utilizing esp32 in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing esp32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing esp32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Robotics and drones
  • Industrial automation
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

Key Technical Details

Specification Value
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 4.2 and BLE
Operating Voltage 3.0V to 3.6V
GPIO Pins Up to 34
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power (varies by mode)
Operating Temperature Range -40°C to 125°C

Pin Configuration and Descriptions

The ESP32 has multiple GPIO pins that can be configured for various functions. Below is a table summarizing the pin configuration:

Pin Name Functionality Notes
GPIO0 Input/Output, Boot Mode Selection Pulled low to enter bootloader mode
GPIO2 Input/Output, ADC, DAC Used for general-purpose I/O
GPIO4 Input/Output, ADC, PWM Supports analog and digital signals
GPIO12 Input/Output, ADC, Touch Sensor Can be used as a capacitive touch pin
GPIO13 Input/Output, ADC, Touch Sensor Supports PWM and touch sensing
GPIO15 Input/Output, ADC, PWM General-purpose I/O
GPIO16 Input/Output Used for digital signals
GPIO17 Input/Output General-purpose I/O
EN Enable Pin Active high to enable the chip
VIN Power Input Connect to 5V for power
GND Ground Connect to ground

Note: Not all GPIO pins support all functions simultaneously. Refer to the ESP32 datasheet for detailed pin multiplexing information.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32:

    • The ESP32 can be powered via the VIN pin (5V) or through the micro-USB port (if available on the module). Ensure the power supply is stable and within the operating voltage range (3.0V to 3.6V).
  2. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals. Configure the pins in your code to match the required functionality (e.g., input, output, ADC, PWM).
  3. Programming the ESP32:

    • The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments. Install the necessary board support package (BSP) for your chosen IDE.
  4. Uploading Code:

    • Connect the ESP32 to your computer via USB. Select the correct board and port in your IDE, then upload your code.

Important Considerations and Best Practices

  • Boot Mode: Ensure GPIO0 is pulled low during boot to enter programming mode.
  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
  • Wi-Fi and Bluetooth: Avoid placing the ESP32 near metal objects or enclosures that may interfere with wireless signals.

Example Code for Arduino IDE

Below is an example of how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Tip: Ensure the LED is connected with a current-limiting resistor (e.g., 220Ω) to prevent damage.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for your ESP32 module.
  2. Code Upload Fails:

    • Check that GPIO0 is pulled low during boot.
    • Verify the correct board and port are selected in the IDE.
  3. Wi-Fi Connection Issues:

    • Ensure the Wi-Fi credentials (SSID and password) are correct.
    • Check for interference or weak signal strength.
  4. Random Resets or Instability:

    • Use a stable power supply with sufficient current (at least 500mA).
    • Avoid using GPIO pins that are reserved for internal functions.

FAQs

Q: Can the ESP32 operate on battery power?
A: Yes, the ESP32 can be powered by batteries. Use a voltage regulator or a LiPo battery with a 3.3V output for optimal performance.

Q: How do I use the ESP32's Bluetooth functionality?
A: The ESP32 supports both Bluetooth Classic and BLE. Use libraries like BluetoothSerial or BLEDevice in the Arduino IDE to implement Bluetooth features.

Q: Can I use the ESP32 with 5V sensors?
A: Yes, but you will need level shifters to convert the 5V signals to 3.3V logic levels compatible with the ESP32.

Q: What is the maximum range of the ESP32's Wi-Fi?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues with ease.
