How to Use STA540: Examples, Pinouts, and Specs

The STA540 is a high-performance audio amplifier integrated circuit (IC) designed for driving speakers in consumer electronics. It is a dual-channel amplifier capable of delivering high-quality audio output with low distortion and high efficiency. The IC is equipped with integrated protection mechanisms, including thermal shutdown and short-circuit protection, ensuring reliable operation in demanding environments.

• Home audio systems
• Car audio amplifiers
• Active speaker systems
• Audio signal amplification in consumer electronics
• DIY audio amplifier projects

The STA540 is designed to deliver robust performance while maintaining audio fidelity. Below are its key technical specifications:

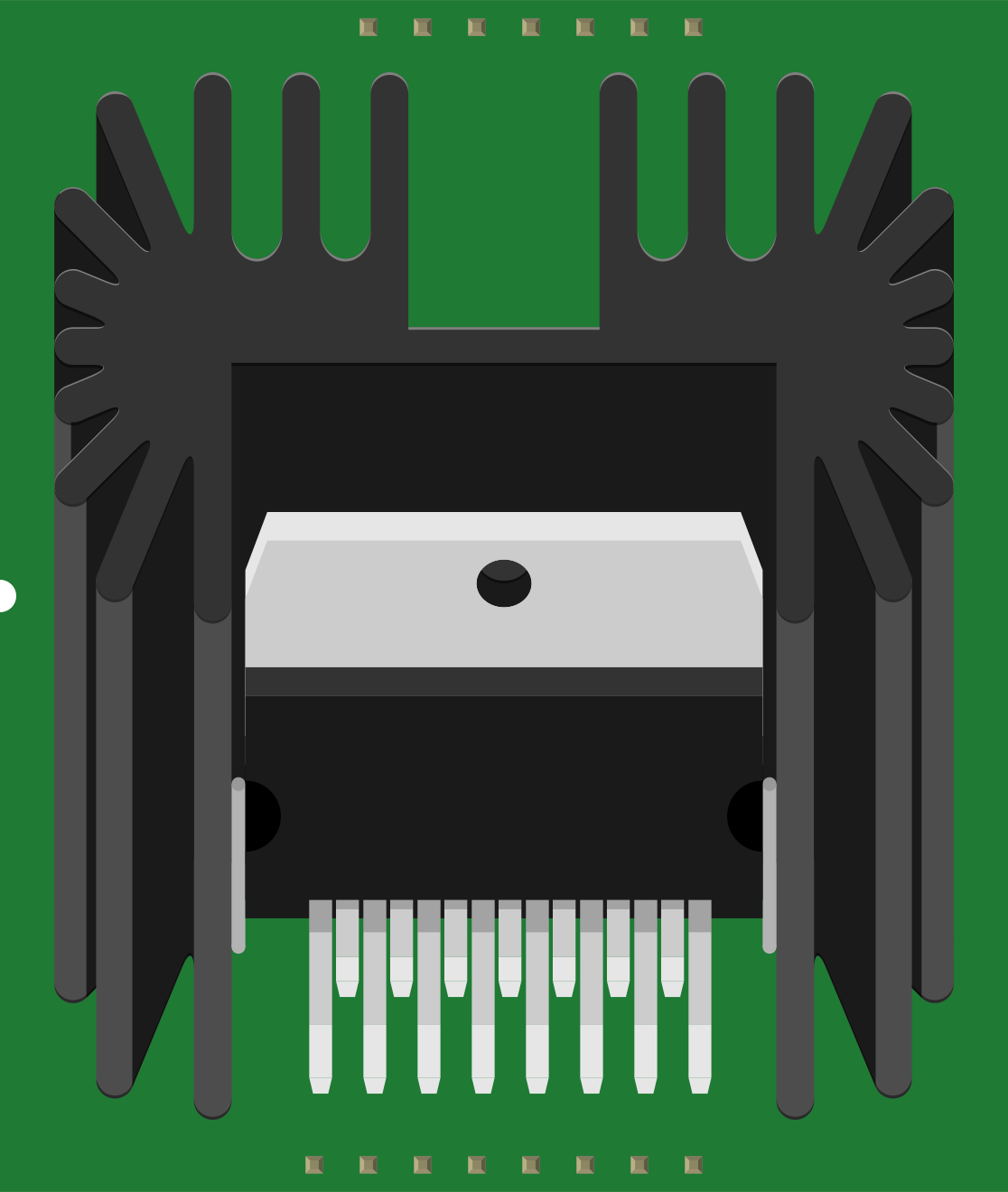

The STA540 is housed in a Multiwatt15 package with the following pin configuration:

1. Power Supply: Connect a DC power supply to the Vcc pin (pin 6) and ground (pins 4 and 8). Ensure the supply voltage is within the range of 8V to 22V.
2. Input Signal: Feed the audio input signals to the IN1+ (pin 1) and IN2+ (pin 10) pins for channels 1 and 2, respectively. Use IN1- (pin 2) and IN2- (pin 9) for the inverting inputs.
3. Output Connections: Connect the speaker terminals to OUT1 (pin 5) and OUT2 (pin 7) for channels 1 and 2, respectively.
4. Decoupling Capacitors: Place decoupling capacitors close to the Vcc pin to stabilize the power supply and reduce noise.
5. Heat Dissipation: Attach a heatsink to the IC to manage heat dissipation during operation, especially at high power levels.

• Use proper grounding techniques to minimize noise and interference.
• Ensure the load impedance (speaker impedance) matches the IC's specifications (typically 4Ω or 8Ω).
• Avoid exceeding the maximum supply voltage to prevent damage to the IC.
• Use a thermal paste or pad when attaching a heatsink for optimal heat transfer.
• For stereo applications, ensure both channels are properly balanced for consistent audio output.

The STA540 can be used with an Arduino UNO to amplify audio signals. Below is an example of how to generate a simple audio tone using the Arduino and feed it to the STA540:

// Example code to generate a tone using Arduino UNO and feed it to STA540
// Connect Arduino pin 9 to the IN1+ pin of the STA540

const int tonePin = 9; // Pin connected to STA540 IN1+

void setup() {
  pinMode(tonePin, OUTPUT); // Set the pin as an output
}

void loop() {
  // Generate a 1 kHz tone for 500 ms
  tone(tonePin, 1000, 500);
  delay(500); // Wait for 500 ms before repeating
}

Note: Use a coupling capacitor (e.g., 10 µF) between the Arduino output and the STA540 input to block DC offset.

1. No Output Signal

   • Cause: Incorrect wiring or no input signal.
   • Solution: Verify all connections and ensure the input signal is present.

2. Distorted Audio Output

   • Cause: Overdriven input signal or mismatched load impedance.
   • Solution: Reduce the input signal amplitude and ensure the speaker impedance matches the IC's specifications.

3. Overheating

   • Cause: Insufficient heat dissipation or excessive power output.
   • Solution: Attach a heatsink and ensure proper ventilation.

4. Humming or Noise

   • Cause: Poor grounding or power supply noise.
   • Solution: Use proper grounding techniques and add decoupling capacitors to the power supply.

Q1: Can the STA540 drive a single speaker in mono mode?
A1: Yes, the STA540 can be configured in bridge mode to drive a single speaker with higher power output.

Q2: What is the maximum speaker impedance supported?
A2: The STA540 is designed to work with speakers of 4Ω or 8Ω impedance.

Q3: Is the STA540 suitable for battery-powered applications?
A3: Yes, as long as the battery voltage is within the 8V to 22V range and can supply sufficient current.

Q4: Can I use the STA540 for subwoofer applications?
A4: Yes, the STA540 can be used for subwoofer applications when configured in bridge mode for higher power output.

This concludes the STA540 documentation. For further assistance, refer to the manufacturer's datasheet or contact technical support.
