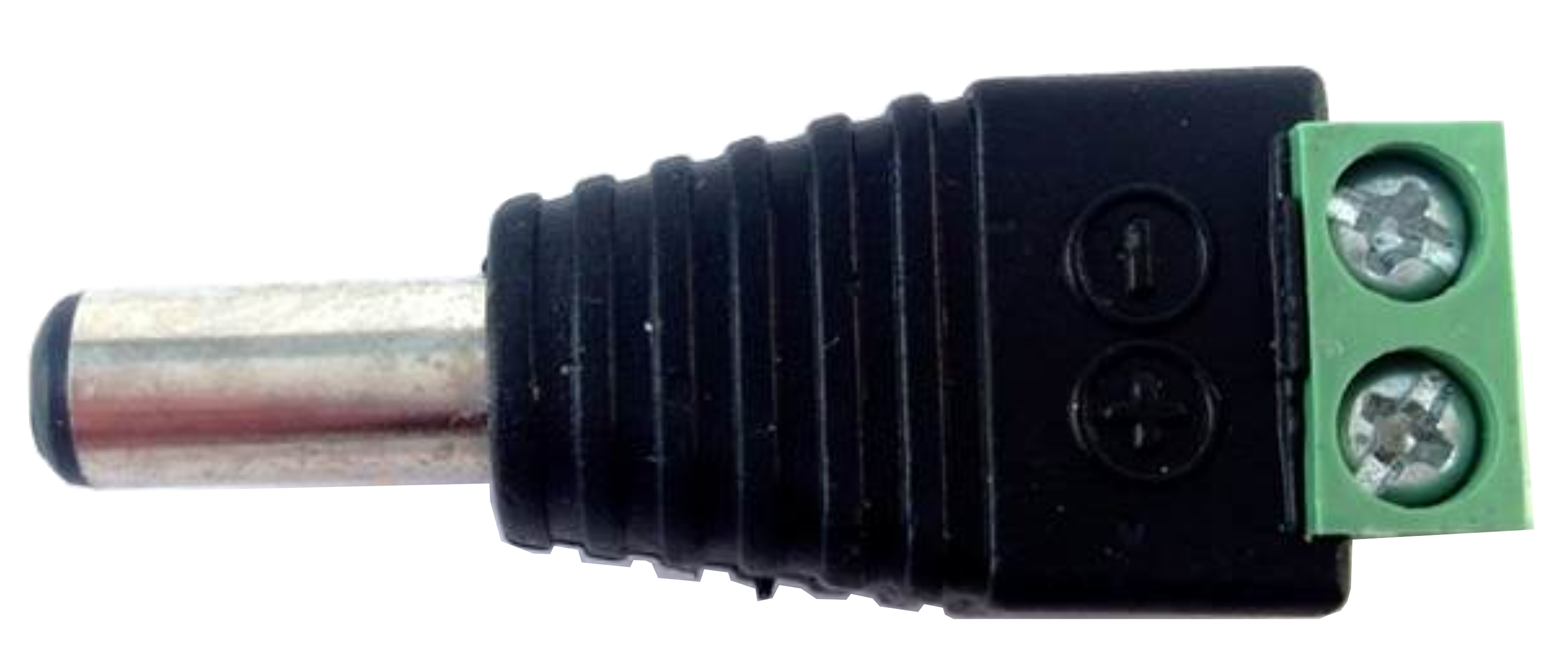

The Universal Barrel Jack Male is a cylindrical power connector designed for reliable and secure power supply connections. It features a central pin for positive voltage and an outer sleeve for ground, making it a widely used component in electronic devices. This connector is ideal for applications requiring a robust and standardized power input interface.
Explore Projects Built with Universal Barrel Jack Male
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
This circuit is a reverse vending machine for plastic bottles and cans, utilizing an Arduino Mega 2560 to interface with various sensors and actuators. It includes ultrasonic sensors for distance measurement, a load cell for weight measurement, micro servos for actuation, and a GSM module for communication. The system also features an LCD display for user interaction and uses inductive and photoelectric sensors for object detection.
Powering development boards (e.g., Arduino, Raspberry Pi with adapters)
Consumer electronics such as routers, modems, and audio equipment
DIY electronics projects and prototyping
Robotics and automation systems
Power adapters and chargers
Technical Specifications
Below are the key technical details for the Universal Barrel Jack Male:
Parameter
Specification
Manufacturer
Generic
Manufacturer Part ID
Universal Barrel Jack Male
Connector Type
Barrel Jack (Male)
Outer Diameter
5.5 mm (typical)
Inner Diameter (Pin)
2.1 mm (typical)
Voltage Rating
Up to 24V DC
Current Rating
Up to 5A
Material
Metal (conductive parts), Plastic (insulation)
Polarity
Central pin: Positive, Outer sleeve: Ground
Mounting Style
Solderable or crimpable terminals
Pin Configuration and Descriptions
The Universal Barrel Jack Male has two main connection points:
Pin
Description
Central Pin
Positive voltage terminal (V+)
Outer Sleeve
Ground terminal (GND)
Usage Instructions
How to Use the Component in a Circuit
Identify Polarity: Ensure the central pin is connected to the positive voltage (V+) and the outer sleeve is connected to ground (GND). Reversing polarity may damage your circuit.
Soldering:
Strip the wires of your power supply.
Solder the positive wire to the central pin terminal and the ground wire to the outer sleeve terminal.
Use heat shrink tubing or electrical tape to insulate the connections.
Mounting: Secure the barrel jack in place using a compatible socket or enclosure to prevent strain on the connections.
Testing: Use a multimeter to verify the voltage and polarity before connecting the barrel jack to your device.
Important Considerations and Best Practices
Voltage and Current Ratings: Ensure the power supply voltage and current do not exceed the component's ratings (24V DC, 5A).
Polarity Check: Always double-check the polarity of the power supply to avoid damaging your circuit.
Secure Connections: Use proper soldering techniques or crimp connectors to ensure reliable and durable connections.
Heat Management: If operating at high currents, ensure adequate ventilation to prevent overheating.
Example: Connecting to an Arduino UNO
The Universal Barrel Jack Male can be used to power an Arduino UNO via its DC power input. Below is an example of how to connect it:
Connect the central pin of the barrel jack to the positive terminal of a 9V DC power supply.
Connect the outer sleeve to the ground terminal of the power supply.
Plug the barrel jack into the Arduino UNO's DC input port.
Arduino Code Example
If you are powering sensors or modules through the Arduino, you can use the following code to test the setup:
// Example code to blink an LED connected to pin 13 on the Arduino UNO
// Ensure the Arduino is powered via the Universal Barrel Jack Male connector
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No Power to the Device
Cause: Incorrect polarity or loose connections.
Solution: Verify the polarity of the power supply and ensure all connections are secure.
Overheating
Cause: Exceeding the voltage or current rating.
Solution: Use a power supply within the specified voltage and current limits.
Intermittent Power
Cause: Poor soldering or damaged wires.
Solution: Inspect the solder joints and wires for damage. Re-solder or replace as needed.
Device Not Functioning Properly
Cause: Insufficient power supply voltage or current.
Solution: Check the power supply specifications and ensure they meet the device's requirements.
FAQs
Q1: Can I use the Universal Barrel Jack Male with an AC power supply?
A1: No, this component is designed for DC power supplies only. Using AC power may damage your device.
Q2: What is the most common size for the barrel jack?
A2: The most common size is 5.5 mm outer diameter and 2.1 mm inner diameter, which is compatible with many devices.
Q3: How do I prevent accidental disconnections?
A3: Use a compatible socket or secure the barrel jack in place with a locking mechanism or enclosure.
Q4: Can I use this connector for high-power applications?
A4: The Universal Barrel Jack Male is rated for up to 24V DC and 5A. For higher power applications, consider using connectors with higher ratings.
By following this documentation, you can effectively use the Universal Barrel Jack Male in your projects and ensure reliable power connections.
