How to Use DC 12V Submersible Water Pump: Examples, Pinouts, and Specs

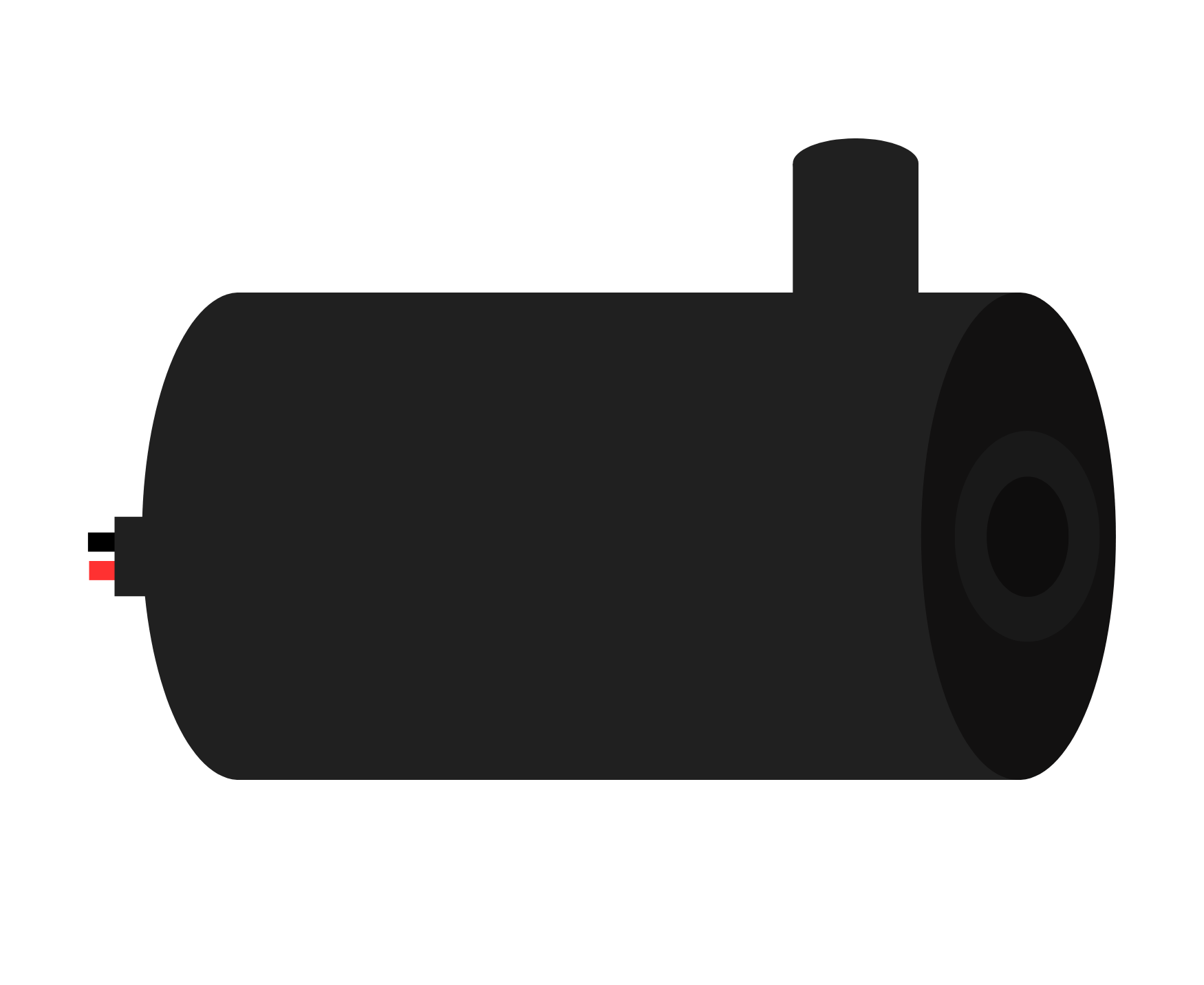

The DC 12V Submersible Water Pump is a compact and efficient device designed to move water from one location to another. Powered by a 12V DC power source, this pump is ideal for a variety of applications, including aquariums, fountains, hydroponic systems, and small-scale irrigation setups. Its submersible design allows it to operate underwater, making it a versatile and reliable choice for water circulation and transfer tasks.

• Aquarium water circulation and filtration
• Garden fountains and decorative water features
• Hydroponic and aquaponic systems
• Small-scale irrigation for plants
• Water transfer in DIY projects

The DC 12V Submersible Water Pump typically has two wires for connection:

1. Power Supply: Ensure you have a stable 12V DC power source capable of supplying at least 1.5A of current.
2. Wiring:
   • Connect the red wire of the pump to the positive terminal of the power source.
   • Connect the black wire to the negative terminal (ground).
3. Submersion: Place the pump fully underwater before powering it on. Ensure the water level is sufficient to cover the pump completely.
4. Tubing: Attach a suitable hose or tubing to the pump's outlet for water transfer. Ensure the tubing is securely connected to prevent leaks.
5. Operation: Turn on the power supply to start the pump. Monitor the flow rate and ensure there are no blockages in the inlet or outlet.

• Do not run the pump dry: Operating the pump without water can damage the motor and reduce its lifespan.
• Water quality: Avoid using the pump with dirty or debris-filled water, as this can clog the inlet and reduce performance.
• Voltage regulation: Use a regulated 12V DC power supply to prevent overvoltage, which can damage the pump.
• Cooling: Ensure the pump remains submerged during operation to prevent overheating.
• Maintenance: Periodically clean the pump's inlet and outlet to remove any accumulated debris.

The DC 12V Submersible Water Pump can be controlled using an Arduino UNO and a relay module. Below is an example circuit and code to turn the pump on and off using a digital pin.

• Connect the pump's red wire to the relay's NO (Normally Open) terminal.
• Connect the pump's black wire to the negative terminal of the power supply.
• Connect the relay's COM (Common) terminal to the positive terminal of the power supply.
• Connect the relay module's control pin to Arduino pin 7.
• Power the Arduino and the pump using separate power supplies, ensuring a common ground.

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Start with the pump off
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the pump on for 5 seconds
  digitalWrite(relayPin, HIGH); // Activate relay to power the pump
  delay(5000); // Wait for 5 seconds

  // Turn the pump off for 5 seconds
  digitalWrite(relayPin, LOW); // Deactivate relay to stop the pump
  delay(5000); // Wait for 5 seconds
}

1. Can this pump be used with liquids other than water?

   • The pump is designed for water. Using it with other liquids may damage the internal components.

2. Is the pump safe for continuous operation?

   • Yes, the pump is designed for continuous operation as long as it remains submerged and within its operating temperature range.

3. Can the pump be used outdoors?

   • Yes, the pump is waterproof (IP68) and can be used outdoors, but ensure the power connections are protected from moisture.

4. What is the maximum distance the pump can lift water?

   • The pump can lift water up to a maximum height of 3 meters, depending on the flow rate and tubing used.

By following this documentation, you can effectively use the DC 12V Submersible Water Pump in your projects and ensure its longevity and performance.
