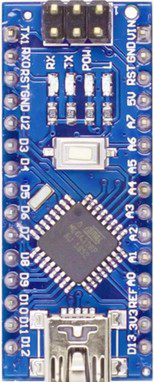

Image of Arduino Nano ATmega328 CH340G
Cirkit Designer LogoDesign with Arduino Nano ATmega328 CH340G in Cirkit Designer

Introduction

The Arduino Nano ATmega328 CH340G is a compact microcontroller board designed for prototyping and small-scale projects. It is based on the ATmega328 microcontroller and features USB connectivity through the CH340G USB-to-serial converter chip. Its small form factor, low power consumption, and compatibility with the Arduino IDE make it an excellent choice for embedded systems, IoT applications, and educational purposes.

Explore Projects Built with Arduino Nano ATmega328 CH340G

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
Image of MacroDisplay: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Smart Display with RGB LED and Buzzer
Image of my project: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller that controls a buzzer, an RGB LED, and an OLED display. The microcontroller drives the buzzer and RGB LED through its digital pins, while the OLED display is interfaced via I2C. The circuit is designed for applications requiring visual and auditory feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Voltage Monitoring System with OLED Display using ATmega328P
Image of Voltage Meter: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
This circuit is a voltage monitoring and display system powered by a 3.7V LiPo battery. It uses an ATmega328P microcontroller to read voltage levels from a DC voltage sensor and displays the readings on a 1.3" OLED screen. The system includes a battery charger and a step-up boost converter to ensure stable operation and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Controlled LED Display with RTC and Humidity Sensing
Image of Alarm Clock: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
This circuit features a Nano 3.0 ATmega328P microcontroller connected to an LED dot display, a real-time clock (RTC DS3231), and a humidity and temperature sensor (SHT21). The microcontroller communicates with the RTC and SHT21 via I2C (using A4 and A5 as SDA and SCL lines, respectively), and it controls the LED display through SPI-like signals (using D10, D11, and D12 for DIN, CS, and CLK). The circuit is designed to display time and environmental data on the LED display, with all components sharing a common power supply and ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano ATmega328 CH340G

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MacroDisplay: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
Arduino Nano Controlled LCD Interface with Pushbutton Inputs
This circuit features a Nano 3.0 ATmega328P microcontroller connected to a 16x2 I2C LCD display for output. Two pushbuttons, each with a 10k Ohm pull-down resistor, are connected to digital pins D2 and D3 of the microcontroller for input. The LCD and pushbuttons are powered by the 5V output from the microcontroller, and all components share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of my project: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
Arduino Nano Smart Display with RGB LED and Buzzer
This circuit features a Nano 3.0 ATmega328P microcontroller that controls a buzzer, an RGB LED, and an OLED display. The microcontroller drives the buzzer and RGB LED through its digital pins, while the OLED display is interfaced via I2C. The circuit is designed for applications requiring visual and auditory feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Voltage Meter: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
Battery-Powered Voltage Monitoring System with OLED Display using ATmega328P
This circuit is a voltage monitoring and display system powered by a 3.7V LiPo battery. It uses an ATmega328P microcontroller to read voltage levels from a DC voltage sensor and displays the readings on a 1.3" OLED screen. The system includes a battery charger and a step-up boost converter to ensure stable operation and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm Clock: A project utilizing Arduino Nano ATmega328 CH340G in a practical application
Arduino Nano-Controlled LED Display with RTC and Humidity Sensing
This circuit features a Nano 3.0 ATmega328P microcontroller connected to an LED dot display, a real-time clock (RTC DS3231), and a humidity and temperature sensor (SHT21). The microcontroller communicates with the RTC and SHT21 via I2C (using A4 and A5 as SDA and SCL lines, respectively), and it controls the LED display through SPI-like signals (using D10, D11, and D12 for DIN, CS, and CLK). The circuit is designed to display time and environmental data on the LED display, with all components sharing a common power supply and ground.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and testing small electronic circuits
  • IoT (Internet of Things) devices and automation systems
  • Robotics and motor control
  • Sensor data acquisition and processing
  • Educational projects and learning microcontroller programming

Technical Specifications

Key Technical Details

  • Microcontroller: ATmega328
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 14 (6 of which support PWM output)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (2 KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • USB Interface: CH340G USB-to-serial converter
  • Dimensions: 45 mm x 18 mm

Pin Configuration and Descriptions

The Arduino Nano has 30 pins, including power, digital I/O, and analog input pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins (multiple GND pins available).
RESET Resets the microcontroller when pulled LOW.

Digital I/O Pins

Pin Number Description
D0 (RX) Serial communication receive pin.
D1 (TX) Serial communication transmit pin.
D2-D13 General-purpose digital I/O pins.
D3, D5, D6, D9, D10, D11 PWM-capable digital pins for analog output.

Analog Input Pins

Pin Number Description
A0-A7 Analog input pins (10-bit resolution).

Special Pins

Pin Name Description
AREF Reference voltage for analog inputs.
IOREF Provides the voltage reference for the board (5V or 3.3V).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the USB port to power the board (5V).
    • Alternatively, connect an external power source (7-12V) to the VIN pin.
  2. Programming the Board:

    • Install the CH340G driver on your computer (if not already installed).
    • Open the Arduino IDE and select Tools > Board > Arduino Nano.
    • Select the correct processor (ATmega328P or ATmega328P (Old Bootloader)).
    • Choose the appropriate COM port under Tools > Port.
    • Write or load your sketch and click the upload button.
  3. Connecting Components:

    • Use the digital I/O pins for controlling LEDs, relays, or other digital devices.
    • Use the analog input pins to read sensor data (e.g., temperature, light).
    • Connect external modules (e.g., Bluetooth, Wi-Fi) via the serial pins (D0, D1) or software serial.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for any I/O pin.
  • Use a voltage regulator or level shifter when interfacing with 3.3V devices.
  • Ensure proper grounding between the Arduino Nano and external components.
  • Use decoupling capacitors for noise-sensitive circuits.

Example Code for Arduino Nano

The following example demonstrates how to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// The LED will turn ON for 1 second and OFF for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Arduino Nano is not recognized by the computer.

    • Solution: Install the CH340G driver. Ensure the correct COM port is selected in the Arduino IDE.
  2. Problem: Sketch upload fails with an error.

    • Solution: Check the selected processor in the Arduino IDE (ATmega328P or ATmega328P (Old Bootloader)).
    • Ensure the board is properly connected to the computer via USB.
  3. Problem: The board resets unexpectedly during operation.

    • Solution: Verify the power supply voltage and current. Ensure the external power source is stable.
  4. Problem: Analog readings are unstable or noisy.

    • Solution: Use proper grounding and decoupling capacitors. Avoid long wires for analog sensors.

FAQs

  • Q: Can the Arduino Nano operate at 3.3V?

    • A: Yes, but you must ensure all connected components are compatible with 3.3V logic levels.
  • Q: How do I reset the Arduino Nano manually?

    • A: Press the onboard reset button or pull the RESET pin LOW momentarily.
  • Q: Can I use the Arduino Nano for battery-powered projects?

    • A: Yes, you can power the board using a battery (e.g., 9V or LiPo) connected to the VIN pin.
  • Q: Is the Arduino Nano compatible with Arduino shields?

    • A: No, the Nano does not have the same pin layout as standard Arduino shields. However, you can use a breadboard or custom wiring for compatibility.
