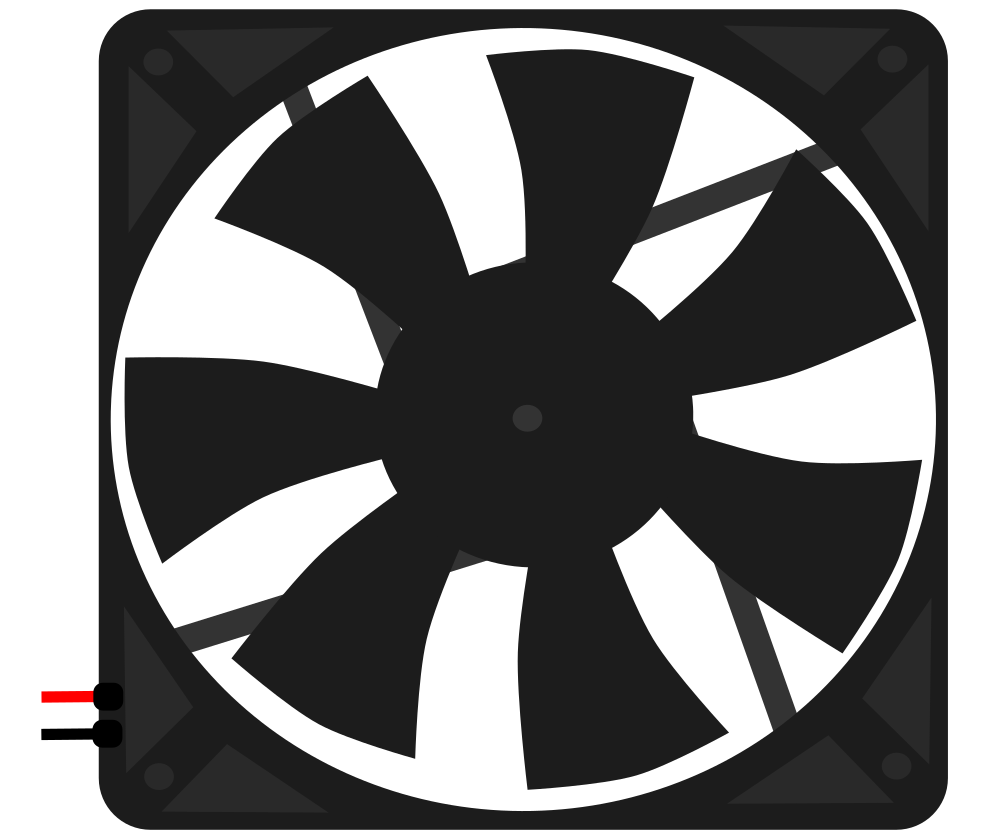

Image of Fan
Cirkit Designer LogoDesign with Fan in Cirkit Designer

Introduction

A fan is an electromechanical device that creates airflow to cool or ventilate an area. It is commonly used in electronic enclosures, such as computer cases, power supplies, and other devices, to dissipate heat and maintain optimal operating temperatures. Fans are essential for preventing overheating, ensuring the longevity of components, and maintaining system performance.
