Introduction

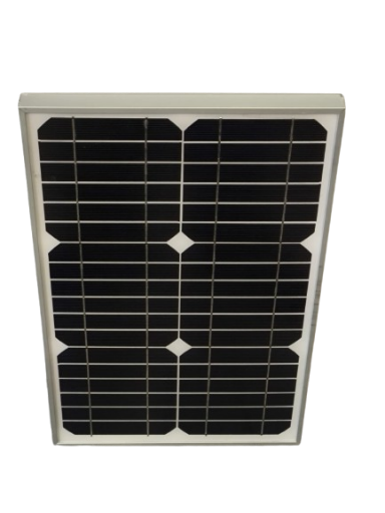

The SM-15W solar panel is a high-efficiency photovoltaic device designed to convert sunlight into electrical energy. Manufactured by SM-15W, this solar panel is ideal for renewable energy applications, offering a sustainable and eco-friendly power source. It is commonly used in off-grid systems, battery charging, small electronics, and outdoor installations.

Explore Projects Built with Solarpanel

Solar-Powered Battery Backup System with Automatic Transfer Switch and AC Outlet

This circuit is designed to harness solar energy, regulate its storage, and convert it for use in standard AC appliances. A solar panel charges a 12V battery through a charge controller, which ensures safe charging and discharging of the battery. The power inverter then converts the stored DC power from the battery into AC power, which is supplied to a 120V outlet through an Automatic Transfer Switch (ATS), ensuring power continuity and safety.

Open Project in Cirkit Designer

Solar and Wind Energy Harvesting System with Charge Controller and Inverter

This circuit is designed for a renewable energy system that integrates solar and wind power generation. It includes a solar and wind charge controller connected to a solar panel and a lantern vertical wind turbine for energy harvesting, a 12V 200Ah battery for energy storage, and a dump load for excess energy dissipation. The system also features a 12V inverter to convert stored DC power to AC, powering an outlet and a wireless charger for end-use applications.

Open Project in Cirkit Designer

Solar-Powered Battery Charging System with XL6009 Voltage Regulator

This circuit features a solar panel ('Do solara') connected to a voltage regulator ('XL6009 Voltage Regulator') to stabilize the output voltage. The regulated voltage is available at a terminal block ('Terminal PCB 2 Pin') for further use. Additionally, a Li-ion battery ('18650 Li-ion Battery') is connected to the solar panel for charging, with the solar panel's output also routed through the voltage regulator.

Open Project in Cirkit Designer

Solar-Powered Battery Charging System with Inverter

This circuit is a solar power system that includes a solar panel, a solar charge controller, a 12V battery, and a power inverter. The solar panel generates electricity, which is regulated by the solar charge controller to charge the 12V battery. The power inverter converts the stored DC power from the battery into AC power for use with AC devices.

Open Project in Cirkit Designer

Common Applications and Use Cases

Off-grid power systems for remote locations
Charging batteries for portable devices
Powering small electronics such as LED lights or fans
Integration into solar-powered IoT devices
Educational projects and prototyping with microcontrollers (e.g., Arduino)

Technical Specifications

The SM-15W solar panel is designed to deliver reliable performance under standard test conditions (STC). Below are the key technical details:

Parameter	Value
Manufacturer	SM-15W
Part ID	Solarpanel
Maximum Power (Pmax)	15 W
Voltage at Pmax (Vmp)	18 V
Current at Pmax (Imp)	0.83 A
Open Circuit Voltage (Voc)	21.6 V
Short Circuit Current (Isc)	0.92 A
Efficiency	~18%
Dimensions	350 mm x 290 mm x 17 mm
Weight	1.2 kg
Operating Temperature	-40°C to +85°C
Connector Type	MC4 or bare wire leads

Pin Configuration and Descriptions

The SM-15W solar panel typically comes with two output wires or MC4 connectors. Below is the description of the connections:

Pin/Connector	Description
Positive (+)	Positive terminal (red wire)
Negative (-)	Negative terminal (black wire)

Usage Instructions

How to Use the Solar Panel in a Circuit

Positioning the Panel: Place the solar panel in direct sunlight for optimal performance. Ensure it is angled correctly based on your geographic location to maximize sunlight exposure.
Connecting to a Load:
- Use the positive (+) and negative (-) terminals to connect the panel to your load or charge controller.
- For battery charging, always use a charge controller to prevent overcharging or damage to the battery.
Voltage Regulation: If the load requires a specific voltage, use a DC-DC converter to step up or step down the panel's output voltage.
Monitoring: Use a multimeter to measure the voltage and current output to ensure the panel is functioning correctly.

Important Considerations and Best Practices

Avoid Shading: Even partial shading can significantly reduce the panel's output.
Overcurrent Protection: Use a fuse or circuit breaker to protect the system from overcurrent conditions.
Weatherproofing: Ensure the panel and connections are weatherproof for outdoor installations.
Storage: If not in use, store the panel in a dry, cool place to prevent damage.

Example: Connecting to an Arduino UNO

The SM-15W solar panel can be used to power an Arduino UNO via a 12V battery and a charge controller. Below is an example of how to read the panel's voltage using an Arduino:

Circuit Setup

Connect the solar panel to a 12V battery through a charge controller.
Use a voltage divider circuit to step down the panel's voltage to a range readable by the Arduino (0-5V).
Connect the output of the voltage divider to an analog input pin on the Arduino.

Arduino Code

// Solar Panel Voltage Monitoring with Arduino
// This code reads the voltage from the solar panel using a voltage divider
// connected to an analog input pin on the Arduino.

const int analogPin = A0;  // Analog pin connected to the voltage divider
const float R1 = 10000.0; // Resistor value in ohms (10k)
const float R2 = 1000.0;  // Resistor value in ohms (1k)
const float Vref = 5.0;   // Reference voltage of the Arduino (5V)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int analogValue = analogRead(analogPin); // Read the analog input
  float voltage = (analogValue / 1023.0) * Vref; // Convert to voltage
  float panelVoltage = voltage * ((R1 + R2) / R2); // Calculate panel voltage

  // Print the panel voltage to the Serial Monitor
  Serial.print("Solar Panel Voltage: ");
  Serial.print(panelVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

Low or No Output Voltage
- Cause: Insufficient sunlight or shading.
- Solution: Ensure the panel is in direct sunlight and free from obstructions.
Overheating
- Cause: Prolonged exposure to high temperatures.
- Solution: Install the panel in a well-ventilated area to allow heat dissipation.
Inconsistent Output
- Cause: Loose or corroded connections.
- Solution: Check and secure all connections. Clean any corrosion on terminals.
Battery Not Charging
- Cause: Faulty charge controller or incorrect wiring.
- Solution: Verify the charge controller is functioning and check the wiring.

FAQs

Can the SM-15W solar panel be used indoors?
- The panel requires direct sunlight for optimal performance. Indoor use is not recommended unless there is strong artificial lighting.
What type of battery is compatible with this panel?
- The panel is compatible with 12V lead-acid, lithium-ion, or LiFePO4 batteries when used with an appropriate charge controller.
Can I connect multiple panels together?
- Yes, multiple panels can be connected in series or parallel to increase voltage or current, respectively. Ensure the total output matches the system requirements.
How do I clean the solar panel?
- Use a soft cloth and water to clean the surface. Avoid abrasive materials that could scratch the panel.

This concludes the documentation for the SM-15W solar panel. For further assistance, refer to the manufacturer's support resources.
