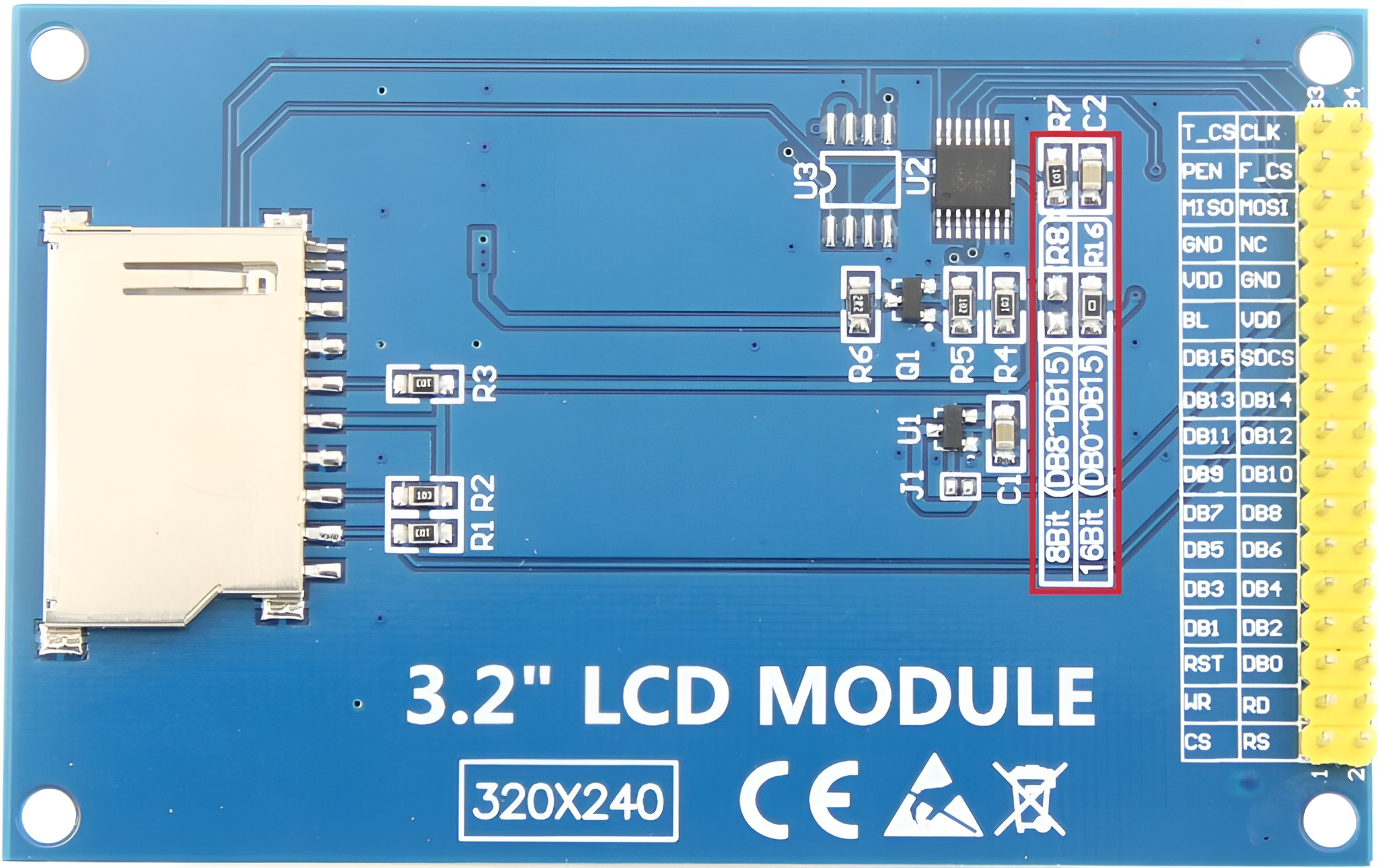

Image of TFT 3.2" 16BIT LCD ILI9341
Cirkit Designer LogoDesign with TFT 3.2" 16BIT LCD ILI9341 in Cirkit Designer

Introduction

The TFT 3.2" 16BIT LCD ILI9341 (Manufacturer Part ID: MRB3205) is a 3.2-inch thin-film transistor (TFT) LCD display module manufactured by Waveshare. It features a 16-bit color depth and is driven by the ILI9341 controller, which is widely used in embedded systems for graphical display applications. This module is ideal for projects requiring a vibrant and responsive graphical interface, such as IoT devices, handheld instruments, and DIY electronics.

Explore Projects Built with TFT 3.2" 16BIT LCD ILI9341

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-S3 and ILI9488 TFT LCD Display for Interactive Graphics
Image of IOT_V1: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
This circuit features an ESP32-S3 microcontroller connected to an ILI9488 TFT LCD display. The ESP32-S3 initializes and controls the display, demonstrating basic graphics and text rendering using the TFT_eSPI library.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled TFT Touchscreen Interface
Image of Tablero Moto: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Controlled ILI9488 TFT LCD Display Interface
Image of IOT_V1: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
This circuit connects an ESP32-S3 microcontroller to an ILI9488 TFT LCD display for graphical output. The ESP32-S3 uses SPI communication to send data to the display, with additional GPIOs for control signals like reset, data/command selection, and touch panel control. The provided code initializes the display and demonstrates basic drawing functions such as text, lines, rectangles, and circles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and ILI9341 TFT Display Interactive Graphics Demo
Image of CE Test ili9341: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
This circuit interfaces an Arduino UNO with an ILI9341 TFT display using two bi-directional logic level converters to manage voltage differences. The Arduino runs a program to test various graphical functions on the TFT display, demonstrating its capabilities through a series of visual benchmarks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TFT 3.2" 16BIT LCD ILI9341

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of IOT_V1: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
ESP32-S3 and ILI9488 TFT LCD Display for Interactive Graphics
This circuit features an ESP32-S3 microcontroller connected to an ILI9488 TFT LCD display. The ESP32-S3 initializes and controls the display, demonstrating basic graphics and text rendering using the TFT_eSPI library.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Tablero Moto: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
Arduino Mega 2560 Controlled TFT Touchscreen Interface
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT_V1: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
ESP32-S3 Controlled ILI9488 TFT LCD Display Interface
This circuit connects an ESP32-S3 microcontroller to an ILI9488 TFT LCD display for graphical output. The ESP32-S3 uses SPI communication to send data to the display, with additional GPIOs for control signals like reset, data/command selection, and touch panel control. The provided code initializes the display and demonstrates basic drawing functions such as text, lines, rectangles, and circles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CE Test ili9341: A project utilizing TFT 3.2" 16BIT LCD ILI9341 in a practical application
Arduino UNO and ILI9341 TFT Display Interactive Graphics Demo
This circuit interfaces an Arduino UNO with an ILI9341 TFT display using two bi-directional logic level converters to manage voltage differences. The Arduino runs a program to test various graphical functions on the TFT display, demonstrating its capabilities through a series of visual benchmarks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Graphical user interfaces for embedded systems
  • IoT dashboards and control panels
  • Portable gaming devices
  • Industrial monitoring systems
  • Educational and hobbyist projects

Technical Specifications

Key Technical Details

Parameter Specification
Display Type TFT LCD
Screen Size 3.2 inches
Resolution 240 x 320 pixels
Color Depth 16-bit (65,536 colors)
Controller IC ILI9341
Interface 16-bit parallel interface
Operating Voltage 3.3V
Backlight Voltage 3.3V
Backlight Current ~60mA
Dimensions 105mm x 65mm x 4.5mm
Operating Temperature -20°C to 70°C

Pin Configuration and Descriptions

The TFT LCD module has a 40-pin interface. Below is the pin configuration:

Pin No. Pin Name Description
1-8 DB0-DB7 Data Bus (Lower 8 bits)
9-16 DB8-DB15 Data Bus (Upper 8 bits)
17 RD Read signal (Active Low)
18 WR Write signal (Active Low)
19 RS Register Select (Command/Data selection)
20 CS Chip Select (Active Low)
21 RESET Reset signal (Active Low)
22 IM0 Interface Mode Selection
23 IM1 Interface Mode Selection
24 IM2 Interface Mode Selection
25 LED_A Backlight Anode (3.3V)
26 LED_K Backlight Cathode (GND)
27-40 GND/VCC Power and Ground pins

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect the module's power pins to a 3.3V regulated power source. Ensure the backlight pins (LED_A and LED_K) are also connected to 3.3V and GND, respectively.
  2. Data Interface: Use the 16-bit parallel interface for communication. Connect the data bus pins (DB0-DB15) to the microcontroller or development board.
  3. Control Signals: Connect the control pins (RD, WR, RS, CS, RESET) to GPIO pins on your microcontroller. These pins are used to send commands and data to the display.
  4. Interface Mode: Configure the IM0, IM1, and IM2 pins to select the desired interface mode. For 16-bit parallel mode, set IM0=1, IM1=1, and IM2=0.
  5. Initialization: Use the ILI9341 initialization sequence to configure the display. This includes setting the resolution, color depth, and other parameters.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all signal lines operate at 3.3V logic levels. Use level shifters if your microcontroller operates at 5V.
  • Backlight Control: To extend the display's lifespan, consider using a PWM signal to control the backlight brightness.
  • Decoupling Capacitors: Place decoupling capacitors (e.g., 0.1µF) near the power pins to reduce noise and ensure stable operation.
  • ESD Protection: Handle the module carefully to avoid electrostatic discharge, which can damage the display.

Example Code for Arduino UNO

Below is an example of how to interface the TFT 3.2" LCD with an Arduino UNO using the Adafruit ILI9341 library:

#include <Adafruit_GFX.h>    // Core graphics library
#include <Adafruit_ILI9341.h> // ILI9341 driver library

// Define pin connections
#define TFT_CS   10  // Chip Select
#define TFT_DC   9   // Data/Command
#define TFT_RST  8   // Reset

// Create an instance of the ILI9341 display
Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  // Initialize the display
  tft.begin();

  // Set rotation (0-3)
  tft.setRotation(1);

  // Fill the screen with a color
  tft.fillScreen(ILI9341_BLUE);

  // Draw a rectangle
  tft.fillRect(50, 50, 100, 100, ILI9341_RED);

  // Display text
  tft.setTextColor(ILI9341_WHITE);
  tft.setTextSize(2);
  tft.setCursor(10, 10);
  tft.print("Hello, World!");
}

void loop() {
  // Add your code here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Display Not Turning On

    • Cause: Incorrect power supply or loose connections.
    • Solution: Verify that the module is receiving 3.3V on the power and backlight pins. Check all connections.
  2. No Image or Distorted Image

    • Cause: Incorrect initialization or data bus wiring.
    • Solution: Ensure the ILI9341 initialization sequence is correctly implemented. Double-check the data bus and control signal connections.
  3. Backlight Not Working

    • Cause: Backlight pins not connected properly.
    • Solution: Verify that LED_A is connected to 3.3V and LED_K to GND.
  4. Touchscreen Not Responding (if applicable)

    • Cause: Touchscreen controller not initialized.
    • Solution: If the module includes a touchscreen, ensure the appropriate driver library is used and the touchscreen pins are connected.

FAQs

Q: Can I use this display with a 5V microcontroller?
A: Yes, but you must use level shifters to convert the 5V logic signals to 3.3V to avoid damaging the display.

Q: What is the maximum refresh rate of the display?
A: The refresh rate depends on the microcontroller's speed and the interface used. Typically, it can achieve up to 60Hz with optimized code.

Q: Is the display sunlight-readable?
A: No, the display is not designed for direct sunlight readability. It is best used indoors or in shaded environments.

Q: Can I use SPI instead of a 16-bit parallel interface?
A: The ILI9341 controller supports SPI, but this specific module is designed for 16-bit parallel communication. Check the datasheet for alternative configurations.
