How to Use MEANWELL Power Supply: Examples, Pinouts, and Specs

The MEANWELL Power Supply is a reliable and efficient power supply unit designed to convert AC to DC power. It provides stable voltage and current, making it ideal for powering a wide range of electronic devices and systems. Known for its durability and high performance, the MEANWELL Power Supply is widely used in industrial automation, LED lighting, telecommunications, and DIY electronics projects.

• Industrial automation systems
• LED lighting installations
• Telecommunications equipment
• DIY electronics and prototyping
• Laboratory testing and instrumentation

Below are the general technical specifications for a typical MEANWELL Power Supply. Note that specific models may vary slightly in their ratings.

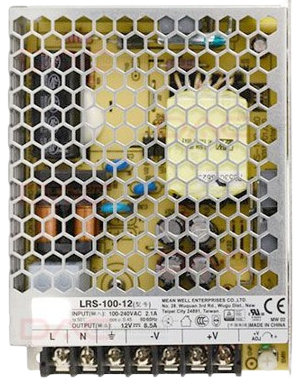

The MEANWELL Power Supply typically features screw terminals for input and output connections. Below is a description of the terminal layout:

1. Safety First: Ensure the power supply is disconnected from the mains before wiring.
2. Input Connection:
   • Connect the AC mains live wire to the L terminal.
   • Connect the AC mains neutral wire to the N terminal.
   • Connect the earth wire to the FG terminal for safety.
3. Output Connection:
   • Connect the positive load wire to the V+ terminal.
   • Connect the negative load wire to the V- terminal.
4. Voltage Adjustment (if applicable):
   • Use a small screwdriver to adjust the V-ADJ potentiometer to fine-tune the output voltage.
5. Power On:
   • After verifying all connections, plug the power supply into the mains and switch it on.

• Load Requirements: Ensure the connected load does not exceed the rated output current and power of the power supply.
• Ventilation: Install the power supply in a well-ventilated area to prevent overheating.
• Mounting: Secure the power supply to a stable surface using screws or DIN rail mounts (if supported).
• Isolation: Avoid direct contact with the terminals when the power supply is energized.

The MEANWELL Power Supply can be used to power an Arduino UNO. Below is an example of how to connect it:

1. Set the output voltage of the power supply to 5V or 9V (depending on the Arduino's input requirements).
2. Connect the V+ terminal to the Arduino's Vin pin.
3. Connect the V- terminal to the Arduino's GND pin.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the MEANWELL Power Supply is providing the correct voltage to the Arduino

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect wiring or no AC input.
   • Solution: Verify the AC input connections and ensure the mains power is on.

2. Overheating:

   • Cause: Insufficient ventilation or excessive load.
   • Solution: Ensure proper airflow around the power supply and reduce the load if necessary.

3. Output Voltage Fluctuations:

   • Cause: Load exceeds the rated capacity or unstable input voltage.
   • Solution: Check the load and ensure it is within the power supply's specifications. Verify the input voltage stability.

4. Power Supply Shuts Down:

   • Cause: Overload, short circuit, or overtemperature protection triggered.
   • Solution: Remove the load, check for short circuits, and allow the power supply to cool before restarting.

• Can I use the MEANWELL Power Supply outdoors?

  • Only if the specific model is rated for outdoor use (e.g., IP65 or higher).

• How do I select the right MEANWELL Power Supply for my project?

  • Determine the required output voltage and current for your load, and choose a model with a slightly higher power rating for safety.

• Can I connect multiple MEANWELL Power Supplies in parallel?

  • Some models support parallel operation. Refer to the datasheet of your specific model for details.

• What happens if I exceed the rated load?

  • The power supply will activate overload protection and shut down to prevent damage. Reduce the load and restart the power supply.
