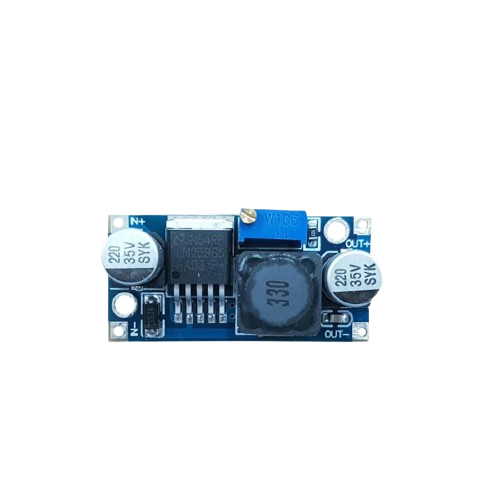

Image of DC-DC Buck Converter LM2596S
Cirkit Designer LogoDesign with DC-DC Buck Converter LM2596S in Cirkit Designer

Introduction

The DC-DC Buck Converter LM2596S by MakerLab is a step-down voltage regulator designed to efficiently convert a higher DC input voltage to a lower DC output voltage. It is capable of delivering up to 3A of output current with an adjustable output voltage range from 1.25V to 37V. This component is widely used in power supply circuits due to its high efficiency, compact size, and ease of use.

Explore Projects Built with DC-DC Buck Converter LM2596S

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing DC-DC Buck Converter LM2596S in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing DC-DC Buck Converter LM2596S in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing DC-DC Buck Converter LM2596S in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing DC-DC Buck Converter LM2596S in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC-DC Buck Converter LM2596S

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solar system router ups: A project utilizing DC-DC Buck Converter LM2596S in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing DC-DC Buck Converter LM2596S in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing DC-DC Buck Converter LM2596S in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing DC-DC Buck Converter LM2596S in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering low-voltage devices from higher-voltage sources (e.g., 12V to 5V conversion)
  • Battery-powered systems to regulate voltage
  • DIY electronics projects and prototyping
  • Arduino and microcontroller-based applications
  • LED drivers and motor controllers

Technical Specifications

The following table outlines the key technical details of the DC-DC Buck Converter LM2596S:

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.25V to 37V (adjustable via potentiometer)
Maximum Output Current 3A (with proper heat dissipation)
Efficiency Up to 92%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions 43mm x 21mm x 14mm

Pin Configuration and Descriptions

The DC-DC Buck Converter LM2596S has three main input/output connections:

Pin Name Description
IN+ Input Positive Connect to the positive terminal of the input voltage source.
IN- Input Negative Connect to the negative terminal (ground) of the input voltage source.
OUT+ Output Positive Provides the regulated positive output voltage.
OUT- Output Negative Provides the ground connection for the output voltage.

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of your DC power source to the IN+ pin.
    • Connect the negative terminal of your DC power source to the IN- pin.
  2. Connect the Output Load:

    • Connect the positive terminal of your load to the OUT+ pin.
    • Connect the negative terminal of your load to the OUT- pin.
  3. Adjust the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage while adjusting.
  4. Ensure Proper Heat Dissipation:

    • If the output current exceeds 2A, attach a heatsink to the LM2596S IC to prevent overheating.

Important Considerations and Best Practices

  • Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
  • Current Limitation: Do not exceed the maximum output current of 3A. Use a heatsink if operating near the maximum current.
  • Polarity: Double-check the polarity of the input and output connections to avoid damage.
  • Filtering Capacitors: For stable operation, ensure the onboard input and output capacitors are in place. If needed, add external capacitors for additional filtering.

Example: Using with an Arduino UNO

The DC-DC Buck Converter LM2596S can be used to power an Arduino UNO from a 12V power source by stepping down the voltage to 5V.

Circuit Connection

  1. Connect the IN+ and IN- pins of the buck converter to the 12V power source.
  2. Adjust the output voltage to 5V using the potentiometer.
  3. Connect the OUT+ pin to the Arduino's 5V pin and the OUT- pin to the Arduino's GND pin.

Sample Code

Here is an example Arduino sketch to blink an LED while powered by the buck converter:

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered by the DC-DC Buck Converter set to 5V.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range (4.5V to 40V).
    • Verify the polarity of the input and output connections.
    • Ensure the potentiometer is not set to the minimum output voltage.
  2. Overheating:

    • Ensure the output current does not exceed 3A.
    • Attach a heatsink to the LM2596S IC if operating at high currents.
  3. Unstable Output Voltage:

    • Add external capacitors (e.g., 100µF electrolytic) to the input and output terminals for better filtering.
    • Ensure the input voltage is stable and not fluctuating.
  4. Output Voltage Not Adjustable:

    • Verify that the potentiometer is functioning correctly.
    • Check for any physical damage to the component.

FAQs

Q: Can I use this module to power a Raspberry Pi?
A: Yes, you can use the buck converter to step down a 12V or higher input voltage to 5V for powering a Raspberry Pi. Ensure the output current is sufficient for the Raspberry Pi model you are using.

Q: What happens if I reverse the input polarity?
A: The module does not have reverse polarity protection. Reversing the input polarity may damage the component. Always double-check your connections.

Q: Can I use this module with a solar panel?
A: Yes, the module can be used with a solar panel as long as the input voltage is within the specified range (4.5V to 40V). Use capacitors to stabilize the input voltage if necessary.

Q: Is the output voltage fixed or adjustable?
A: The output voltage is adjustable from 1.25V to 37V using the onboard potentiometer.

By following this documentation, you can effectively use the DC-DC Buck Converter LM2596S in your projects and troubleshoot common issues.
