How to Use STM32F103: Examples, Pinouts, and Specs

The STM32F103 is a 32-bit microcontroller developed by STMicroelectronics, based on the ARM Cortex-M3 core. It is renowned for its low power consumption, high performance, and a rich set of peripherals, making it a versatile choice for embedded systems and IoT applications. The STM32F103 is part of the STM32 family and is available in various configurations to suit different project requirements.

• Industrial automation and control systems
• IoT devices and smart home applications
• Consumer electronics
• Robotics and motor control
• Medical devices
• Data acquisition systems

The STM32F103 microcontroller is available in multiple variants, such as STM32F103C8, STM32F103RB, etc., with slight differences in memory and pin count. Below are the general technical specifications:

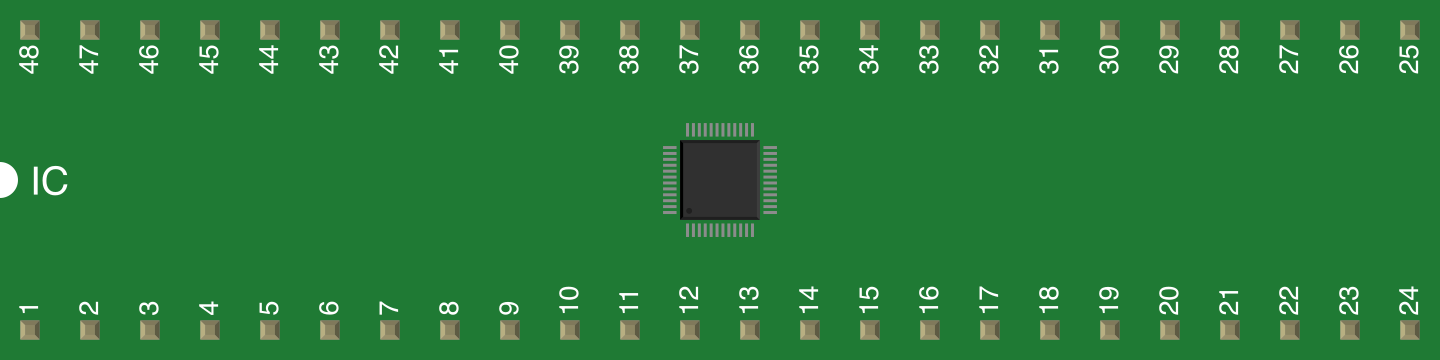

The STM32F103 is available in different packages, such as 48-pin, 64-pin, and 100-pin variants. Below is an example pinout for the STM32F103C8T6 (48-pin package):

Refer to the official datasheet for the complete pinout of your specific STM32F103 variant.

1. Power Supply: Provide a stable 3.3V power supply to the VDD and VDDA pins. Ensure proper decoupling capacitors (e.g., 0.1 µF and 10 µF) are placed close to the power pins.
2. Clock Configuration: Connect an external crystal oscillator (e.g., 8 MHz) to the OSC_IN and OSC_OUT pins for accurate clocking. Alternatively, use the internal RC oscillator.
3. Programming: Use an ST-Link programmer/debugger to upload firmware via the SWD (Serial Wire Debug) interface.
4. Reset Circuit: Connect a pull-up resistor (e.g., 10 kΩ) to the NRST pin for proper reset functionality.
5. Peripherals: Configure GPIOs, communication interfaces (USART, SPI, I2C), and other peripherals as needed in your application.

• Voltage Levels: Ensure all input signals are within the 3.3V logic level range to avoid damage.
• Decoupling: Use decoupling capacitors near power pins to reduce noise and improve stability.
• Boot Modes: Configure the BOOT0 and BOOT1 pins to select the desired boot mode (e.g., boot from Flash, SRAM, or system memory).
• Debugging: Use the SWD interface for debugging and firmware updates.
• Low Power Modes: Utilize the Sleep, Stop, and Standby modes to reduce power consumption in battery-powered applications.

The STM32F103 can be programmed using the Arduino IDE with the STM32duino core. Below is an example code to blink an LED connected to pin PA5:

// Include the STM32 HAL library
#include <Arduino.h>

// Define the LED pin
#define LED_PIN PA5

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set PA5 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(500);                 // Wait for 500 milliseconds
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(500);                 // Wait for 500 milliseconds
}

1. Microcontroller Not Responding

   • Cause: Incorrect power supply or missing decoupling capacitors.
   • Solution: Verify the power supply voltage (3.3V) and ensure proper decoupling capacitors are in place.

2. Unable to Program the Microcontroller

   • Cause: Incorrect BOOT pin configuration or faulty ST-Link connection.
   • Solution: Ensure BOOT0 is set to 0 (boot from Flash) and check the SWD connections.

3. Peripherals Not Working

   • Cause: Incorrect pin configuration or missing initialization in the code.
   • Solution: Double-check the pin assignments and ensure all peripherals are properly initialized in the firmware.

4. High Power Consumption

   • Cause: Microcontroller not entering low-power modes.
   • Solution: Implement Sleep, Stop, or Standby modes in the firmware to reduce power consumption.

Q: Can I use the STM32F103 with 5V logic devices?
A: No, the STM32F103 operates at 3.3V logic levels. Use level shifters to interface with 5V devices.

Q: How do I select the correct STM32F103 variant for my project?
A: Consider factors such as required Flash memory, SRAM, GPIO count, and package size when selecting a variant.

Q: Can I program the STM32F103 without an ST-Link?
A: Yes, you can use the built-in bootloader to program the microcontroller via USART or USB (if supported).

Q: What is the maximum clock speed of the STM32F103?
A: The STM32F103 can operate at a maximum clock speed of 72 MHz.

For more detailed information, refer to the official STM32F103 datasheet and reference manual.
