How to Use DM542: Examples, Pinouts, and Specs

Introduction

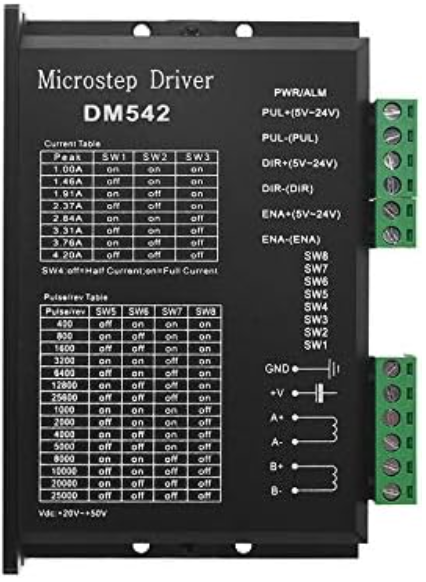

The DM542 is a microstepping driver designed for driving bipolar stepper motors with high precision and smooth motion. Manufactured by Driver, this component is widely used in applications requiring precise motor control, such as CNC machines, 3D printers, robotics, and automated systems. Its compact design, support for various microstepping resolutions, and built-in protection features make it a reliable choice for both industrial and hobbyist projects.

Explore Projects Built with DM542

Arduino UNO Stepper Motor Controller with Keypad Shield and Relay Integration

This circuit controls a NEMA 23 stepper motor using a DM542 stepper driver, managed by an Arduino UNO. It includes a keypad shield for user input, limit switches for position feedback, and a relay module for controlling additional devices, with an emergency stop and indicator lamps for safety and status indication.

Open Project in Cirkit Designer

Arduino-Controlled GSM Relay Switch with Audio Playback

This circuit features an Arduino UNO microcontroller interfaced with a SIM800L GSM module, a DFPlayer MINI MP3 module, a 4-channel relay module, and a 220V fan. The Arduino controls the relay module to switch the fan and other loads, and communicates with the SIM800L for call and SMS handling, which in turn can trigger actions based on DTMF tones received. The DFPlayer MINI is used for audio output, and the circuit is powered by a 5V adapter connected to an AC supply.

Open Project in Cirkit Designer

Arduino-Controlled Stepper Motor with LCD Interface and Rotary Encoder

This circuit is designed to control a bipolar stepper motor using an Arduino Mega 2560 microcontroller and a STEPPERONLINE DM542T driver. The Arduino interfaces with a 20x4 LCD display over I2C for user feedback, a membrane matrix keypad for user input, and a rotary encoder for precise control inputs. The power supply provides the necessary voltage and current to drive the stepper motor through the DM542T driver.

Open Project in Cirkit Designer

Arduino Mega 2560 Based Security System with Fingerprint Authentication and SMS Alerts

This circuit features an Arduino Mega 2560 microcontroller interfaced with a SIM800L GSM module, two fingerprint scanners, an I2C LCD display, an IR sensor, and a piezo buzzer. Power management is handled by a PowerBoost 1000 Basic Pad USB, a TP4056 charging module, and a Li-ion 18650 battery, with an option to use a Mini AC-DC 110V-230V to 5V 700mA module for direct power supply. The primary functionality appears to be a security system with GSM communication capabilities, biometric access control, and visual/audible feedback.

Open Project in Cirkit Designer

Common Applications

CNC machines for precise cutting and engraving
3D printers for accurate layer deposition
Robotics for smooth and controlled motion
Conveyor systems in industrial automation
Camera sliders and other motion control systems

Technical Specifications

The DM542 offers robust performance and flexibility for stepper motor control. Below are its key technical specifications:

Parameter	Value
Supply Voltage Range	18V to 50V DC
Output Current Range	1.0A to 4.2A (adjustable)
Microstepping Resolutions	Full step, 1/2, 1/4, 1/8, 1/16, 1/32
Input Signal Voltage	5V (compatible with TTL logic)
Pulse Frequency Range	0 to 200 kHz
Protection Features	Overcurrent, overvoltage, thermal shutdown
Operating Temperature Range	-10°C to +45°C
Dimensions	118mm x 75.5mm x 34mm

Pin Configuration and Descriptions

The DM542 has several input and output terminals for connecting to the power supply, stepper motor, and control signals. Below is the pin configuration:

Power and Motor Connections

Pin Name	Description
V+	Positive terminal for power supply
V-	Negative terminal for power supply
A+	Positive terminal for motor coil A
A-	Negative terminal for motor coil A
B+	Positive terminal for motor coil B
B-	Negative terminal for motor coil B

Control Signal Connections

Pin Name	Description
PUL+	Positive terminal for pulse signal (step input)
PUL-	Negative terminal for pulse signal
DIR+	Positive terminal for direction signal
DIR-	Negative terminal for direction signal
ENA+	Positive terminal for enable signal (optional)
ENA-	Negative terminal for enable signal (optional)

Usage Instructions

Connecting the DM542

Power Supply: Connect a DC power supply (18V to 50V) to the V+ and V- terminals. Ensure the power supply can provide sufficient current for the stepper motor.
Stepper Motor: Connect the stepper motor coils to the A+, A-, B+, and B- terminals. Verify the wiring matches the motor's datasheet.
Control Signals: Connect the PUL+, PUL-, DIR+, DIR-, and optionally ENA+ and ENA- terminals to a microcontroller or control board (e.g., Arduino UNO).

Setting Microstepping and Current

Use the DIP switches on the DM542 to configure the microstepping resolution and output current. Refer to the DM542 datasheet for the DIP switch settings.

Arduino UNO Example Code

Below is an example of how to control the DM542 using an Arduino UNO:

// Define pins for control signals
const int stepPin = 3;  // Pin connected to PUL+ on DM542
const int dirPin = 4;   // Pin connected to DIR+ on DM542

void setup() {
  pinMode(stepPin, OUTPUT); // Set step pin as output
  pinMode(dirPin, OUTPUT);  // Set direction pin as output

  digitalWrite(dirPin, HIGH); // Set initial direction (HIGH or LOW)
}

void loop() {
  // Generate step pulses
  digitalWrite(stepPin, HIGH); // Set step pin HIGH
  delayMicroseconds(500);      // Wait for 500 microseconds
  digitalWrite(stepPin, LOW);  // Set step pin LOW
  delayMicroseconds(500);      // Wait for 500 microseconds
}

Important Considerations

Ensure the power supply voltage is within the specified range (18V to 50V).
Avoid connecting or disconnecting the motor while the driver is powered to prevent damage.
Use shielded cables for control signals to minimize noise interference.
Properly configure the DIP switches for your motor's current and microstepping requirements.

Troubleshooting and FAQs

Common Issues and Solutions

Motor Not Moving
- Verify the power supply is connected and providing the correct voltage.
- Check the wiring between the DM542 and the stepper motor.
- Ensure the control signals (PUL, DIR) are being sent correctly.
Motor Vibrates but Does Not Rotate
- Check the wiring of the motor coils. Incorrect wiring can cause improper operation.
- Verify the microstepping settings on the DIP switches.
Driver Overheating
- Ensure the driver is not exceeding its current rating.
- Provide adequate ventilation or a heatsink if necessary.
No Response to Control Signals
- Confirm the control signal voltage levels are compatible with the DM542 (5V TTL).
- Check for loose or disconnected wires.

FAQs

Q: Can the DM542 drive unipolar stepper motors?
A: No, the DM542 is designed for bipolar stepper motors only.

Q: What is the maximum step pulse frequency supported?
A: The DM542 supports a maximum pulse frequency of 200 kHz.

Q: Is the enable signal (ENA) mandatory?
A: No, the ENA signal is optional. If not used, the driver will remain enabled by default.

Q: Can I use the DM542 with a 12V power supply?
A: No, the minimum supply voltage for the DM542 is 18V. Using a lower voltage may result in improper operation.

By following this documentation, users can effectively integrate the DM542 into their projects for precise and reliable stepper motor control.
