How to Use Battery Holders: Examples, Pinouts, and Specs

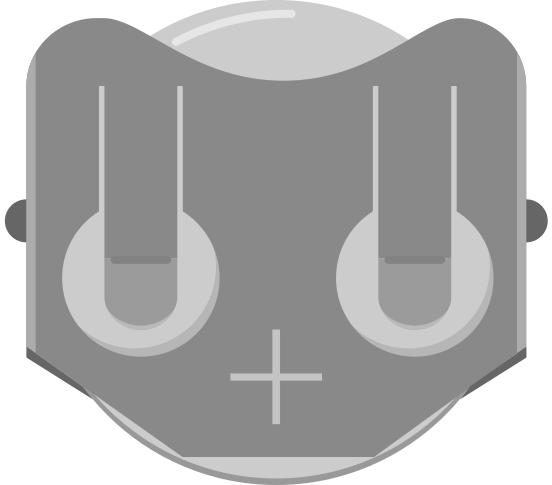

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are available in different configurations, including single-cell and multi-cell holders. Battery holders often include features like spring-loaded terminals or snap connectors to ensure a reliable connection.

• Portable electronic devices (e.g., flashlights, remote controls)
• Prototyping and DIY electronics projects
• Robotics and small motorized systems
• Backup power supplies
• Educational kits and experiments

• Supported Battery Types: AA, AAA, 9V, CR2032 (coin cell), etc.
• Material: Plastic (ABS or polycarbonate) with metal contacts (nickel-plated steel or brass)
• Voltage Range: Depends on the battery type (e.g., 1.5V for AA, 3V for CR2032)
• Current Handling: Typically up to 2A, depending on the holder design
• Mounting Options: Panel mount, PCB mount, or free-standing
• Connector Types: Solder tabs, wire leads, or snap connectors

Battery holders do not have traditional "pins" like ICs but instead feature terminals or connectors. Below is a table describing the common terminal types:

1. Select the Appropriate Holder: Choose a holder that matches the size and type of your battery (e.g., AA, AAA, 9V).
2. Insert the Battery: Place the battery into the holder, ensuring correct polarity. The positive terminal of the battery should align with the "+" marking on the holder.
3. Connect to the Circuit:
   • For holders with wire leads, connect the red wire to the positive terminal of your circuit and the black wire to the negative terminal.
   • For PCB-mounted holders, solder the terminals to the appropriate pads on the PCB.
   • For 9V snap connectors, attach the male and female snaps to the battery and connect the wires to your circuit.
4. Secure the Holder: If necessary, use screws or adhesive to mount the holder securely in your project.

• Polarity: Always double-check the polarity of the battery before inserting it into the holder.
• Current Rating: Ensure the holder can handle the current requirements of your circuit to avoid overheating or damage.
• Mounting: Use appropriate mounting methods to prevent the holder from moving or disconnecting during operation.
• Battery Replacement: Design your project to allow easy access to the holder for battery replacement.
• Short Circuit Protection: Avoid shorting the terminals of the holder, as this can damage the battery and the holder.

Below is an example of using a 4xAA battery holder to power an Arduino UNO:

/* Example: Powering an Arduino UNO with a 4xAA battery holder
   Ensure the total voltage from the batteries does not exceed the Arduino's input limits.
   4xAA batteries (1.5V each) provide 6V, which is within the Arduino's recommended range. */

void setup() {
  // No specific setup required for powering the Arduino via the VIN pin
}

void loop() {
  // Your main code goes here
}

Connection Instructions:

1. Insert 4 AA batteries into the holder, ensuring correct polarity.
2. Connect the positive wire (red) from the holder to the VIN pin on the Arduino.
3. Connect the negative wire (black) from the holder to the GND pin on the Arduino.

1. Loose Connections:

   • Cause: The battery is not seated properly in the holder.
   • Solution: Ensure the battery is fully inserted and the terminals are making firm contact.

2. Polarity Reversal:

   • Cause: The battery is inserted backward.
   • Solution: Remove the battery and reinsert it with the correct orientation.

3. Overheating:

   • Cause: The holder is being used with a circuit that exceeds its current rating.
   • Solution: Check the current requirements of your circuit and use a holder rated for higher current if necessary.

4. Corrosion on Terminals:

   • Cause: Prolonged exposure to moisture or leaking batteries.
   • Solution: Clean the terminals with a small amount of isopropyl alcohol and a cotton swab. Replace the holder if corrosion is severe.

5. Battery Drains Quickly:

   • Cause: A short circuit or high current draw in the circuit.
   • Solution: Inspect the circuit for shorts and ensure the load is within the battery's capacity.

• Q: Can I use rechargeable batteries with a battery holder?

  • A: Yes, as long as the holder matches the size and voltage of the rechargeable batteries.

• Q: How do I mount a battery holder in my project?

  • A: Most holders can be mounted using screws, adhesive, or by soldering directly to a PCB.

• Q: Can I connect multiple battery holders in series or parallel?

  • A: Yes, you can connect holders in series to increase voltage or in parallel to increase capacity. Ensure proper wiring and polarity.

• Q: What should I do if the holder's wires break?

  • A: Strip the wire insulation, solder the wire back to the terminal, and insulate the connection with heat shrink tubing or electrical tape.
