How to Use Camdenboss CTB0158-5: Examples, Pinouts, and Specs

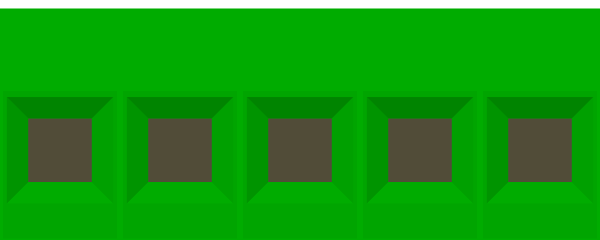

Image of Camdenboss CTB0158-5
Cirkit Designer LogoDesign with Camdenboss CTB0158-5 in Cirkit Designer

Introduction

The CamdenBoss CTB0158/5 is a compact terminal block designed for efficient and secure wiring in electrical circuits. It features multiple terminals, allowing for organized and reliable connections in a variety of applications. This terminal block is ideal for use in control panels, industrial equipment, and other systems requiring robust and easy-to-use wiring solutions.

Explore Projects Built with Camdenboss CTB0158-5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing Camdenboss CTB0158-5 in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Camdenboss CTB0158-5 in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Arduino Mega 2560 Controlled Peristaltic Pump System with Pressure and Flow Sensors
Image of Blood & Dialysate Control Bench: A project utilizing Camdenboss CTB0158-5 in a practical application
This circuit is designed for fluid control and monitoring, featuring multiple peristaltic pumps driven by TB6600 micro-stepping motor drivers, and pressure sensors interfaced with custom PCBs containing ESP32 microcontrollers. It also includes flow meters connected to Arduino Mega 2560 boards for precise flow rate measurement, with power management handled by DC-DC converters and power supplies.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 CAM PIR Sensor Security Camera with Battery Management
Image of intruder alert system: A project utilizing Camdenboss CTB0158-5 in a practical application
This is a motion-activated camera system powered by a 7.4V battery with a charging module. It uses a PIR sensor to detect motion and an ESP32 CAM microcontroller to process the signal and activate a yellow LED through an NPN transistor. A voltage booster and capacitor are included for power management, and a momentary switch allows for manual power control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Camdenboss CTB0158-5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mini ups: A project utilizing Camdenboss CTB0158-5 in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Camdenboss CTB0158-5 in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Blood & Dialysate Control Bench: A project utilizing Camdenboss CTB0158-5 in a practical application
ESP32 and Arduino Mega 2560 Controlled Peristaltic Pump System with Pressure and Flow Sensors
This circuit is designed for fluid control and monitoring, featuring multiple peristaltic pumps driven by TB6600 micro-stepping motor drivers, and pressure sensors interfaced with custom PCBs containing ESP32 microcontrollers. It also includes flow meters connected to Arduino Mega 2560 boards for precise flow rate measurement, with power management handled by DC-DC converters and power supplies.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of intruder alert system: A project utilizing Camdenboss CTB0158-5 in a practical application
ESP32 CAM PIR Sensor Security Camera with Battery Management
This is a motion-activated camera system powered by a 7.4V battery with a charging module. It uses a PIR sensor to detect motion and an ESP32 CAM microcontroller to process the signal and activate a yellow LED through an NPN transistor. A voltage booster and capacitor are included for power management, and a momentary switch allows for manual power control.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Industrial control panels
  • Electrical distribution systems
  • Automation equipment
  • HVAC systems
  • Prototyping and testing setups

Technical Specifications

Key Technical Details

Parameter Specification
Manufacturer CamdenBoss
Part Number CTB0158/5
Number of Terminals 5
Terminal Pitch 5.08 mm
Rated Voltage 300 V
Rated Current 16 A
Wire Size Range 24–12 AWG
Operating Temperature -40°C to +105°C
Material Polyamide (UL94-V0 flame retardant)
Mounting Type PCB (Through-Hole)

Pin Configuration and Descriptions

The CTB0158/5 terminal block has five terminals, each designed for secure wire connections. Below is the pin configuration:

Pin Number Description
1 Terminal for wire connection 1
2 Terminal for wire connection 2
3 Terminal for wire connection 3
4 Terminal for wire connection 4
5 Terminal for wire connection 5

Usage Instructions

How to Use the CTB0158/5 in a Circuit

  1. Mounting the Terminal Block:

    • Solder the CTB0158/5 onto a PCB using the through-hole pins. Ensure proper alignment with the PCB layout.
    • Verify that the solder joints are clean and secure to avoid loose connections.
  2. Connecting Wires:

    • Strip the insulation from the wire ends (approximately 5–7 mm).
    • Insert the stripped wire into the terminal opening.
    • Tighten the screw on the terminal to secure the wire. Avoid overtightening to prevent damage to the wire or terminal.
  3. Testing the Connections:

    • After wiring, test the connections using a multimeter to ensure continuity and proper voltage levels.

Important Considerations and Best Practices

  • Wire Selection: Use wires within the specified range (24–12 AWG) to ensure compatibility and secure connections.
  • Current and Voltage Ratings: Do not exceed the rated current (16 A) or voltage (300 V) to prevent overheating or damage.
  • Environmental Conditions: Ensure the terminal block is used within the operating temperature range (-40°C to +105°C).
  • Safety Precautions: Always disconnect power before making or modifying connections to avoid electrical hazards.

Example: Connecting to an Arduino UNO

The CTB0158/5 can be used to connect external components (e.g., sensors, motors) to an Arduino UNO. Below is an example of wiring a 12V DC motor through the terminal block:

Circuit Setup

  1. Connect the motor's positive and negative terminals to two pins on the CTB0158/5.
  2. Use the remaining pins for power supply and ground connections.
  3. Connect the terminal block to the Arduino UNO using jumper wires.

Sample Arduino Code

// Example code to control a DC motor using Arduino UNO
// Ensure proper wiring through the CTB0158/5 terminal block

const int motorPin = 9; // Pin connected to motor control (via CTB0158/5)

void setup() {
  pinMode(motorPin, OUTPUT); // Set motor pin as output
}

void loop() {
  digitalWrite(motorPin, HIGH); // Turn motor ON
  delay(2000); // Run motor for 2 seconds
  digitalWrite(motorPin, LOW); // Turn motor OFF
  delay(2000); // Pause for 2 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Loose Connections:

    • Issue: Wires are not securely held in the terminal block.
    • Solution: Ensure the screws are tightened properly without overtightening.
  2. Overheating:

    • Issue: Terminal block becomes hot during operation.
    • Solution: Check that the current and voltage do not exceed the rated limits. Use appropriate wire gauge.
  3. Intermittent Connections:

    • Issue: Circuit behaves erratically due to poor contact.
    • Solution: Verify that the wires are stripped to the correct length and inserted fully into the terminals.
  4. Damaged Terminals:

    • Issue: Terminals are cracked or deformed.
    • Solution: Replace the terminal block and ensure proper handling during installation.

FAQs

Q: Can the CTB0158/5 be used for high-frequency signals?
A: While the CTB0158/5 is primarily designed for power connections, it can handle low-frequency signals. For high-frequency applications, consider using specialized connectors.

Q: Is the terminal block reusable?
A: Yes, the CTB0158/5 can be reused, but ensure that the terminals and screws are not damaged during disassembly.

Q: Can I use stranded wires with this terminal block?
A: Yes, stranded wires are compatible. However, it is recommended to use ferrules for a more secure connection.

Q: How do I clean the terminal block?
A: Use a dry cloth or compressed air to remove dust. Avoid using liquids or abrasive materials.

This documentation provides all the necessary details to effectively use the CamdenBoss CTB0158/5 terminal block in your projects. For further assistance, refer to the manufacturer's datasheet or contact technical support.
