How to Use Arduino UNO: Examples, Pinouts, and Specs

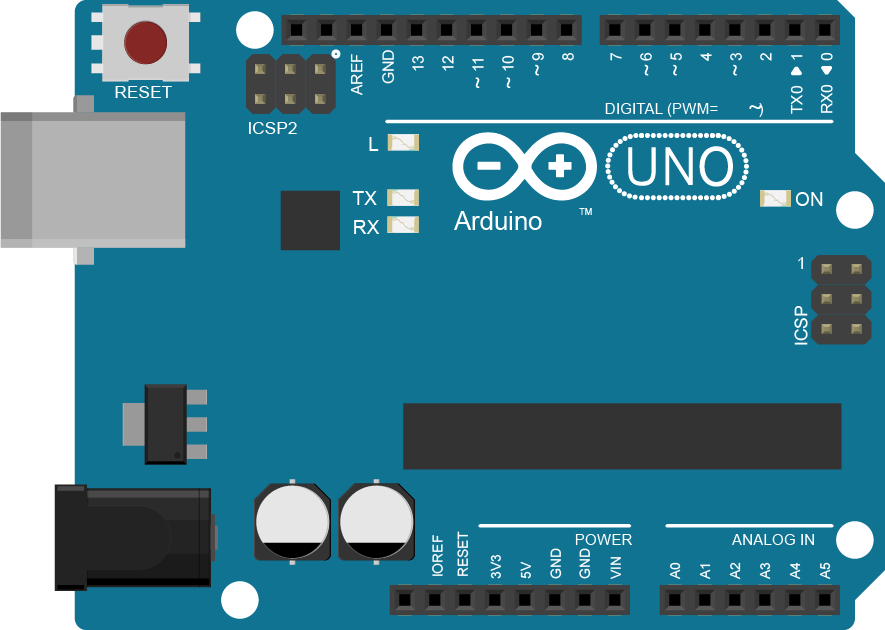

Image of Arduino UNO
Cirkit Designer LogoDesign with Arduino UNO in Cirkit Designer

Introduction

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. Its simplicity, open-source nature, and extensive community support make it an excellent choice for beginners and professionals alike.

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
Image of WORK_1: A project utilizing Arduino UNO in a practical application
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Access Control System with Data Logging
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of WORK_1: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of IoT (Internet of Things) devices
  • Robotics and automation projects
  • Sensor data acquisition and processing
  • Home automation systems
  • Educational purposes for learning programming and electronics

Technical Specifications

Key Technical Details

Specification Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

Pin Name Description
Digital Pins Pins 0-13: Used for digital input/output. Pins 3, 5, 6, 9, 10, and 11 support PWM.
Analog Pins Pins A0-A5: Used for analog input (10-bit resolution).
Power Pins - VIN: Input voltage to the board (7-12V recommended).
- 5V: Regulated 5V output.
- 3.3V: Regulated 3.3V output (50 mA max).
- GND: Ground pins.
Reset Resets the microcontroller.
ICSP Header Used for in-circuit serial programming of the microcontroller.
TX/RX LEDs Indicate data transmission (TX) and reception (RX) over USB.

Usage Instructions

How to Use the Arduino UNO in a Circuit

  1. Powering the Board:

    • Connect the Arduino UNO to your computer via a USB cable for power and programming.
    • Alternatively, use an external power supply (7-12V) connected to the VIN pin or the DC barrel jack.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the board to your computer via USB.
    • Select the correct board ("Arduino UNO") and port in the Arduino IDE.
    • Write your code in the IDE and upload it to the board.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other components.
    • Ensure that the current and voltage requirements of connected components are within the board's limits.

Important Considerations and Best Practices

  • Avoid drawing more than 20 mA from any single I/O pin to prevent damage to the microcontroller.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • When using motors or high-power devices, use a separate power supply and appropriate driver circuits.
  • Always double-check connections to avoid short circuits or incorrect wiring.

Example Code for Arduino UNO

The following example demonstrates how to blink an LED connected to pin 13:

// Blink an LED connected to pin 13
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and properly connected.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB driver for the Arduino UNO.
  2. Code does not upload to the board:

    • Verify that the correct board ("Arduino UNO") is selected in the Arduino IDE.
    • Ensure no other program is using the same COM port.
    • Press the reset button on the board before uploading.
  3. Components connected to the board are not working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Arduino UNO's voltage and current ratings.
    • Test the components individually to confirm they are functional.

FAQs

Q: Can I power the Arduino UNO with a battery?
A: Yes, you can use a 9V battery connected to the DC barrel jack or the VIN pin. Ensure the voltage is within the recommended range (7-12V).

Q: What is the maximum current the Arduino UNO can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, but this includes the current used by the board itself. The 3.3V pin can supply up to 50 mA.

Q: Can I use the Arduino UNO for wireless communication?
A: Yes, you can use external modules like Bluetooth, Wi-Fi (e.g., ESP8266), or RF modules to enable wireless communication.

Q: How do I reset the Arduino UNO?
A: Press the reset button on the board, or connect the RESET pin to GND momentarily.

This concludes the documentation for the Arduino UNO.
