How to Use 18650 in case: Examples, Pinouts, and Specs

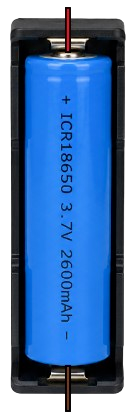

The 18650 in case is a cylindrical lithium-ion rechargeable battery housed in a protective casing. This component is widely used in portable electronics, electric vehicles, and DIY projects due to its high energy density, long cycle life, and safety features provided by the case. The protective case enhances durability and prevents accidental short circuits, making it ideal for applications requiring reliable and portable power sources.

• Power banks and portable chargers
• Flashlights and LED lighting systems
• Electric vehicles and e-bikes
• DIY electronics and robotics projects
• Backup power supplies for microcontrollers and sensors

1. Identify the Terminals: Locate the positive (+) and negative (-) terminals on the battery case.
2. Connect to a Load: Use appropriate wires or connectors to attach the battery to your circuit. Ensure correct polarity to avoid damage.
3. Charging the Battery:
   • Use a dedicated lithium-ion battery charger with a constant current/constant voltage (CC/CV) charging profile.
   • Ensure the charger supports the battery's voltage and capacity specifications.
4. Discharging the Battery:
   • Connect the battery to your load, ensuring the current draw does not exceed the battery's maximum discharge current.
   • Monitor the voltage to avoid over-discharge (do not let the voltage drop below 2.5V).

• Safety First: Always use a battery with a protective case to prevent short circuits and physical damage.
• Avoid Overcharging: Do not charge the battery beyond 4.2V to prevent overheating or damage.
• Temperature Monitoring: Avoid using the battery in extreme temperatures (below -20°C or above 60°C).
• Storage: Store the battery in a cool, dry place at ~50% charge for long-term storage.
• Series/Parallel Connections: When connecting multiple 18650 batteries in series or parallel, ensure they are of the same capacity and charge level to avoid imbalances.

The 18650 can power an Arduino UNO via its VIN pin. Below is an example circuit and code to read the battery voltage using a voltage divider and the Arduino's analog input.

1. Connect the positive terminal of the 18650 to the VIN pin of the Arduino.
2. Use a voltage divider (e.g., 10kΩ and 10kΩ resistors) to scale the battery voltage to a safe range for the Arduino's analog input (0-5V).
3. Connect the output of the voltage divider to an analog pin (e.g., A0).

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Define the resistor values in the voltage divider (in ohms)
const float R1 = 10000.0; // Resistor 1 (10kΩ)
const float R2 = 10000.0; // Resistor 2 (10kΩ)

// Define the reference voltage of the Arduino (5V for most boards)
const float referenceVoltage = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the voltage divider
  int analogValue = analogRead(voltagePin);

  // Calculate the battery voltage
  float batteryVoltage = (analogValue * referenceVoltage / 1023.0) * ((R1 + R2) / R2);

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

1. Battery Not Charging:

   • Cause: Faulty charger or damaged battery.
   • Solution: Verify the charger is functioning correctly and compatible with the battery. Check for physical damage to the battery.

2. Battery Drains Quickly:

   • Cause: High current draw or degraded battery.
   • Solution: Ensure the load does not exceed the battery's maximum discharge current. Replace the battery if it has reached the end of its cycle life.

3. Overheating During Use:

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Reduce the load or improve ventilation around the battery.

4. Voltage Reading is Inaccurate:

   • Cause: Incorrect resistor values in the voltage divider or loose connections.
   • Solution: Double-check the resistor values and ensure all connections are secure.

Q: Can I use the 18650 in case without a dedicated charger?
A: No, it is recommended to use a dedicated lithium-ion charger to ensure safe and efficient charging.

Q: How do I know when the battery is fully charged?
A: The battery is fully charged when its voltage reaches 4.2V. Most chargers have an indicator light to signal full charge.

Q: Can I connect multiple 18650 batteries in series or parallel?
A: Yes, but ensure all batteries are of the same capacity, charge level, and model to avoid imbalances.

Q: Is the protective case waterproof?
A: Most cases are not waterproof. If water resistance is required, use additional waterproof enclosures.
