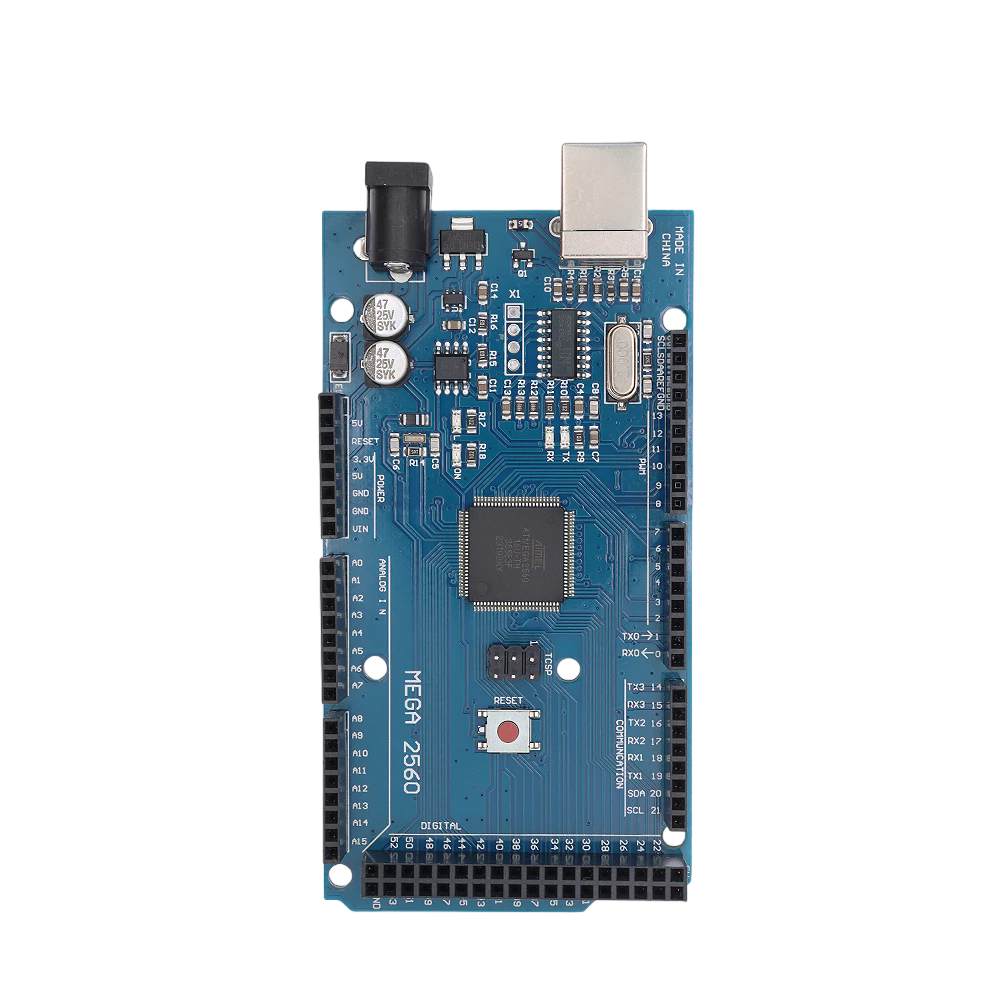

Image of Arduino 2560 của Sơn
Cirkit Designer LogoDesign with Arduino 2560 của Sơn in Cirkit Designer

Introduction

The Arduino 2560 của Sơn is a microcontroller board based on the ATmega2560. It features 54 digital input/output pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. This board is ideal for complex projects requiring multiple I/O pins, such as robotics, IoT systems, and advanced prototyping.

Explore Projects Built with Arduino 2560 của Sơn

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega and UNO-Based Multi-Sensor Environmental Monitoring System with GPS
Image of special project: A project utilizing Arduino 2560 của Sơn in a practical application
This circuit utilizes an Arduino Mega 2560 and an Arduino UNO to interface with various sensors including an ultrasonic sensor, a GPS module, a temperature and humidity sensor, a light sensor, and a barometric pressure sensor. The Arduino Mega 2560 handles the ultrasonic sensor and GPS module, while the Arduino UNO manages the barometric pressure sensor, with both microcontrollers programmed to read sensor data and potentially control other devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled Robotic Vehicle with Bluetooth Interface and MPU-6050 Sensor Integration
Image of BalancingRobot-V2: A project utilizing Arduino 2560 của Sơn in a practical application
This is a robotic control circuit featuring an Arduino Mega 2560 microcontroller, which manages two DC motors via an L298N motor driver for motion control. It includes an MPU-6050 sensor for motion tracking and an HC-06 Bluetooth module for wireless communication. The Domino-8 connector facilitates power and signal connections among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Battery-Powered Robotic System with Ultrasonic and IR Sensors
Image of 4줘 회로구성 : A project utilizing Arduino 2560 của Sơn in a practical application
This circuit is a robotic system controlled by an Arduino Mega 2560, which interfaces with multiple sensors including ultrasonic sensors, an IR sensor, and an accelerometer. It also includes a motor driver to control two motors, and a Bluetooth module for wireless communication. The system is powered by a combination of 9V batteries.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Based Environmental Sensing Station with GPS, UV, and LoRa Connectivity
Image of Cansat : A project utilizing Arduino 2560 của Sơn in a practical application
This circuit features an Arduino Mega 2560 microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes an MPU-6050 for motion tracking, a BMP280 for atmospheric pressure measurement, a GUVA-S12SD UV light sensor, a GPS NEO 6M module for location tracking, and a LoRa Ra-02 SX1278 module for long-range communication. The circuit is powered by a solar charger power bank connected via a USB connection, and it is designed to collect environmental data and communicate it wirelessly, likely for remote monitoring applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino 2560 của Sơn

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of special project: A project utilizing Arduino 2560 của Sơn in a practical application
Arduino Mega and UNO-Based Multi-Sensor Environmental Monitoring System with GPS
This circuit utilizes an Arduino Mega 2560 and an Arduino UNO to interface with various sensors including an ultrasonic sensor, a GPS module, a temperature and humidity sensor, a light sensor, and a barometric pressure sensor. The Arduino Mega 2560 handles the ultrasonic sensor and GPS module, while the Arduino UNO manages the barometric pressure sensor, with both microcontrollers programmed to read sensor data and potentially control other devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BalancingRobot-V2: A project utilizing Arduino 2560 của Sơn in a practical application
Arduino Mega 2560 Controlled Robotic Vehicle with Bluetooth Interface and MPU-6050 Sensor Integration
This is a robotic control circuit featuring an Arduino Mega 2560 microcontroller, which manages two DC motors via an L298N motor driver for motion control. It includes an MPU-6050 sensor for motion tracking and an HC-06 Bluetooth module for wireless communication. The Domino-8 connector facilitates power and signal connections among the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 4줘 회로구성 : A project utilizing Arduino 2560 của Sơn in a practical application
Arduino Mega 2560-Based Battery-Powered Robotic System with Ultrasonic and IR Sensors
This circuit is a robotic system controlled by an Arduino Mega 2560, which interfaces with multiple sensors including ultrasonic sensors, an IR sensor, and an accelerometer. It also includes a motor driver to control two motors, and a Bluetooth module for wireless communication. The system is powered by a combination of 9V batteries.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Cansat : A project utilizing Arduino 2560 của Sơn in a practical application
Arduino Mega 2560 Based Environmental Sensing Station with GPS, UV, and LoRa Connectivity
This circuit features an Arduino Mega 2560 microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes an MPU-6050 for motion tracking, a BMP280 for atmospheric pressure measurement, a GUVA-S12SD UV light sensor, a GPS NEO 6M module for location tracking, and a LoRa Ra-02 SX1278 module for long-range communication. The circuit is powered by a solar charger power bank connected via a USB connection, and it is designed to collect environmental data and communicate it wirelessly, likely for remote monitoring applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics and automation systems
  • IoT (Internet of Things) devices
  • Data acquisition and logging
  • Interactive art installations
  • Educational projects and prototyping

Technical Specifications

Key Technical Details

Specification Value
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (15 PWM outputs)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
Flash Memory 256 KB (8 KB used by bootloader)
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
USB Connection Type-B

Pin Configuration and Descriptions

Digital Pins

Pin Number Functionality
0-1 UART0 (Serial Communication)
2-13 General Digital I/O, PWM (2, 3, 5, 6, 9, 10, 11)
14-21 UART1, UART2, UART3 (Serial Communication)
22-53 General Digital I/O

Analog Pins

Pin Number Functionality
A0-A15 Analog Input (10-bit resolution)

Power Pins

Pin Name Description
VIN Input voltage to the board (7-12V)
5V Regulated 5V output
3.3V Regulated 3.3V output
GND Ground
IOREF Voltage reference for I/O pins

Usage Instructions

How to Use the Arduino 2560 của Sơn in a Circuit

  1. Powering the Board:

    • Connect the board to your computer using a USB Type-B cable for programming and power.
    • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Mega 2560" as the board type in the IDE.
    • Choose the correct COM port under the "Tools" menu.
    • Write or load your sketch and click the upload button.
  3. Connecting Components:

    • Use the digital pins for digital I/O operations (e.g., controlling LEDs, reading buttons).
    • Use the analog pins for reading sensor data (e.g., temperature sensors, potentiometers).
    • For PWM control, use pins 2, 3, 5, 6, 9, 10, or 11.

Example Code for Blinking an LED

// This example code blinks an LED connected to pin 13 on the Arduino 2560 của Sơn.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating of 20 mA per I/O pin to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input readings.
  • When using motors or high-power devices, use external power supplies and protection circuits (e.g., diodes, transistors).
  • Always double-check connections to avoid short circuits or incorrect wiring.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and properly connected.
    • Install the necessary drivers for the Arduino Mega 2560.
    • Check if the correct COM port is selected in the Arduino IDE.
  2. Sketch upload fails:

    • Verify that "Arduino Mega 2560" is selected as the board type in the IDE.
    • Ensure no other software is using the COM port.
    • Press the reset button on the board before uploading.
  3. Components connected to the board are not working:

    • Check the wiring and ensure components are connected to the correct pins.
    • Verify that the power supply is sufficient for the connected components.
    • Use a multimeter to check for continuity and proper voltage levels.
  4. The board overheats:

    • Ensure the input voltage does not exceed the recommended range (7-12V).
    • Avoid drawing excessive current from the I/O pins.

FAQs

Q: Can I power the Arduino 2560 của Sơn with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin. Ensure the voltage is within the recommended range.

Q: How do I reset the board?
A: Press the reset button on the board, or use the reset pin by momentarily connecting it to GND.

Q: Can I use the Arduino 2560 của Sơn with shields designed for other Arduino boards?
A: Yes, the Arduino 2560 is compatible with most Arduino shields, but ensure the shield supports the Mega's pin layout.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when using an external power supply.
