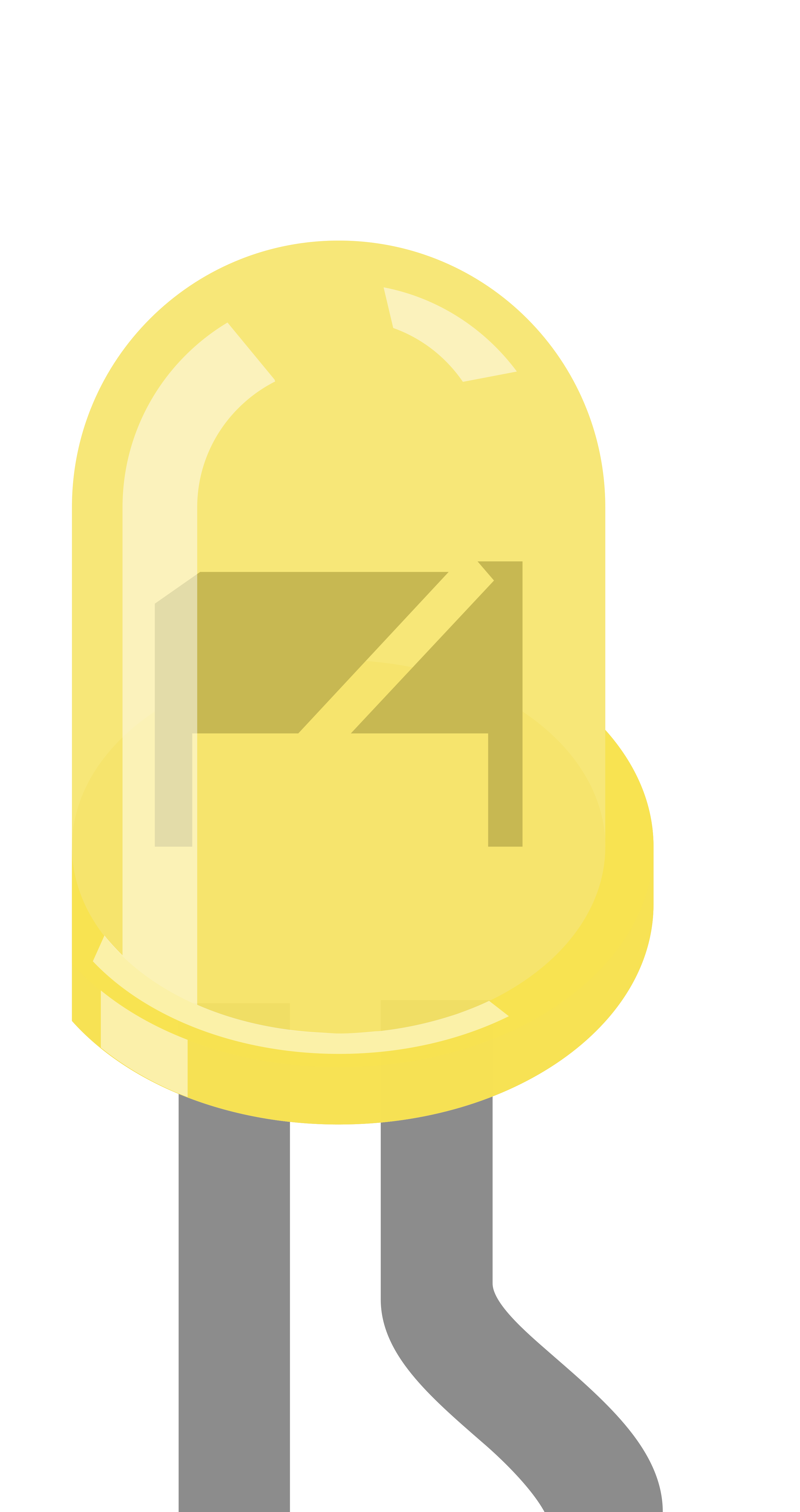

How to Use LED: Two Pin (Yellow): Examples, Pinouts, and Specs

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current flows through it. This specific LED emits yellow light, making it ideal for applications requiring visual indicators or decorative lighting. Its compact size, low power consumption, and long lifespan make it a popular choice in electronics projects.

• Status indicators in electronic devices
• Signal lights in circuits
• Decorative lighting
• Displays and signage
• Educational and hobbyist projects

Below are the key technical details for the Yellow Two-Pin LED:

The Yellow Two-Pin LED has two terminals:

Note: If the pins are trimmed or indistinguishable, the flat edge on the LED casing indicates the cathode (-).

1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

   • (V_{supply}): Supply voltage
   • (V_f): Forward voltage of the LED (2.0V - 2.2V)
   • (I_f): Desired forward current (typically 20mA or 0.02A)

   For example, with a 5V supply: [ R = \frac{5V - 2.1V}{0.02A} = 145\Omega ] Use the nearest standard resistor value, such as 150Ω.

2. Connect the LED:

   • Connect the anode (+) to the positive terminal of the power supply through the resistor.
   • Connect the cathode (-) to the ground.

3. Test the Circuit: Power the circuit and observe the yellow light emitted by the LED.

• Polarity: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
• Current Limiting: Always use a resistor to limit the current. Exceeding the maximum current (30mA) can permanently damage the LED.
• Heat Management: While LEDs generate minimal heat, ensure proper ventilation in high-power applications.

The Yellow LED can be easily interfaced with an Arduino UNO for various projects. Below is an example of blinking the LED:

• Connect the anode (+) of the LED to Arduino pin 13 through a 220Ω resistor.
• Connect the cathode (-) to the Arduino GND pin.

// LED Blinking Example for Yellow Two-Pin LED
// Connect the LED anode (+) to pin 13 through a 220Ω resistor
// Connect the LED cathode (-) to GND

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Tip: Adjust the delay() values to change the blinking speed.

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.
   • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.

2. LED is Dim:

   • Cause: Resistor value too high.
   • Solution: Recalculate the resistor value using Ohm's Law and use a lower resistance.

3. LED Burns Out:

   • Cause: Excessive current due to missing or incorrect resistor.
   • Solution: Always use a current-limiting resistor and ensure it matches the calculated value.

4. Flickering LED:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

• Q: Can I use the LED without a resistor?
  A: No, using the LED without a resistor can cause excessive current flow, damaging the LED.

• Q: What happens if I reverse the polarity?
  A: The LED will not light up. In most cases, it will not be damaged unless exposed to high reverse voltage.

• Q: Can I use this LED with a 3.3V supply?
  A: Yes, but recalculate the resistor value to ensure proper current limiting.

• Q: How do I know the LED's polarity if the pins are trimmed?
  A: Look for the flat edge on the LED casing, which indicates the cathode (-).

By following this documentation, you can effectively use the Yellow Two-Pin LED in your projects while avoiding common pitfalls.
