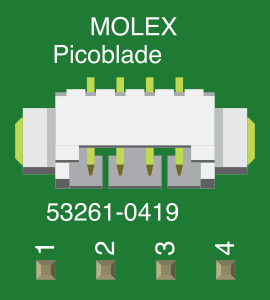

Image of Molex Picoblade Series Header
Cirkit Designer LogoDesign with Molex Picoblade Series Header in Cirkit Designer

Introduction

The Molex Picoblade Series Header (Part ID: 0532610419) is a compact, low-profile connector designed for high-density applications. It features a reliable locking mechanism, ensuring secure wire-to-board connections. This connector is widely used in applications where space is limited, such as consumer electronics, medical devices, and industrial equipment. Its robust design and versatility make it a popular choice for engineers and designers.

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Peltier-Controlled Thermal Management System with SPST Switch
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
Peltier-Controlled Thermal Management System with SPST Switch
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Consumer electronics (e.g., cameras, wearables)
  • Medical devices
  • Industrial control systems
  • Automotive electronics
  • Robotics and IoT devices

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer Molex
Series Picoblade
Part ID 0532610419
Connector Type Header
Number of Positions 4
Pitch 1.25 mm
Mounting Type Surface Mount (SMT)
Current Rating 1 A per contact
Voltage Rating 125 V AC/DC
Operating Temperature -25°C to +85°C
Contact Material Phosphor Bronze
Contact Plating Tin
Housing Material Nylon (UL 94V-0 rated)

Pin Configuration and Descriptions

The Molex Picoblade Series Header (4-position) has the following pin configuration:

Pin Number Description Notes
1 Signal/Power Line 1 Can be used for data or power
2 Signal/Power Line 2 Can be used for data or power
3 Signal/Power Line 3 Can be used for data or power
4 Ground Common ground connection

Usage Instructions

How to Use the Component in a Circuit

  1. PCB Design: Ensure your PCB layout includes a footprint compatible with the Molex Picoblade Series Header. The 1.25 mm pitch requires precise alignment for proper soldering.
  2. Soldering: Use surface-mount soldering techniques to attach the header to the PCB. Ensure all pins are securely soldered to avoid connectivity issues.
  3. Mating Connector: Use a compatible Molex Picoblade receptacle or cable assembly for proper mating. Ensure the locking mechanism clicks into place for a secure connection.
  4. Wiring: Connect the wires to the mating connector according to your circuit design. Double-check the pinout to avoid miswiring.

Important Considerations and Best Practices

  • Current and Voltage Ratings: Do not exceed the specified current (1 A per contact) or voltage (125 V AC/DC) ratings to prevent damage or failure.
  • Temperature Range: Operate the component within the specified temperature range (-25°C to +85°C) to ensure reliability.
  • Locking Mechanism: Always verify that the locking mechanism is engaged to prevent accidental disconnections.
  • Handling: Avoid excessive force when mating or unmating connectors to prevent damage to the pins or housing.

Example: Connecting to an Arduino UNO

The Molex Picoblade Series Header can be used to connect sensors or other peripherals to an Arduino UNO. Below is an example of how to connect a sensor using the header:

Circuit Diagram

  1. Connect the sensor's output to Pin 1 of the header.
  2. Connect the sensor's power supply to Pin 2.
  3. Connect the sensor's ground to Pin 4.

Arduino Code Example

// Example code for reading a sensor connected via the Molex Picoblade Header
// Pin 1: Sensor output connected to Arduino pin A0
// Pin 2: Sensor power (e.g., 5V from Arduino)
// Pin 4: Ground connected to Arduino GND

const int sensorPin = A0; // Analog pin connected to sensor output
int sensorValue = 0;      // Variable to store sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(sensorPin, INPUT); // Set sensor pin as input
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print sensor value to Serial Monitor
  delay(500); // Wait for 500 ms before next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Loose Connection:

    • Issue: The mating connector is not securely attached.
    • Solution: Ensure the locking mechanism clicks into place. Check for proper alignment of the connector.
  2. Intermittent Signal:

    • Issue: Poor soldering or damaged pins.
    • Solution: Inspect solder joints for cold soldering or cracks. Re-solder if necessary. Check for bent or damaged pins.
  3. Overheating:

    • Issue: Exceeding current or voltage ratings.
    • Solution: Verify that the current and voltage do not exceed the specified limits (1 A, 125 V AC/DC).
  4. Connector Damage:

    • Issue: Excessive force during mating/unmating.
    • Solution: Handle the connector gently and avoid applying excessive force.

FAQs

  1. Can I use this header for high-frequency signals?

    • Yes, the Molex Picoblade Series Header can handle high-frequency signals, but ensure proper PCB design to minimize signal integrity issues.
  2. Is this header compatible with other Molex connectors?

    • Yes, it is compatible with other connectors in the Molex Picoblade series, including receptacles and cable assemblies.
  3. What tools are recommended for crimping wires to the mating connector?

    • Molex offers specialized crimping tools designed for Picoblade connectors. Using the correct tool ensures reliable connections.
  4. Can this header be used in outdoor applications?

    • The header itself is not weatherproof. For outdoor use, additional protection (e.g., enclosures) is required to prevent exposure to moisture and dust.

By following this documentation, you can effectively integrate the Molex Picoblade Series Header into your designs and troubleshoot common issues with ease.
