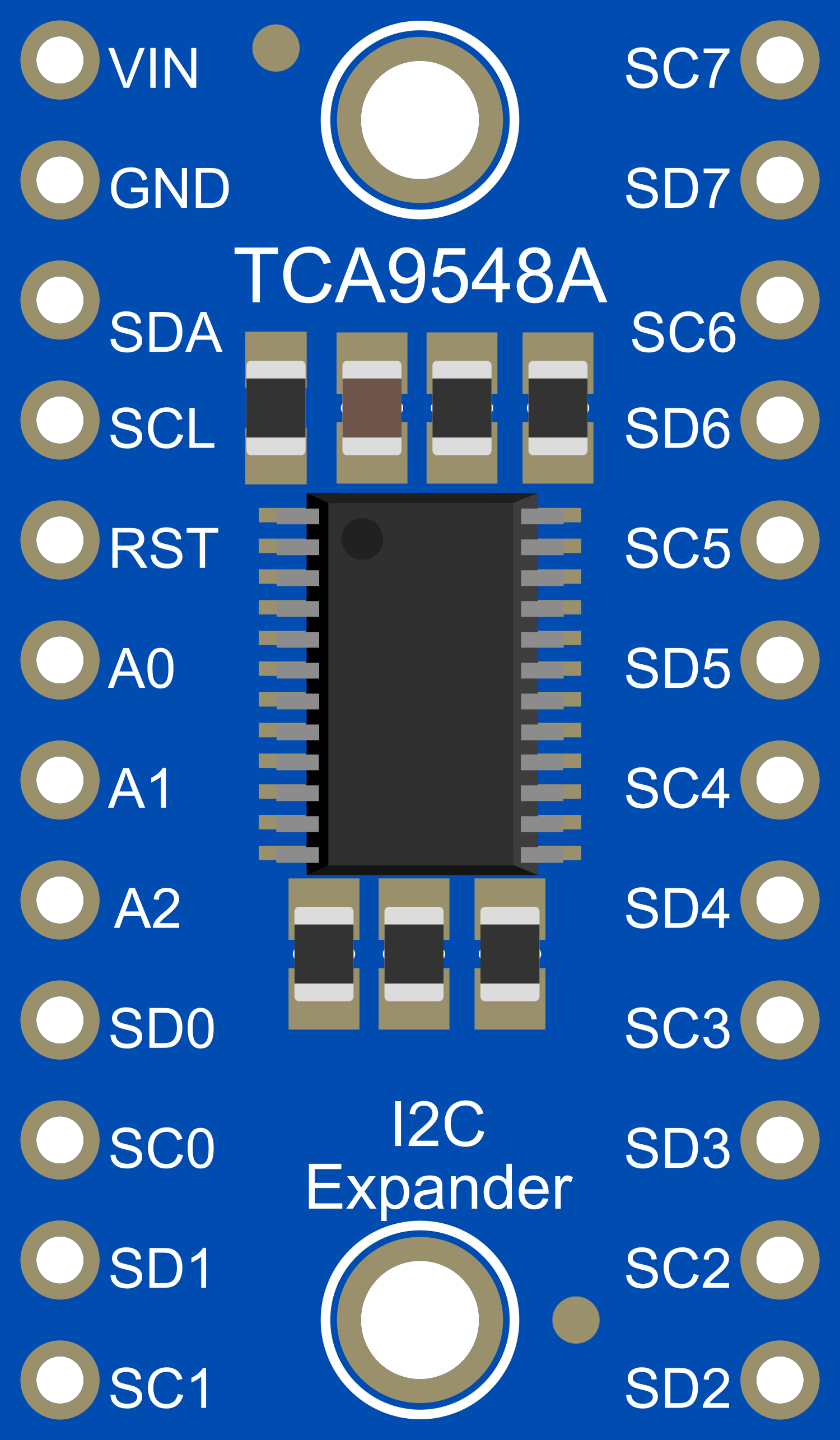

Image of TCA9548A i2c Multiplexer    [Bill Ludwig]
Cirkit Designer LogoDesign with TCA9548A i2c Multiplexer [Bill Ludwig] in Cirkit Designer

Introduction

The TCA9548A I2C Multiplexer is a versatile electronic component designed to expand the capabilities of an I2C bus. It allows multiple I2C devices to be connected to a single I2C bus by providing up to eight independent I2C channels. This is particularly useful in applications where multiple devices with the same I2C address need to coexist on the same bus, as the TCA9548A can isolate and enable communication with one device at a time.

Explore Projects Built with TCA9548A i2c Multiplexer [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based I2C Multiplexer Interface
Image of 8 light sensors: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit utilizes an ESP32 microcontroller to interface with multiple I2C devices through an Adafruit TCA9548A I2C multiplexer. The ESP32 communicates with the TCA9548A via I2C, and the multiplexer allows for up to eight separate I2C buses, each connected to a 5-pin relimate connector. This setup enables the ESP32 to manage multiple I2C devices that may share the same address, by selecting which bus is active at any given time.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based I2C Communication Hub with Multiplexer and Expander
Image of Lights: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit features an Olimex ESP32-EVB microcontroller unit (MCU) for processing and connectivity, interfaced with an MCP23017 I/O expander and an Adafruit TCA9548A I2C multiplexer to expand the number of I/O lines and allow multiple I2C devices to communicate with the MCU over the same bus. Pull-up resistors are connected to the I2C lines for proper bus operation, and both the MCP23017 and TCA9548A have their reset lines pulled high, likely for normal operation without external reset control.
Cirkit Designer LogoOpen Project in Cirkit Designer

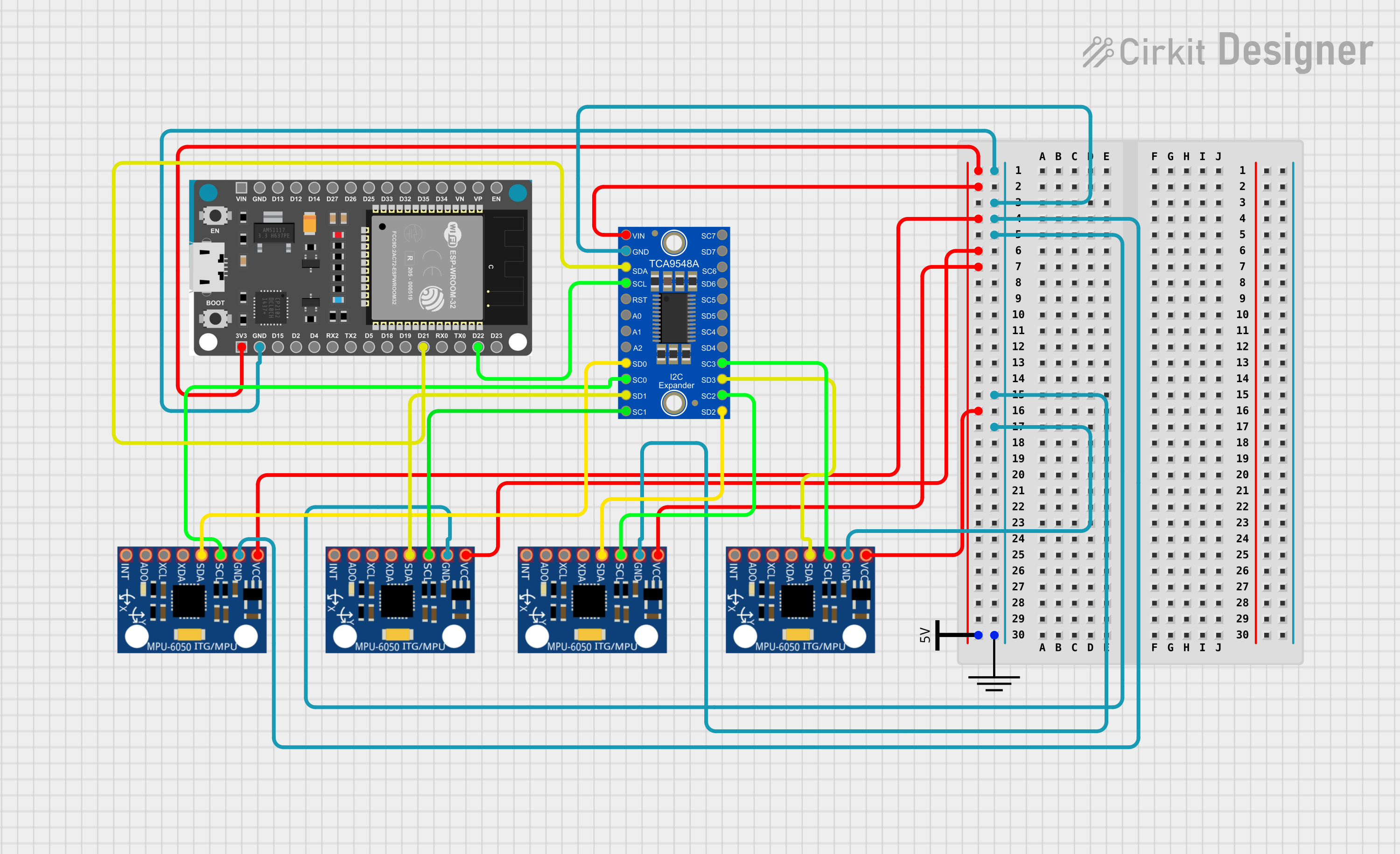

ESP32-Based Multi-Sensor Data Logger with MPU-6050 and I2C Multiplexing
Image of project_final: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to four MPU-6050 sensors via an Adafruit TCA9548A I2C multiplexer. The ESP32 facilitates communication with each MPU-6050 sensor, which are likely used for motion tracking due to their integrated gyroscope and accelerometer. The multiplexer allows the ESP32 to interface with multiple sensors that share the same I2C address by providing separate I2C channels for each sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with I2C Multiplexing
Image of test: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit features an ESP32 microcontroller connected to an MQ-5 gas sensor and a DHT11 temperature and humidity sensor. The ESP32 reads analog data from the MQ-5 sensor and digital data from the DHT11 sensor. An Adafruit TCA9548A I2C multiplexer is used to potentially expand the number of I2C devices that can be connected, with multiple 5-pin relimate connectors interfaced to the multiplexer for additional sensors or peripherals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TCA9548A i2c Multiplexer [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 8 light sensors: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based I2C Multiplexer Interface
This circuit utilizes an ESP32 microcontroller to interface with multiple I2C devices through an Adafruit TCA9548A I2C multiplexer. The ESP32 communicates with the TCA9548A via I2C, and the multiplexer allows for up to eight separate I2C buses, each connected to a 5-pin relimate connector. This setup enables the ESP32 to manage multiple I2C devices that may share the same address, by selecting which bus is active at any given time.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Lights: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based I2C Communication Hub with Multiplexer and Expander
This circuit features an Olimex ESP32-EVB microcontroller unit (MCU) for processing and connectivity, interfaced with an MCP23017 I/O expander and an Adafruit TCA9548A I2C multiplexer to expand the number of I/O lines and allow multiple I2C devices to communicate with the MCU over the same bus. Pull-up resistors are connected to the I2C lines for proper bus operation, and both the MCP23017 and TCA9548A have their reset lines pulled high, likely for normal operation without external reset control.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project_final: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based Multi-Sensor Data Logger with MPU-6050 and I2C Multiplexing
This circuit features an ESP32 Devkit V1 microcontroller connected to four MPU-6050 sensors via an Adafruit TCA9548A I2C multiplexer. The ESP32 facilitates communication with each MPU-6050 sensor, which are likely used for motion tracking due to their integrated gyroscope and accelerometer. The multiplexer allows the ESP32 to interface with multiple sensors that share the same I2C address by providing separate I2C channels for each sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based Environmental Monitoring System with I2C Multiplexing
This circuit features an ESP32 microcontroller connected to an MQ-5 gas sensor and a DHT11 temperature and humidity sensor. The ESP32 reads analog data from the MQ-5 sensor and digital data from the DHT11 sensor. An Adafruit TCA9548A I2C multiplexer is used to potentially expand the number of I2C devices that can be connected, with multiple 5-pin relimate connectors interfaced to the multiplexer for additional sensors or peripherals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Connecting multiple sensors or modules with identical I2C addresses to a single microcontroller.
  • Expanding the I2C bus in complex systems with numerous peripherals.
  • Applications in robotics, IoT devices, and data acquisition systems.
  • Prototyping and testing multiple I2C devices simultaneously.

Technical Specifications

The following table outlines the key technical details of the TCA9548A I2C Multiplexer:

Parameter Value
Manufacturer Unknown
Part ID TCA9548A I2C
Operating Voltage Range 1.65V to 5.5V
I2C Address Range 0x70 to 0x77 (configurable)
Maximum I2C Clock Speed 400 kHz (Fast Mode)
Number of Channels 8
Channel Selection Software-controlled via I2C
Operating Temperature -40°C to +85°C
Package Type TSSOP-24 or similar

Pin Configuration and Descriptions

The TCA9548A has 24 pins, with the following key pin assignments:

Pin Number Pin Name Description
1-3 A0, A1, A2 Address selection pins for configuring the I2C address (0x70 to 0x77).
4 SDA Serial Data Line for I2C communication.
5 SCL Serial Clock Line for I2C communication.
6 RESET Active-low reset pin to reset the multiplexer.
7-14 SD0-SD7 Data lines for the eight I2C channels.
15-22 SC0-SC7 Clock lines for the eight I2C channels.
23 VCC Power supply input (1.65V to 5.5V).
24 GND Ground connection.

Usage Instructions

How to Use the TCA9548A in a Circuit

  1. Power the Device: Connect the VCC pin to a power source (1.65V to 5.5V) and the GND pin to ground.
  2. Set the I2C Address: Use the A0, A1, and A2 pins to configure the I2C address. These pins can be connected to VCC or GND to set the address in the range 0x70 to 0x77.
  3. Connect the I2C Bus: Attach the SDA and SCL lines of the microcontroller to the SDA and SCL pins of the TCA9548A.
  4. Connect I2C Devices: Attach the SDA and SCL lines of each I2C device to the corresponding SDx and SCx pins of the desired channel.
  5. Control the Channels: Use I2C commands to select and enable the desired channel for communication.

Important Considerations and Best Practices

  • Pull-Up Resistors: Ensure that appropriate pull-up resistors are present on the SDA and SCL lines of the primary I2C bus. Each channel may also require pull-up resistors depending on the connected devices.
  • Reset Pin: The RESET pin can be used to reset the multiplexer if communication issues occur. Connect it to a GPIO pin or pull it high if not used.
  • Channel Selection: Only one channel can be active at a time. Use I2C commands to switch between channels as needed.
  • Voltage Compatibility: Ensure that the voltage levels of the I2C devices are compatible with the TCA9548A's operating voltage.

Example Code for Arduino UNO

The following example demonstrates how to use the TCA9548A with an Arduino UNO to communicate with a device on channel 0:

#include <Wire.h>

// Define the I2C address of the TCA9548A (default is 0x70)
#define TCA9548A_ADDRESS 0x70

// Function to select a specific channel on the TCA9548A
void selectChannel(uint8_t channel) {
  if (channel > 7) return; // Ensure the channel is valid (0-7)
  Wire.beginTransmission(TCA9548A_ADDRESS);
  Wire.write(1 << channel); // Send the channel selection command
  Wire.endTransmission();
}

void setup() {
  Wire.begin(); // Initialize the I2C bus
  Serial.begin(9600); // Initialize serial communication for debugging

  // Select channel 0
  selectChannel(0);
  Serial.println("Channel 0 selected.");
}

void loop() {
  // Example: Communicate with a device on channel 0
  Wire.beginTransmission(0x40); // Replace 0x40 with the I2C address of your device
  Wire.write(0x00); // Example command to the device
  Wire.endTransmission();

  delay(1000); // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication with I2C Devices:

    • Ensure the correct channel is selected using the appropriate I2C command.
    • Verify that the pull-up resistors are properly connected on the SDA and SCL lines.
    • Check the wiring and ensure all connections are secure.
  2. Address Conflicts:

    • Verify that the TCA9548A's I2C address is correctly configured using the A0, A1, and A2 pins.
    • Ensure that only one device is active on a channel at a time.
  3. Device Not Responding:

    • Check the power supply voltage and ensure it is within the operating range (1.65V to 5.5V).
    • Use the RESET pin to reset the TCA9548A and reinitialize communication.

FAQs

Q: Can multiple channels be active simultaneously?
A: No, the TCA9548A allows only one channel to be active at a time. You must switch between channels using I2C commands.

Q: Do I need pull-up resistors on each channel?
A: It depends on the connected devices. If the devices on a channel do not have built-in pull-up resistors, you will need to add them.

Q: What happens if I select an invalid channel?
A: The TCA9548A will ignore the command, and no channel will be active. Ensure the channel number is between 0 and 7.

Q: Can the TCA9548A work with 3.3V and 5V devices simultaneously?
A: No, the TCA9548A does not perform voltage level translation. Ensure all devices operate at the same voltage level as the TCA9548A.
