How to Use Max98357 : Examples, Pinouts, and Specs

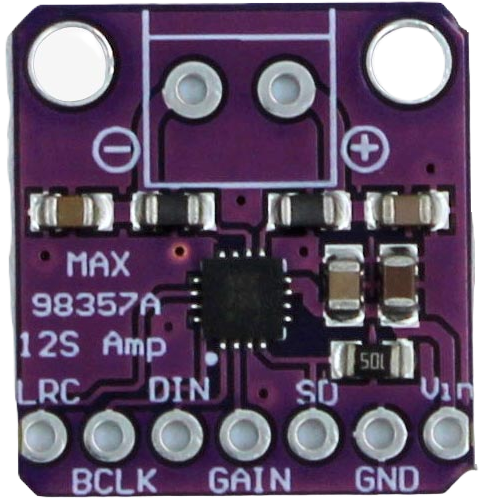

Image of Max98357
Cirkit Designer LogoDesign with Max98357 in Cirkit Designer

Introduction

The Max98357 is a digital audio amplifier designed to deliver high-quality sound amplification for a variety of audio applications. It integrates a built-in digital-to-analog converter (DAC) and supports I2S (Inter-IC Sound) audio input, simplifying the design of audio systems. With its compact size and efficient performance, the Max98357 is ideal for use in portable devices, smart speakers, IoT audio systems, and other applications requiring clear and powerful audio output.

Explore Projects Built with Max98357

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
Image of Pulsefex: A project utilizing Max98357  in a practical application
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
Image of circuit diagram: A project utilizing Max98357  in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Portable Smart Speaker with Audio Input Processing
Image of talkAI: A project utilizing Max98357  in a practical application
This circuit features two ESP32 microcontrollers configured for serial communication, with one ESP32's TX0 connected to the other's RX2, and vice versa. An INMP441 microphone is interfaced with one ESP32 for audio input, using I2S protocol with connections for serial clock (SCK), word select (WS), and serial data (SD). A Max98357 audio amplifier is connected to the other ESP32 to drive a loudspeaker, receiving I2S data (DIN), bit clock (BLCK), and left-right clock (LRC), and is powered by a lipo battery charger module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Wireless Joystick-Controlled Display with RTC
Image of RH-WallE Sender Schaltplan (Cirkit Designer).png: A project utilizing Max98357  in a practical application
This circuit is a multi-functional embedded system using an Arduino Mega 2560 as the central controller. It interfaces with various peripherals including a DS3231 RTC for timekeeping, an NRF24L01 for wireless communication, a KY-023 joystick for user input, a 4x4 keypad for additional input, and a TM1637 display for output. The system is powered by a combination of 3.3V and 5V sources.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Max98357

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Pulsefex: A project utilizing Max98357  in a practical application
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit diagram: A project utilizing Max98357  in a practical application
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of talkAI: A project utilizing Max98357  in a practical application
ESP32-Based Portable Smart Speaker with Audio Input Processing
This circuit features two ESP32 microcontrollers configured for serial communication, with one ESP32's TX0 connected to the other's RX2, and vice versa. An INMP441 microphone is interfaced with one ESP32 for audio input, using I2S protocol with connections for serial clock (SCK), word select (WS), and serial data (SD). A Max98357 audio amplifier is connected to the other ESP32 to drive a loudspeaker, receiving I2S data (DIN), bit clock (BLCK), and left-right clock (LRC), and is powered by a lipo battery charger module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RH-WallE Sender Schaltplan (Cirkit Designer).png: A project utilizing Max98357  in a practical application
Arduino Mega 2560-Based Wireless Joystick-Controlled Display with RTC
This circuit is a multi-functional embedded system using an Arduino Mega 2560 as the central controller. It interfaces with various peripherals including a DS3231 RTC for timekeeping, an NRF24L01 for wireless communication, a KY-023 joystick for user input, a 4x4 keypad for additional input, and a TM1637 display for output. The system is powered by a combination of 3.3V and 5V sources.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Portable audio devices
  • Smart speakers and voice assistants
  • IoT audio systems
  • Home automation systems
  • Embedded systems with audio playback

Technical Specifications

The Max98357 is a highly efficient Class D amplifier with the following key specifications:

Parameter Value
Supply Voltage (VDD) 2.5V to 5.5V
Output Power Up to 3.2W at 4Ω load, 10% THD+N, 5V supply
Input Format I2S (Inter-IC Sound)
Sampling Rates Supported 8kHz to 96kHz
Efficiency Up to 92%
Shutdown Current 0.2µA (typical)
Operating Temperature Range -40°C to +85°C
Package Type 9-pin WLP or 10-pin TDFN

Pin Configuration and Descriptions

The Max98357 has the following pinout:

Pin Name Pin Number Description
VDD 1 Power supply input (2.5V to 5.5V).
GND 2, 3 Ground connection.
DIN 4 I2S digital audio data input.
BCLK 5 I2S bit clock input.
LRCLK 6 I2S left/right clock input.
SD_MODE 7 Selects I2S data format and enables shutdown mode.
OUT+ 8 Positive speaker output.
OUT- 9 Negative speaker output.

Usage Instructions

How to Use the Max98357 in a Circuit

  1. Power Supply: Connect the VDD pin to a stable power supply (2.5V to 5.5V) and the GND pins to ground.
  2. I2S Audio Input: Connect the DIN, BCLK, and LRCLK pins to the corresponding I2S signals from your microcontroller or audio source.
  3. Speaker Connection: Connect the OUT+ and OUT- pins to the terminals of a speaker (4Ω or 8Ω recommended).
  4. SD_MODE Configuration: Use the SD_MODE pin to configure the I2S format or enable shutdown mode. Refer to the datasheet for specific configurations.
  5. Decoupling Capacitors: Place decoupling capacitors (e.g., 1µF and 0.1µF) close to the VDD pin to ensure stable operation.

Important Considerations and Best Practices

  • Use a low-impedance speaker (4Ω or 8Ω) for optimal performance.
  • Ensure proper grounding to minimize noise and interference.
  • Keep the I2S signal traces as short as possible to reduce signal degradation.
  • Use a heat sink or proper ventilation if operating at high power levels for extended periods.

Example: Connecting the Max98357 to an Arduino UNO

The Max98357 can be easily interfaced with an Arduino UNO using the I2S library. Below is an example code snippet to play audio using the Max98357:

#include <I2S.h> // Include the I2S library for Arduino

void setup() {
  // Initialize I2S with a 44.1kHz sample rate and 16-bit resolution
  if (!I2S.begin(I2S_PHILIPS_MODE, 44100, 16)) {
    // If initialization fails, print an error message
    Serial.println("Failed to initialize I2S!");
    while (1); // Halt the program
  }
}

void loop() {
  // Example: Send a simple sine wave to the Max98357
  for (int i = 0; i < 360; i++) {
    // Generate a sine wave sample
    int sample = 32767 * sin(i * PI / 180);
    // Write the sample to the I2S output
    I2S.write(sample);
  }
}

Note: Ensure the Arduino UNO supports I2S communication. If not, consider using a compatible board like the ESP32 or Raspberry Pi Pico.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Sound Output:

    • Verify that the I2S signals (DIN, BCLK, LRCLK) are correctly connected and configured.
    • Check the power supply voltage (VDD) and ensure it is within the specified range.
    • Ensure the speaker is properly connected to the OUT+ and OUT- pins.
  2. Distorted Audio:

    • Confirm that the I2S sampling rate and bit depth match the audio source.
    • Check for noise or interference in the power supply or I2S signals.
    • Use proper decoupling capacitors near the VDD pin.
  3. Overheating:

    • Ensure the speaker impedance is within the recommended range (4Ω or 8Ω).
    • Avoid operating the amplifier at maximum power for extended periods without proper cooling.

FAQs

Q1: Can the Max98357 drive headphones?
A1: No, the Max98357 is designed to drive low-impedance speakers (4Ω or 8Ω). It is not suitable for driving headphones directly.

Q2: What is the maximum sampling rate supported by the Max98357?
A2: The Max98357 supports I2S sampling rates from 8kHz to 96kHz.

Q3: Can I use the Max98357 with a 3.3V microcontroller?
A3: Yes, the Max98357 is compatible with 3.3V logic levels and can operate with a 3.3V power supply.

Q4: How do I enable shutdown mode?
A4: Pull the SD_MODE pin low to enable shutdown mode and reduce power consumption.

By following this documentation, you can effectively integrate the Max98357 into your audio projects and troubleshoot common issues with ease.
