How to Use IRFZ44N: Examples, Pinouts, and Specs

The IRFZ44N is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-speed switching applications. It is widely used in circuits requiring efficient power management, motor control, and switching operations. With its low on-resistance, high current capacity, and ability to handle voltages up to 55V, the IRFZ44N is a versatile and reliable component for various electronic projects.

• DC motor control in robotics and automation
• Switching power supplies and converters
• LED dimming and lighting control
• Battery management systems
• High-speed switching in industrial equipment

Below are the key technical details of the IRFZ44N MOSFET:

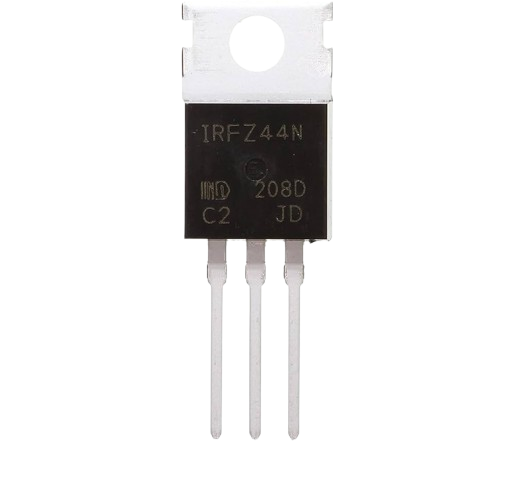

The IRFZ44N comes in a TO-220 package with three pins. The pin configuration is as follows:

1. Gate Control: Apply a voltage to the Gate (G) to turn the MOSFET on or off. A voltage of at least 10V is recommended for full switching performance.
2. Drain-Source Connection: Connect the load between the Drain (D) and the positive supply voltage. The Source (S) is typically connected to ground.
3. Gate Resistor: Use a resistor (e.g., 10Ω to 100Ω) between the Gate and the control signal to limit inrush current and prevent damage to the MOSFET.
4. Flyback Diode: When driving inductive loads (e.g., motors or relays), add a flyback diode across the load to protect the MOSFET from voltage spikes.

The IRFZ44N can be used with an Arduino UNO to control a DC motor. Below is an example circuit and code:

• Gate (G): Connect to an Arduino digital pin (e.g., D9) through a 100Ω resistor.
• Drain (D): Connect to one terminal of the motor.
• Source (S): Connect to ground.
• Motor: Connect the other terminal to the positive supply voltage.
• Flyback Diode: Place a diode (e.g., 1N4007) across the motor terminals, with the cathode connected to the positive supply.

// Example code to control a DC motor using IRFZ44N and Arduino UNO

const int motorPin = 9; // Pin connected to the Gate of IRFZ44N

void setup() {
  pinMode(motorPin, OUTPUT); // Set motorPin as an output
}

void loop() {
  analogWrite(motorPin, 128); // Set motor speed to 50% (PWM value: 128)
  delay(5000);               // Run motor for 5 seconds

  analogWrite(motorPin, 0);  // Turn off the motor
  delay(5000);               // Wait for 5 seconds
}

• Ensure the Gate voltage (V_GS) does not exceed ±20V to avoid damaging the MOSFET.
• Use a heatsink if the MOSFET is expected to handle high currents to prevent overheating.
• Verify the power dissipation and ensure it does not exceed the maximum rating of 94W.

1. MOSFET Not Switching Properly

   • Cause: Insufficient Gate voltage.
   • Solution: Ensure the Gate voltage is at least 10V for full switching.

2. Overheating

   • Cause: High current or inadequate cooling.
   • Solution: Use a heatsink and ensure proper ventilation.

3. Motor Not Running

   • Cause: Incorrect wiring or damaged MOSFET.
   • Solution: Double-check connections and replace the MOSFET if necessary.

4. Voltage Spikes Damaging the MOSFET

   • Cause: Inductive load without a flyback diode.
   • Solution: Add a flyback diode across the load.

Q: Can the IRFZ44N be used with 3.3V logic?
A: The IRFZ44N requires a Gate voltage of at least 10V for optimal performance. For 3.3V logic, consider using a logic-level MOSFET like the IRLZ44N.

Q: What is the maximum current the IRFZ44N can handle?
A: The IRFZ44N can handle up to 49A continuously, provided proper cooling is implemented.

Q: Can I use the IRFZ44N for AC loads?
A: The IRFZ44N is designed for DC applications. For AC loads, consider using a TRIAC or other suitable components.

Q: Do I need a resistor on the Gate?
A: Yes, a resistor (e.g., 10Ω to 100Ω) is recommended to limit inrush current and protect the MOSFET.

By following this documentation, you can effectively use the IRFZ44N in your electronic projects.
