How to Use 5V regulator: Examples, Pinouts, and Specs

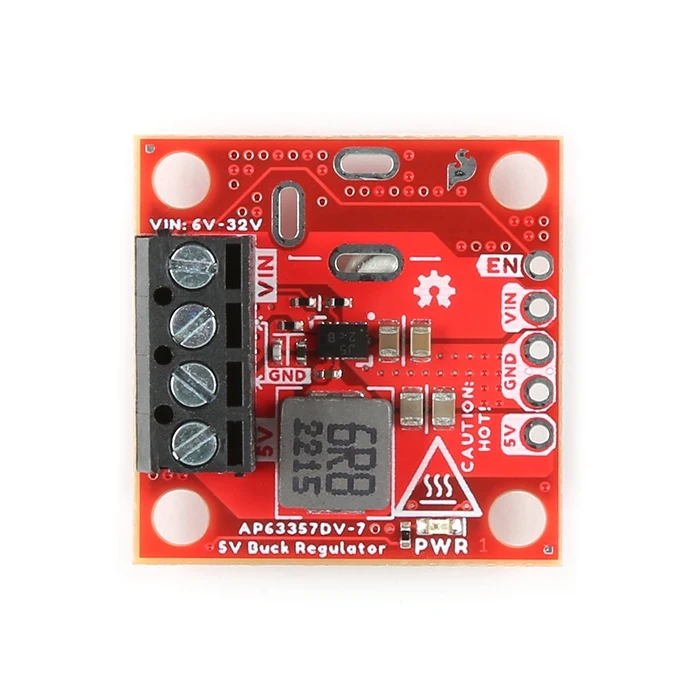

The SparkFun AP63357 is a 5V regulator designed to provide a stable and reliable 5V output voltage, regardless of fluctuations in input voltage or load conditions. This component is essential in power supply circuits, ensuring that sensitive electronic devices, such as microcontrollers, sensors, and communication modules, receive a consistent voltage for optimal performance.

• Powering microcontrollers (e.g., Arduino, Raspberry Pi)
• Voltage regulation for sensors and communication modules
• Battery-powered devices requiring a stable 5V output
• General-purpose power supply circuits

The AP63357 is a high-efficiency, synchronous buck converter with integrated MOSFETs. Below are its key technical details:

The AP63357 comes in a TSOT23-6 package with the following pinout:

1. Input Voltage: Connect a DC voltage source (3.8V to 32V) to the VIN pin. Ensure the input voltage is within the specified range.
2. Output Voltage: The AP63357 provides a fixed 5V output. Connect the load to the output node.
3. Inductor and Capacitors: Use an appropriate inductor (e.g., 4.7µH to 10µH) and input/output capacitors (e.g., 22µF ceramic capacitors) as per the datasheet recommendations for stable operation.
4. Enable Pin: Pull the EN pin high to enable the regulator. If unused, connect it to VIN.
5. Feedback Pin: The FB pin is internally configured for a fixed 5V output. No external resistor divider is required.
6. Bootstrap Capacitor: Connect a 0.1µF capacitor between the BST and SW pins.

• Thermal Management: Ensure adequate heat dissipation, especially when operating at high currents. Use a PCB with good thermal conductivity.
• Input Voltage Ripple: Minimize input voltage ripple by using low-ESR capacitors at the input.
• Inductor Selection: Choose an inductor with a current rating higher than the maximum load current to avoid saturation.
• PCB Layout: Keep the traces for the VIN, SW, and GND pins as short and wide as possible to reduce noise and improve efficiency.

The AP63357 can be used to power an Arduino UNO by providing a stable 5V supply. Below is an example circuit and Arduino code to demonstrate its usage.

1. Connect the VIN pin of the AP63357 to a 12V DC power source.
2. Connect the GND pin to the ground of the power source and Arduino.
3. Connect the 5V output to the 5V pin of the Arduino UNO.

// Example code to blink an LED using an Arduino UNO powered by the AP63357
// Ensure the AP63357 is providing a stable 5V to the Arduino's 5V pin.

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Can the AP63357 provide an adjustable output voltage?
   No, the AP63357 is configured for a fixed 5V output. For adjustable output, consider other regulators with external feedback resistors.

2. What is the maximum input voltage?
   The maximum input voltage is 32V. Exceeding this value may damage the regulator.

3. Can I use the AP63357 with a battery?
   Yes, as long as the battery voltage is within the input range (3.8V to 32V).

4. Is the AP63357 suitable for powering high-current devices?
   Yes, it can supply up to 3A of current, making it suitable for many high-current applications.

By following the guidelines and recommendations in this documentation, you can effectively integrate the SparkFun AP63357 5V regulator into your electronic projects.
