How to Use BMS: Examples, Pinouts, and Specs

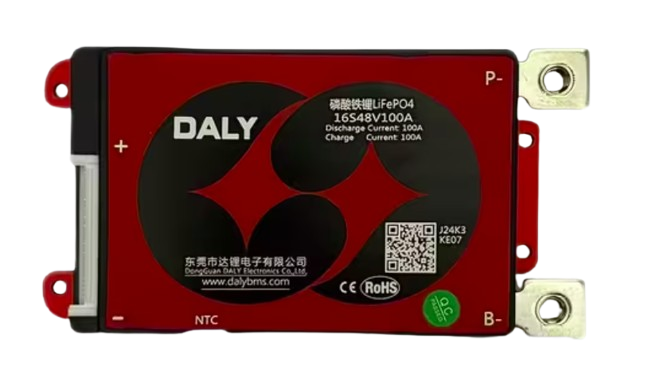

Image of BMS
Cirkit Designer LogoDesign with BMS in Cirkit Designer

Introduction

A Battery Management System (BMS) is an electronic system designed to monitor and manage rechargeable batteries. It ensures the safe operation of the battery by monitoring its state, calculating secondary data (such as charge and discharge rates), and controlling its environment. The BMS plays a critical role in optimizing battery performance, extending its lifespan, and preventing hazardous conditions such as overcharging, over-discharging, or overheating.

Explore Projects Built with BMS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
18650 Li-ion Battery Pack with BMS for 5V Power Supply
Image of battary: A project utilizing BMS in a practical application
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Li-ion Battery Management and Monitoring System with Voltage Regulation and Relay Control
Image of Portable Inverter: A project utilizing BMS in a practical application
This is a power management system with a series-connected battery pack managed by a BMS, providing regulated power to a microcontroller and a fan. It includes voltage and current sensing, a relay for load control, and a step-up converter for an external power source.
Cirkit Designer LogoOpen Project in Cirkit Designer
18650 Li-ion Battery-Powered BMS with Boost Converter and 5V Adapter
Image of dog: A project utilizing BMS in a practical application
This circuit consists of three 18650 Li-ion batteries connected in parallel to a Battery Management System (BMS), which ensures safe charging and discharging of the batteries. The BMS output is connected to a 5V adapter and an XL6009E1 Boost Converter, indicating that the circuit is designed to provide a regulated power supply, likely stepping up the voltage to a required level for downstream electronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing BMS in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BMS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of battary: A project utilizing BMS in a practical application
18650 Li-ion Battery Pack with BMS for 5V Power Supply
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Portable Inverter: A project utilizing BMS in a practical application
Li-ion Battery Management and Monitoring System with Voltage Regulation and Relay Control
This is a power management system with a series-connected battery pack managed by a BMS, providing regulated power to a microcontroller and a fan. It includes voltage and current sensing, a relay for load control, and a step-up converter for an external power source.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dog: A project utilizing BMS in a practical application
18650 Li-ion Battery-Powered BMS with Boost Converter and 5V Adapter
This circuit consists of three 18650 Li-ion batteries connected in parallel to a Battery Management System (BMS), which ensures safe charging and discharging of the batteries. The BMS output is connected to a 5V adapter and an XL6009E1 Boost Converter, indicating that the circuit is designed to provide a regulated power supply, likely stepping up the voltage to a required level for downstream electronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing BMS in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Electric vehicles (EVs) and hybrid electric vehicles (HEVs)
  • Renewable energy storage systems (e.g., solar and wind energy)
  • Consumer electronics (e.g., laptops, smartphones, and power banks)
  • Uninterruptible Power Supplies (UPS)
  • Industrial and medical equipment requiring reliable battery operation

Technical Specifications

Key Technical Details

Parameter Value/Range
Input Voltage Range 3.7V to 60V (varies by model)
Supported Battery Types Lithium-ion, LiFePO4, Lead-acid
Maximum Charge Current 5A to 100A (model-dependent)
Overcharge Protection Configurable (e.g., 4.2V per cell)
Over-discharge Protection Configurable (e.g., 2.5V per cell)
Balancing Current 50mA to 200mA
Communication Protocols I2C, UART, CAN (varies by model)
Operating Temperature -20°C to 60°C

Pin Configuration and Descriptions

Pin Name Description
B+ Battery positive terminal connection
B- Battery negative terminal connection
P+ Positive terminal for load/charger
P- Negative terminal for load/charger
C+ Charger positive terminal (if separate from P+)
C- Charger negative terminal (if separate from P-)
Balance Pins Individual cell connections for voltage monitoring and balancing
COMM Communication interface (e.g., I2C, UART, or CAN) for data exchange
TEMP Temperature sensor input for thermal monitoring

Usage Instructions

How to Use the BMS in a Circuit

  1. Connect the Battery Pack:

    • Connect the B+ and B- terminals of the BMS to the positive and negative terminals of the battery pack, respectively.
    • For multi-cell batteries, connect the balance pins to the corresponding cell terminals.
  2. Connect the Load and Charger:

    • Attach the load to the P+ and P- terminals.
    • Connect the charger to the C+ and C- terminals (if separate from P+ and P-).
  3. Monitor and Configure:

    • Use the communication interface (e.g., I2C or UART) to monitor battery parameters such as voltage, current, and temperature.
    • Configure protection thresholds (e.g., overcharge and over-discharge limits) as needed.
  4. Power On:

    • Ensure all connections are secure and power on the system. The BMS will automatically manage the battery's operation.

Important Considerations and Best Practices

  • Cell Balancing: Ensure the BMS supports cell balancing for multi-cell batteries to maintain uniform voltage across all cells.
  • Thermal Management: Use a temperature sensor to monitor the battery's temperature and prevent overheating.
  • Voltage Compatibility: Verify that the BMS's voltage range matches the battery pack's specifications.
  • Avoid Short Circuits: Double-check all connections to prevent short circuits, which can damage the BMS and battery.
  • Firmware Updates: If the BMS supports firmware updates, keep it updated to ensure optimal performance and safety.

Example: Using a BMS with Arduino UNO

Below is an example of interfacing a BMS with an Arduino UNO to monitor battery voltage via I2C communication.

#include <Wire.h> // Include the Wire library for I2C communication

#define BMS_I2C_ADDRESS 0x10 // Replace with your BMS's I2C address

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging
  Serial.println("BMS Monitoring System Initialized");
}

void loop() {
  Wire.beginTransmission(BMS_I2C_ADDRESS); // Start communication with BMS
  Wire.write(0x01); // Request voltage data (register address may vary)
  Wire.endTransmission();

  Wire.requestFrom(BMS_I2C_ADDRESS, 2); // Request 2 bytes of data
  if (Wire.available() == 2) {
    int voltage = Wire.read() << 8 | Wire.read(); // Combine two bytes into one value
    Serial.print("Battery Voltage: ");
    Serial.print(voltage / 1000.0); // Convert millivolts to volts
    Serial.println(" V");
  } else {
    Serial.println("Failed to read data from BMS");
  }

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. BMS Not Powering On:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify all connections and ensure the battery pack's voltage is within the BMS's operating range.
  2. Overheating:

    • Cause: Excessive current draw or poor thermal management.
    • Solution: Reduce the load current and ensure proper ventilation or heat dissipation.
  3. Unbalanced Cells:

    • Cause: Faulty balance connections or a BMS without cell balancing.
    • Solution: Check balance connections and use a BMS with active cell balancing.
  4. Communication Failure:

    • Cause: Incorrect I2C address or wiring.
    • Solution: Verify the BMS's I2C address and ensure proper SDA/SCL connections.

FAQs

  • Can I use a BMS with different battery chemistries? Yes, but ensure the BMS is compatible with the specific chemistry (e.g., Li-ion, LiFePO4).

  • What happens if I exceed the BMS's current rating? The BMS will trigger overcurrent protection and disconnect the load to prevent damage.

  • Do I need a separate charger for the battery pack? Most BMS units require an external charger. Ensure the charger is compatible with the battery chemistry and voltage.

  • Can I bypass the BMS for higher current loads? Bypassing the BMS is not recommended as it compromises safety and protection features.
