How to Use ir sensor : Examples, Pinouts, and Specs

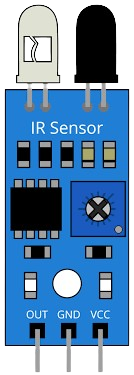

Image of ir sensor
Cirkit Designer LogoDesign with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor detects infrared radiation, which is invisible to the human eye but can be emitted by objects as heat or light. IR sensors are widely used in various applications, including proximity sensing, motion detection, and remote control systems. These sensors are versatile and can be used in both analog and digital circuits, making them a popular choice for hobbyists and professionals alike.

Common applications of IR sensors include:

  • Obstacle detection in robotics
  • Line-following robots
  • Motion detection for security systems
  • Remote control signal reception
  • Automatic door systems

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based IR Sensor Array with LED Indicators
Image of mixed: A project utilizing ir sensor  in a practical application
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing ir sensor  in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Dual IR Sensor Interface
Image of Person in and out monitoring: A project utilizing ir sensor  in a practical application
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Sensor Motion Detector
Image of ir: A project utilizing ir sensor  in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mixed: A project utilizing ir sensor  in a practical application
Arduino-Based IR Sensor Array with LED Indicators
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing ir sensor  in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Person in and out monitoring: A project utilizing ir sensor  in a practical application
ESP32-Based Dual IR Sensor Interface
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir: A project utilizing ir sensor  in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of a typical IR sensor module:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2cm to 30cm (varies by model)
Output Type Digital (High/Low) or Analog
Wavelength 760nm to 1100nm (infrared range)
Response Time < 2ms
Operating Temperature -25°C to 85°C

Pin Configuration

The IR sensor module typically has three pins. Below is the pinout description:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground connection
3 OUT Output pin (Digital or Analog, depending on the model)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
  2. Connect the Output: Attach the OUT pin to a microcontroller (e.g., Arduino) or directly to an LED or buzzer for basic testing.
  3. Adjust Sensitivity: If your IR sensor module has a potentiometer, adjust it to set the detection range.
  4. Test the Sensor: Place an object within the detection range and observe the output signal. The OUT pin will typically go HIGH (or LOW, depending on the module) when an object is detected.

Important Considerations and Best Practices

  • Ambient Light Interference: IR sensors can be affected by sunlight or other strong light sources. Use them in controlled lighting conditions or shield the sensor.
  • Reflective Surfaces: Highly reflective surfaces may cause inaccurate readings. Test the sensor with the intended materials.
  • Power Supply: Ensure a stable power supply to avoid erratic behavior.
  • Distance Calibration: Adjust the potentiometer (if available) to fine-tune the detection range for your application.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to use an IR sensor with an Arduino UNO to detect an object and turn on an LED:

// Define pin connections
const int irSensorPin = 2;  // IR sensor output connected to digital pin 2
const int ledPin = 13;      // Built-in LED on Arduino

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);          // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == HIGH) {  // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");  // Print message to serial monitor
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
    Serial.println("No object detected.");  // Print message to serial monitor
  }

  delay(100);  // Small delay to stabilize readings
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The sensor is not detecting objects:

    • Ensure the sensor is powered correctly (check VCC and GND connections).
    • Verify that the object is within the detection range.
    • Adjust the potentiometer to increase sensitivity.
  2. False triggers or erratic behavior:

    • Check for ambient light interference and shield the sensor if necessary.
    • Ensure a stable power supply to the sensor.
  3. Output signal is not working:

    • Confirm the OUT pin is connected to the correct microcontroller pin.
    • Test the sensor with a multimeter to verify the output voltage.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent objects like glass, as they allow infrared light to pass through. Use a different type of sensor for such applications.

Q: How do I increase the detection range?
A: Adjust the potentiometer on the sensor module (if available). Note that increasing the range may reduce accuracy.

Q: Can I use the IR sensor outdoors?
A: While possible, outdoor use may lead to interference from sunlight. Consider using an IR sensor with ambient light filtering for better performance.

Q: What is the difference between analog and digital IR sensors?
A: Analog IR sensors provide a continuous voltage output proportional to the distance of the object, while digital IR sensors output a HIGH or LOW signal based on a threshold distance.

This concludes the IR sensor documentation.
