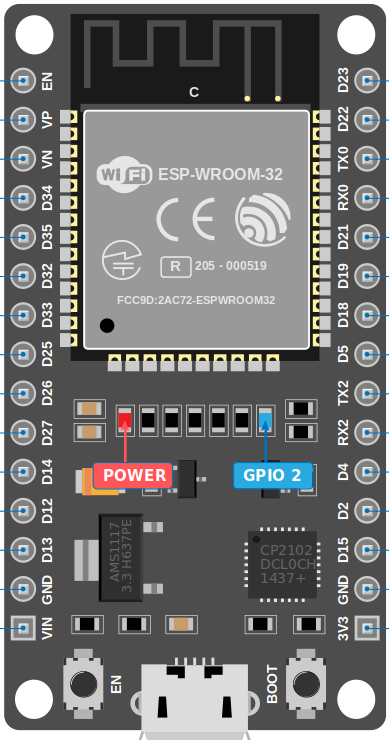

Image of ESP32 Devkit V1
Cirkit Designer LogoDesign with ESP32 Devkit V1 in Cirkit Designer

Introduction

The ESP32 Devkit V1, manufactured by Espressif, is a versatile development board built around the powerful ESP32 chip. It features integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) projects, smart home devices, wearable electronics, and wireless communication applications. Its compact design and robust performance make it suitable for both hobbyists and professional developers.

Explore Projects Built with ESP32 Devkit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 Devkit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing ESP32 Devkit V1 in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 Devkit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
Image of Health Monitoring System: A project utilizing ESP32 Devkit V1 in a practical application
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 Devkit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mark: A project utilizing ESP32 Devkit V1 in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp32_monochromeimage: A project utilizing ESP32 Devkit V1 in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 Devkit V1 in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Health Monitoring System: A project utilizing ESP32 Devkit V1 in a practical application
ESP32-Based Smart Weather and Health Monitoring System with Wi-Fi Connectivity
This circuit uses an ESP32 Devkit V1 microcontroller to interface with multiple sensors, including a DHT11 temperature and humidity sensor, a DS18B20 temperature sensor, and a MAX30102 pulse oximeter and heart-rate sensor. The ESP32 reads data from these sensors and can process or transmit the information for further use.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and drones
  • Data logging and remote monitoring
  • Bluetooth-enabled applications

Technical Specifications

The ESP32 Devkit V1 is equipped with a dual-core processor and a rich set of peripherals. Below are its key technical details:

Key Specifications

Parameter Value
Microcontroller ESP32 (dual-core Tensilica Xtensa LX6)
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 4.2 and BLE
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30 (varies by board version)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption ~160 mA (active), ~10 µA (deep sleep)

Pin Configuration

The ESP32 Devkit V1 has a 30-pin layout. Below is the pin configuration and description:

Pin Number Pin Name Description
1 EN Enable pin (active high)
2 IO1 (TX0) UART0 Transmit (TX)
3 IO3 (RX0) UART0 Receive (RX)
4 IO4 GPIO4, PWM, ADC
5 IO5 GPIO5, PWM, ADC
6 GND Ground
7 IO18 GPIO18, SPI_CLK
8 IO19 GPIO19, SPI_MISO
9 IO21 GPIO21, I2C SDA
10 IO22 GPIO22, I2C SCL
... ... ... (refer to datasheet for full list)

Note: The pinout may vary slightly depending on the specific version of the ESP32 Devkit V1. Always refer to the official datasheet for precise details.

Usage Instructions

How to Use the ESP32 Devkit V1 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin for external power.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board support package.
    • Select "ESP32 Dev Module" from the Tools > Board menu.
    • Connect the board to your computer and select the appropriate COM port.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).
  4. Uploading Code:

    • Write your code in the Arduino IDE or another supported environment.
    • Click the "Upload" button to flash the code to the ESP32.

Example Code: Blinking an LED

Below is an example of how to blink an LED connected to GPIO2:

// This example blinks an LED connected to GPIO2 on the ESP32 Devkit V1.
// Ensure the LED's anode is connected to GPIO2 and the cathode to GND.

#define LED_PIN 2  // Define the GPIO pin for the LED

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

Important Considerations

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V devices directly to its GPIO pins without level shifters.
  • Power Supply: Ensure a stable power supply to avoid unexpected resets or performance issues.
  • Deep Sleep Mode: Use deep sleep mode to significantly reduce power consumption in battery-powered applications.

Troubleshooting and FAQs

Common Issues

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver (e.g., CP2102 or CH340, depending on the board).
  2. Code upload fails:

    • Check that the correct COM port and board type are selected in the Arduino IDE.
    • Press and hold the "BOOT" button on the board while uploading the code.
  3. Wi-Fi connection issues:

    • Verify the SSID and password in your code.
    • Ensure the Wi-Fi network operates on the 2.4 GHz band (ESP32 does not support 5 GHz).
  4. GPIO pin not working:

    • Confirm the pin is not being used by another peripheral (e.g., ADC, SPI).
    • Check for short circuits or incorrect wiring.

FAQs

Q: Can the ESP32 Devkit V1 be powered by a battery?
A: Yes, you can power the board using a 3.7V LiPo battery connected to the 3V3 pin or a 5V source connected to the VIN pin.

Q: How do I reset the ESP32?
A: Press the "EN" button on the board to reset the ESP32.

Q: Can I use the ESP32 Devkit V1 with MicroPython?
A: Yes, the ESP32 supports MicroPython. You can flash the MicroPython firmware to the board and use it for development.

Q: What is the maximum current draw of the ESP32?
A: The ESP32 can draw up to 500 mA during peak operation. Ensure your power supply can handle this.

Q: How do I use the Bluetooth functionality?
A: The ESP32 supports both Bluetooth Classic and BLE. Use the Arduino IDE or ESP-IDF to write Bluetooth applications.

By following this documentation, you can effectively utilize the ESP32 Devkit V1 for a wide range of projects and applications.
