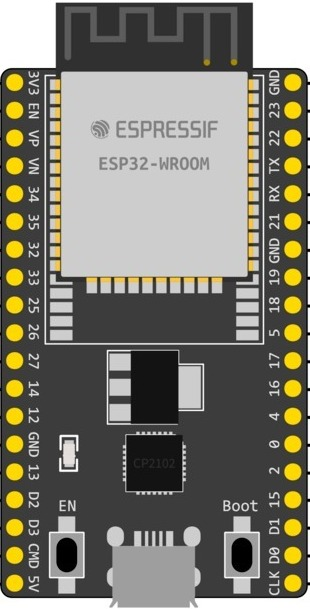

The ESP32 Wroom Dev Kit is a versatile microcontroller development board powered by the ESP32 chip. It features built-in Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. With its dual-core processor, low power consumption, and extensive GPIO options, the ESP32 Wroom Dev Kit is suitable for a wide range of projects, from home automation to wearable devices.
Explore Projects Built with ESP 32 Wroom Dev Kit
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
This circuit integrates an ESP32 Wroom Dev Kit and an Arduino UNO, connected via their TXD/RXD pins for serial communication and sharing a common ground. Both microcontrollers are programmed with basic setup and loop functions, indicating a potential for further development of communication or control tasks.
This circuit features an ESP32 Wroom Dev Kit microcontroller interfaced with an MCP23017 I/O expansion board via I2C communication, utilizing GPIO 21 and GPIO 22 for SDA and SCL lines, respectively. A vibration motor is controlled by an NPN transistor acting as a switch, with a diode for back EMF protection and a resistor to limit base current. The ESP32 can control the motor by sending signals to the MCP23017, which then interfaces with the transistor to turn the motor on or off.
This circuit integrates a Raspberry Pi Pico and an ESP32 Wroom Dev Kit, interconnected through various GPIO pins and resistors, to enable communication and control between the two microcontrollers. The ESP32 is powered by a 3.3V supply and shares ground with the Raspberry Pi Pico, while specific GPIO pins are used for data exchange. The provided code sketches for the Raspberry Pi Pico suggest a framework for further development of the system's functionality.
Power Consumption: Ultra-low power modes available
Operating Temperature: -40°C to +85°C
Pin Configuration and Descriptions
The ESP32 Wroom Dev Kit has a variety of pins for different functionalities. Below is a summary of the pin configuration:
Pin
Function
Description
VIN
Power Input
Accepts 7-12V input to power the board.
3V3
3.3V Output
Provides 3.3V output for external components.
GND
Ground
Ground connection.
EN
Enable
Resets the chip when pulled low.
GPIO0
Boot Mode Selection
Used to enter bootloader mode.
GPIO2
General Purpose I/O
Can be used for ADC, PWM, or other functions.
GPIO16
General Purpose I/O
Can be used for UART, SPI, or other functions.
TXD0
UART0 Transmit
UART0 TX pin for serial communication.
RXD0
UART0 Receive
UART0 RX pin for serial communication.
ADC1
Analog Input
12-bit ADC input for analog signals.
DAC1
Digital-to-Analog Converter
Outputs analog signals.
IO34
Input Only
GPIO pin that supports input-only functionality.
Note: Some GPIO pins have specific restrictions or are used internally by the ESP32. Refer to the datasheet for detailed pin multiplexing information.
Usage Instructions
How to Use the ESP32 Wroom Dev Kit in a Circuit
Powering the Board:
Use a micro-USB cable to power the board via the USB port.
Alternatively, supply 7-12V to the VIN pin or 3.3V to the 3V3 pin.
Connecting to Peripherals:
Use the GPIO pins for connecting sensors, actuators, or other peripherals.
Ensure the voltage levels of connected devices are compatible with the 3.3V logic of the ESP32.
Programming the Board:
Install the Arduino IDE or ESP-IDF (Espressif IoT Development Framework).
Add the ESP32 board support package to the Arduino IDE.
Connect the board to your computer via USB and select the appropriate COM port.
Uploading Code:
Write your code in the Arduino IDE or ESP-IDF.
Click the upload button to flash the code to the ESP32.
Important Considerations and Best Practices
Avoid connecting 5V logic devices directly to the GPIO pins; use level shifters if needed.
Use pull-up or pull-down resistors for GPIO pins that require stable logic levels.
Be cautious of GPIO pins that are used during boot (e.g., GPIO0, GPIO2) to avoid boot issues.
Use decoupling capacitors near power pins to ensure stable operation.
Example Code for Arduino IDE
The following example demonstrates how to connect the ESP32 to a Wi-Fi network and print the IP address:
#include <WiFi.h> // Include the Wi-Fi library
const char* ssid = "Your_SSID"; // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password
void setup() {
Serial.begin(115200); // Initialize serial communication at 115200 baud
delay(1000); // Wait for a second to stabilize the serial monitor
Serial.println("Connecting to Wi-Fi...");
WiFi.begin(ssid, password); // Start connecting to the Wi-Fi network
while (WiFi.status() != WL_CONNECTED) {
delay(500); // Wait for the connection to establish
Serial.print(".");
}
Serial.println("\nWi-Fi connected!");
Serial.print("IP Address: ");
Serial.println(WiFi.localIP()); // Print the assigned IP address
}
void loop() {
// Add your main code here
}
Tip: Replace Your_SSID and Your_Password with your Wi-Fi credentials.
Troubleshooting and FAQs
Common Issues and Solutions
The board is not detected by the computer:
Ensure the USB cable is functional and supports data transfer.
Install the correct USB-to-serial driver for your operating system.
Code upload fails:
Check that the correct COM port and board type are selected in the Arduino IDE.
Hold the BOOT button while uploading the code to enter bootloader mode.
Wi-Fi connection issues:
Verify the SSID and password are correct.
Ensure the Wi-Fi network is within range and not using unsupported security protocols.
GPIO pin not working as expected:
Check if the pin is used internally by the ESP32 (e.g., during boot).
Verify the pin configuration in your code.
FAQs
Can I power the ESP32 Wroom Dev Kit with a battery?
Yes, you can use a LiPo battery with a voltage regulator or connect directly to the VIN pin if the voltage is within 7-12V.
What is the maximum current draw of the ESP32?
The ESP32 can draw up to 240 mA during peak operation, so ensure your power supply can handle this.
Can I use the ESP32 with 5V sensors?
Yes, but you will need a level shifter to convert the 5V signals to 3.3V.
How do I reset the board?
Press the EN (Enable) button to reset the ESP32.
By following this documentation, you can effectively use the ESP32 Wroom Dev Kit for your projects and troubleshoot common issues with ease.
