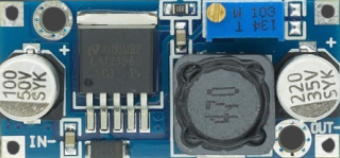

Image of step down 6v
Cirkit Designer LogoDesign with step down 6v in Cirkit Designer

Introduction

A step-down converter, also known as a buck converter, is an electronic component designed to reduce a higher input voltage to a stable 6V output. This component is widely used in applications where devices require a lower voltage than the available power source. It ensures efficient power delivery while minimizing energy loss, making it ideal for battery-powered systems, microcontrollers, and low-voltage devices.

Explore Projects Built with step down 6v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing step down 6v in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing step down 6v in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing step down 6v in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing step down 6v in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with step down 6v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of test 1 ih: A project utilizing step down 6v in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing step down 6v in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing step down 6v in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of solar system router ups: A project utilizing step down 6v in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Powering microcontrollers like Arduino, Raspberry Pi, or ESP32.
  • Supplying 6V to sensors, motors, or other low-voltage devices.
  • Converting 12V or 24V from batteries or power supplies to 6V for portable electronics.
  • Automotive applications where 6V is required from a 12V car battery.

Technical Specifications

Below are the key technical details for the Step Down 6V converter:

Parameter Value
Input Voltage Range 7V to 24V
Output Voltage 6V (fixed)
Output Current Up to 2A
Efficiency Up to 90% (depending on load)
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions 25mm x 20mm x 10mm

Pin Configuration:

The Step Down 6V converter typically has three pins or terminals:

Pin Name Description
1 VIN Input voltage (connect to power source, e.g., 12V)
2 GND Ground (common ground for input and output)
3 VOUT Output voltage (provides a stable 6V output)

Usage Instructions

How to Use the Step Down 6V Converter in a Circuit:

  1. Connect the Input Voltage (VIN):

    • Attach the positive terminal of your power source (e.g., 12V battery) to the VIN pin.
    • Ensure the input voltage is within the specified range (7V to 24V).
  2. Connect the Ground (GND):

    • Connect the ground terminal of your power source to the GND pin of the converter.
    • Ensure all devices in the circuit share a common ground.
  3. Connect the Output Voltage (VOUT):

    • Attach the device requiring 6V to the VOUT pin.
    • Verify that the device's current requirements do not exceed the converter's maximum output current (2A).
  4. Power On:

    • Turn on the power source and measure the output voltage using a multimeter to confirm it is 6V.

Important Considerations:

  • Heat Dissipation: If the converter operates near its maximum current rating, ensure proper ventilation or add a heatsink to prevent overheating.
  • Input Voltage: Avoid exceeding the maximum input voltage (24V) to prevent damage to the converter.
  • Load Requirements: Ensure the connected device does not draw more current than the converter's rated output (2A).

Example: Using the Step Down 6V with an Arduino UNO

The Step Down 6V converter can be used to power an Arduino UNO by providing a stable 6V to its VIN pin. Below is an example circuit and code to blink an LED:

Circuit Connections:

  • Connect a 12V power source to the VIN pin of the Step Down 6V converter.
  • Connect the GND pin of the converter to the Arduino's GND pin.
  • Connect the VOUT pin of the converter to the Arduino's VIN pin.
  • Connect an LED to pin 13 of the Arduino with a 220-ohm resistor in series.

Arduino Code:

// Simple LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues:

  1. No Output Voltage:

    • Cause: Input voltage is below the minimum required (7V).
    • Solution: Verify the input voltage with a multimeter and ensure it is within the specified range.
  2. Overheating:

    • Cause: Excessive current draw or poor ventilation.
    • Solution: Reduce the load or add a heatsink to the converter.
  3. Output Voltage Not Stable:

    • Cause: Input voltage fluctuations or insufficient filtering.
    • Solution: Add a capacitor (e.g., 100µF) across the input and output terminals.
  4. Device Not Powering On:

    • Cause: Incorrect wiring or polarity.
    • Solution: Double-check all connections and ensure correct polarity.

FAQs:

Q1: Can I use this converter to power a 6V DC motor?
A1: Yes, as long as the motor's current draw does not exceed 2A.

Q2: What happens if I connect an input voltage higher than 24V?
A2: The converter may be damaged. Always ensure the input voltage is within the specified range.

Q3: Can I use this converter with a solar panel?
A3: Yes, but ensure the solar panel's output voltage and current are within the converter's input range.

Q4: Is the output voltage adjustable?
A4: No, this converter provides a fixed 6V output.

By following this documentation, you can effectively integrate the Step Down 6V converter into your projects and troubleshoot common issues.
