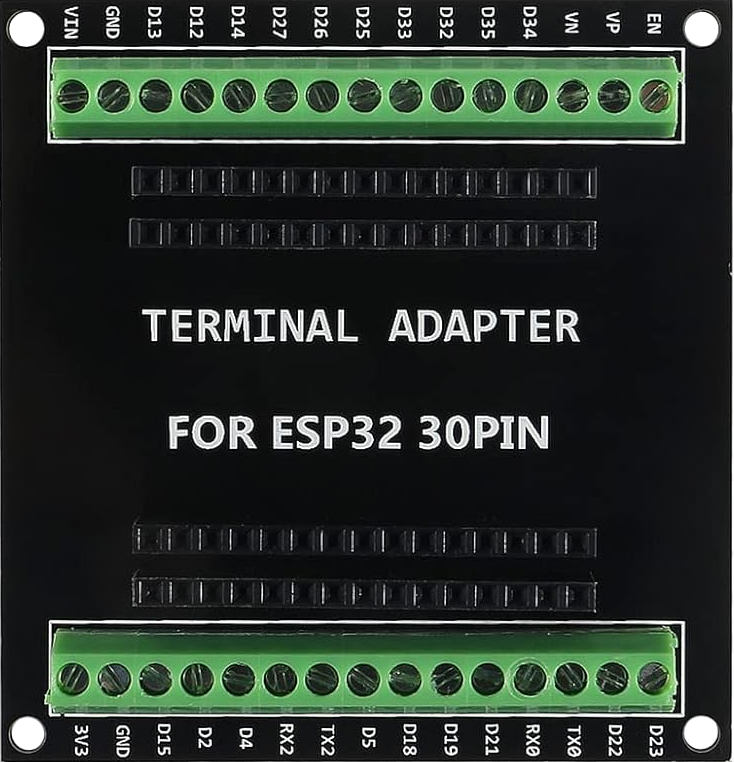

How to Use Terminal Adapter for ESP32 30 Pin: Examples, Pinouts, and Specs

The Terminal Adapter for ESP32 30 Pin is a connector board designed to simplify prototyping and development with the ESP32 microcontroller. It provides easy access to all 30 pins of the ESP32, allowing for quick and reliable connections to external components, sensors, and modules. This adapter is particularly useful for breadboard-based projects, as it eliminates the need for complex wiring and ensures a stable connection.

• Prototyping IoT devices with the ESP32 microcontroller
• Connecting sensors, actuators, and other peripherals to the ESP32
• Simplifying breadboard-based circuit designs
• Educational projects and rapid prototyping

The Terminal Adapter for ESP32 30 Pin is designed to work seamlessly with the ESP32 microcontroller. Below are its key technical details:

• Compatibility: ESP32 30-pin development boards
• Dimensions: Matches the ESP32 board size for easy alignment
• Pin Access: Breaks out all 30 pins of the ESP32
• Connector Type: Screw terminals for secure wiring
• Material: High-quality PCB with durable screw terminals
• Voltage Range: Supports the ESP32's operating voltage (3.3V logic level)
• Mounting: Breadboard-compatible design

The Terminal Adapter provides access to the following ESP32 pins via screw terminals:

Note: The exact pinout may vary slightly depending on the ESP32 development board model. Always refer to the ESP32 datasheet for detailed pin functions.

1. Attach the ESP32 Board: Align the ESP32 development board with the terminal adapter and insert it into the provided headers.
2. Connect Wires: Use the screw terminals to securely connect wires to the desired pins. Ensure the wires are stripped and properly inserted before tightening the screws.
3. Power the ESP32: Provide power to the ESP32 through the VIN or 3V3 pin, depending on your setup.
4. Connect Peripherals: Attach sensors, actuators, or other modules to the appropriate pins using the screw terminals.

• Voltage Levels: Ensure that all connected components operate at 3.3V logic levels to avoid damaging the ESP32.
• Secure Connections: Tighten the screw terminals firmly to prevent loose connections, which can cause intermittent issues.
• Breadboard Compatibility: If using a breadboard, ensure the terminal adapter is properly aligned and does not short adjacent rows.
• Pin Mapping: Double-check the pin mapping of your ESP32 board to ensure correct connections.

While the Terminal Adapter is designed for the ESP32, it can also be used to interface with an Arduino UNO for certain projects. Below is an example of using the adapter to connect an LED to GPIO pin 2 of the ESP32:

// Example: Blinking an LED connected to GPIO2 via the Terminal Adapter

// Define the GPIO pin for the LED
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Tip: Ensure the LED is connected to GPIO2 via the terminal adapter, with a current-limiting resistor (e.g., 220Ω) in series.

1. Loose Connections:

   • Issue: The ESP32 or connected components are not functioning as expected.
   • Solution: Check all screw terminals and ensure wires are securely fastened.

2. Incorrect Pin Mapping:

   • Issue: The connected peripheral is not responding.
   • Solution: Verify the pin mapping of your ESP32 board and ensure the correct pins are used.

3. Voltage Mismatch:

   • Issue: Components connected to the terminal adapter are not working.
   • Solution: Ensure all components are compatible with the ESP32's 3.3V logic level.

4. Breadboard Short Circuits:

   • Issue: The circuit is not functioning or the ESP32 is overheating.
   • Solution: Check for short circuits on the breadboard and ensure proper alignment of the terminal adapter.

• Q: Can I use this adapter with other microcontrollers?
  A: While designed for the ESP32, the adapter can be used with other microcontrollers that have a similar pinout, but compatibility is not guaranteed.

• Q: Do I need additional tools to use the terminal adapter?
  A: A small screwdriver is required to tighten the screw terminals.

• Q: Can I power the ESP32 through the terminal adapter?
  A: Yes, you can provide power via the VIN or 3V3 pins on the adapter.

By following this documentation, you can effectively use the Terminal Adapter for ESP32 30 Pin to simplify your prototyping and development process.
